74 Rev.B

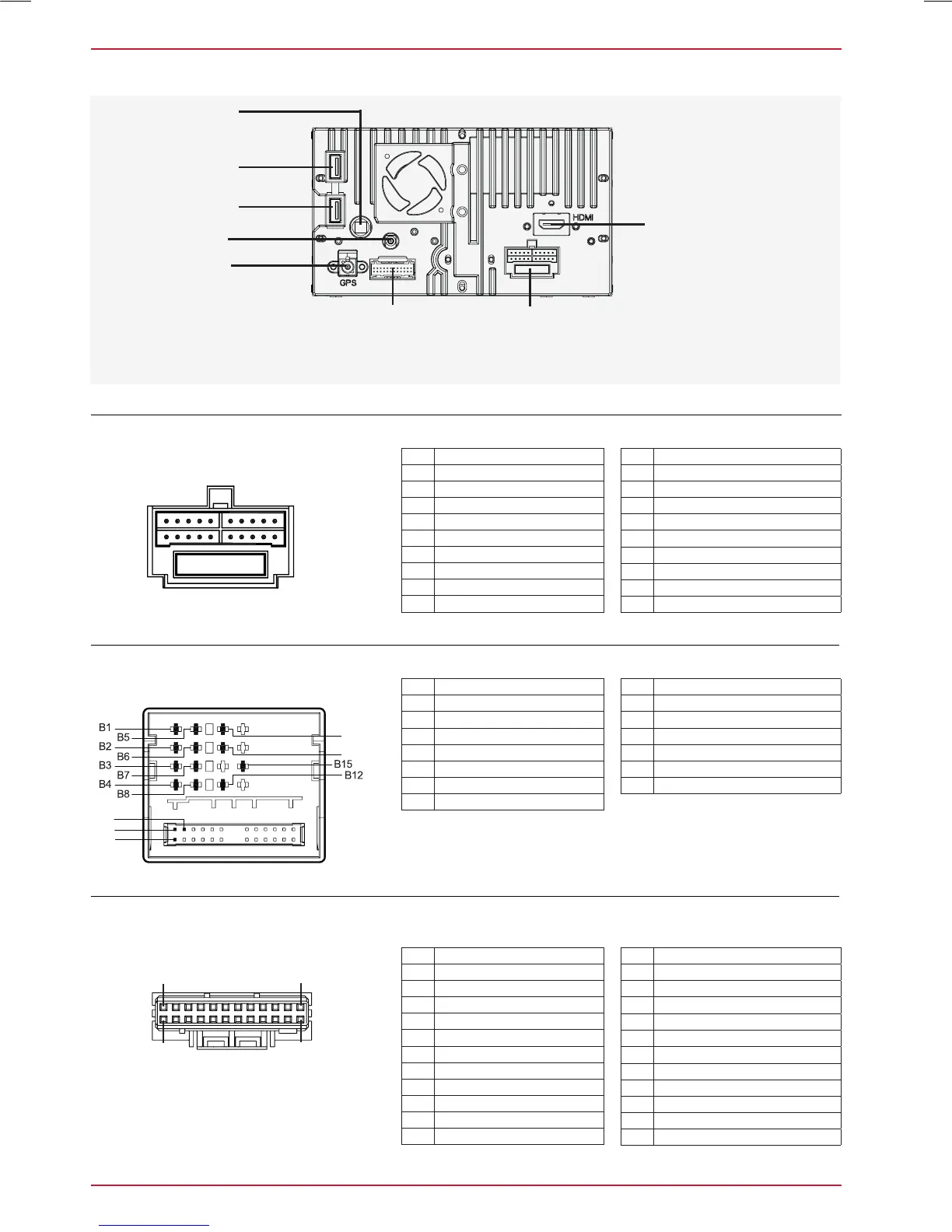

CONNECTION DIAGRAM Z-E2050
Z-E2050
DAB
HDMI
USB 2
USB1:
• Apple MFI
• USB Media Playback, -Smartlink Direct, -Software Updates
USB2:
• Apple MFI
• USB Media Playback, -Smartlink Direct, -Software Updates
A
GPS
UKW/
FM
USB 1
C
C
C24 C2
C23
C1
C1 Rear Monitor Out
C2 N.A.
C3 Camera IN
C4 Video IN
C5 AUX IN L
C6 AUX IN R
C7 Line Out Rear L
C8 Line Out Rear R
C9 Line Out Front L
C10 Line Out Front R
C11 Line Out Sub Woofer
C12 Line Out Sub Woofer
C13 MIC
C14 N.A.
C15 IR/IN
C16 GND
C17 N.A.
C18 Camera +12V (max 300mA)
C19 N.A.
C20 N.A.
C21 N.A.
C22 N.A.
C23 N.A.
C24 N.A.
A
B
A11 N.A.
A12 P. ANT +12V** (Antenna)
A13 P. CNTR +12V** (Amplifier)
A14 Parking
A15 KL 31 / Power GND
A16 KL 30 / Permanent +12V PWR
A17 Speaker Rear Right (-)
A18 Speaker Rear Right (+)
A19 Speaker Front Right (-)
A20 Speaker Front Right (+)
A1 N.A.
A2 Reverse
A3 KL 15 / Switched +12V PWR
A4 Illumination
A5 Analog Wheel KEY 2
A6 Analog Wheel KEY 1
A7 Speaker Rear Left (-)
A8
Speaker Rear Left (+)
A9
Speaker Front Left (-)
A10
Speaker Front Left (+)
B1 Speaker Rear Right (+)
B2 Speaker Front Right (+)
B3 Speaker Front Left (+)
B4 Speaker Rear Left (+)
B5 Speaker Rear Right (-)
B6 Speaker Front Right (-)
B7 Speaker Front Left (-)
B8 Speaker Rear Left (-)
B9 CAN High
B10 CAN Low
B12 GND
B15 B+
B17 AUX-L
B18 AUX-GND
B29 AUX-R
20 PIN CONNECTOR
(DEVICE BACKSIDE)
A1
A11
A10
A20
QUADLOCK II
CONNECTOR
B9
B10
B18
B17
B29
**
300mA max current
24 PIN CONNECTOR
To Next Page
