Zoom F8 - Connection Examples

Connecting mics/other devices to Inputs 1–8
09
F8 Multi Track Field Recorder
Concert recording
• Inputs 1–4: mics for stage performance (XLR connections)
• Inputs 5–6: line inputs for mixer outputs (TRS connections)
• Inputs 7–8: mics for audience sound (XLR connections)
PA mixer
Ambient mics
Vocal mic, etc.
2
3
4
1
6
7
5
8
• Input 1: gun mic for main subject sound (XLR connection)
• Inputs 2–5: pin mics for performers (TRS connections)
• Inputs 6–7: mics for ambient sound (XLR connections)
Ambient
mics
Pin mics
Gun mic
Pin mics
2
3
4
1
6
7
5

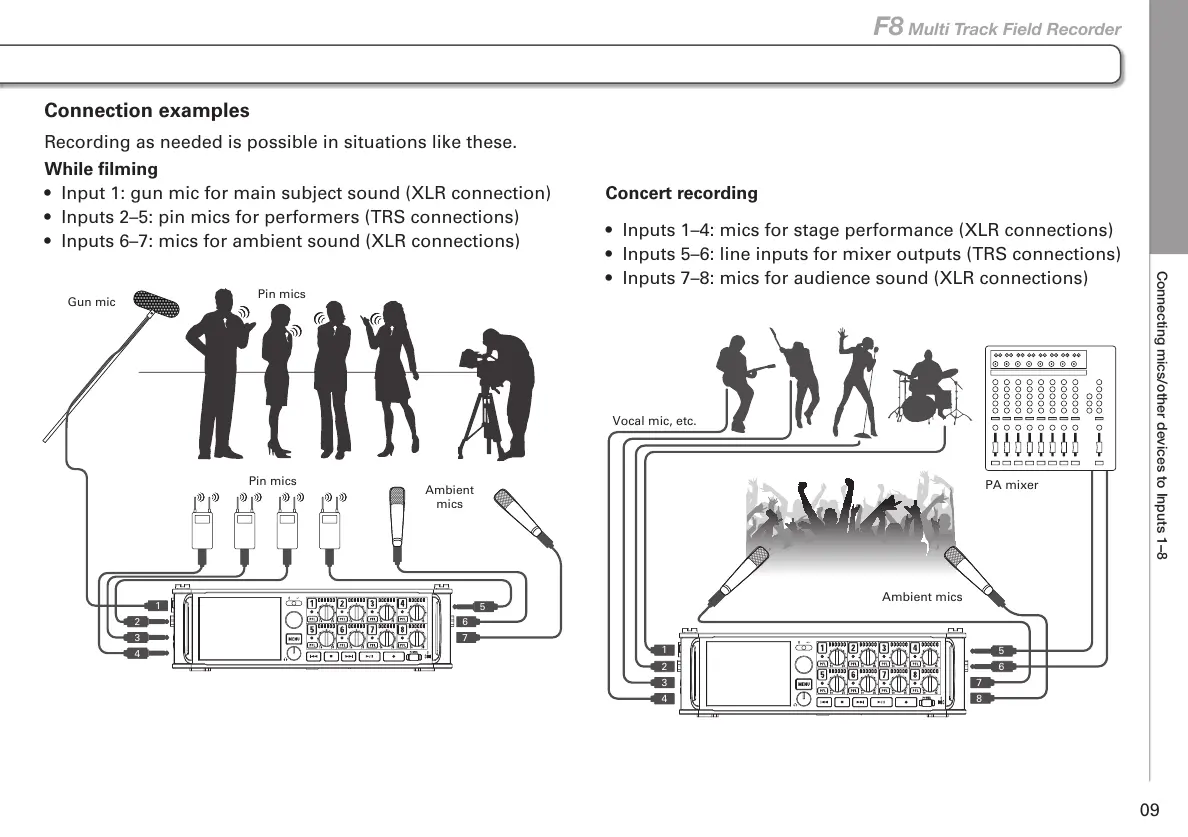

Connection examples
Recording as needed is possible in situations like these.
While filming
