Chapter 8 Broadband
VMG/EMG/AM/DM/GM Series User’s Guide
195
The following table describes the fields in this screen.
If you select ADSL over ATM as the interface type, the following screen appears.

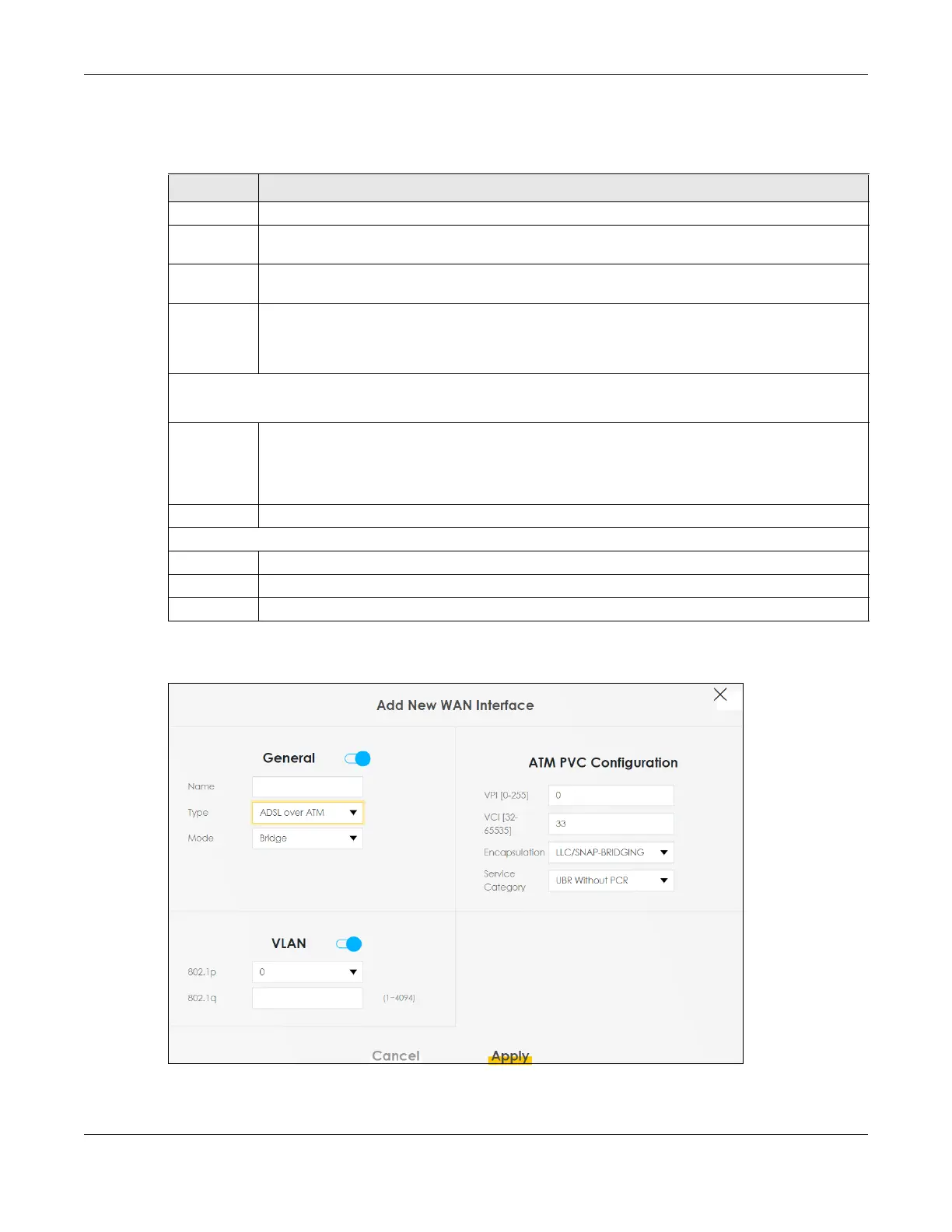

Figure 95 Network Setting > Broadband > Add/Edit New WAN Interface (ADSL over ATM-Bridge Mode)
Table 37 Network Setting > Broadband > Add/Edit New WAN Interface (ADSL/VDSL over PTM or
Ethernet-Bridge Mode)
LABEL DESCRIPTION
General Click this switch to enable or disable the WAN interface.
Name Enter a service name of this WAN interface. You can use up to 15 alphanumeric (0-9, a-z, A-Z) and
special characters except [ " ], [ ` ], [ ' ], [ < ], [ > ], [ ^ ], [ $ ], [ | ], [ & ], or [ ; ]. Spaces are allowed.
Type Select VDSL over PTM or ADSL/VDSL over PTM as the interface that you want to configure. The Zyxel
Device uses the VDSL technology for data transmission over the DSL port.
Mode Select Bridge when your ISP provides you more than one IP address and you want the connected
computers to get individual IP address from ISP’s DHCP server directly. If you select Bridge, you
cannot use routing functions, such as QoS, Firewall, DHCP server and NAT on traffic from the
selected LAN port(s).
VLAN
Click this switch to enable or disable VLAN on this WAN interface.
802.1p IEEE 802.1p defines up to 8 separate traffic types by inserting a tag into a MAC-layer frame that
contains bits to define class of service.
Select the IEEE 802.1p priority level (from 0 to 7) to add to traffic through this connection. The greater
the number, the higher the priority level.
802.1q Enter the VLAN ID number (from 0 to 4094) for traffic through this connection.
MTU
MTU Enter the MTU (Maximum Transfer Unit) size for this traffic.
Cancel Click Cancel to exit this screen without saving.
Apply Click Apply to save your changes.
