Status & Settings Web Page Section 6 Linking Device LD 800DN
198 9ARD000014-600 A
Once a valid user account is provided, the IP Settings screen is displayed, as
shown in Figure 79.

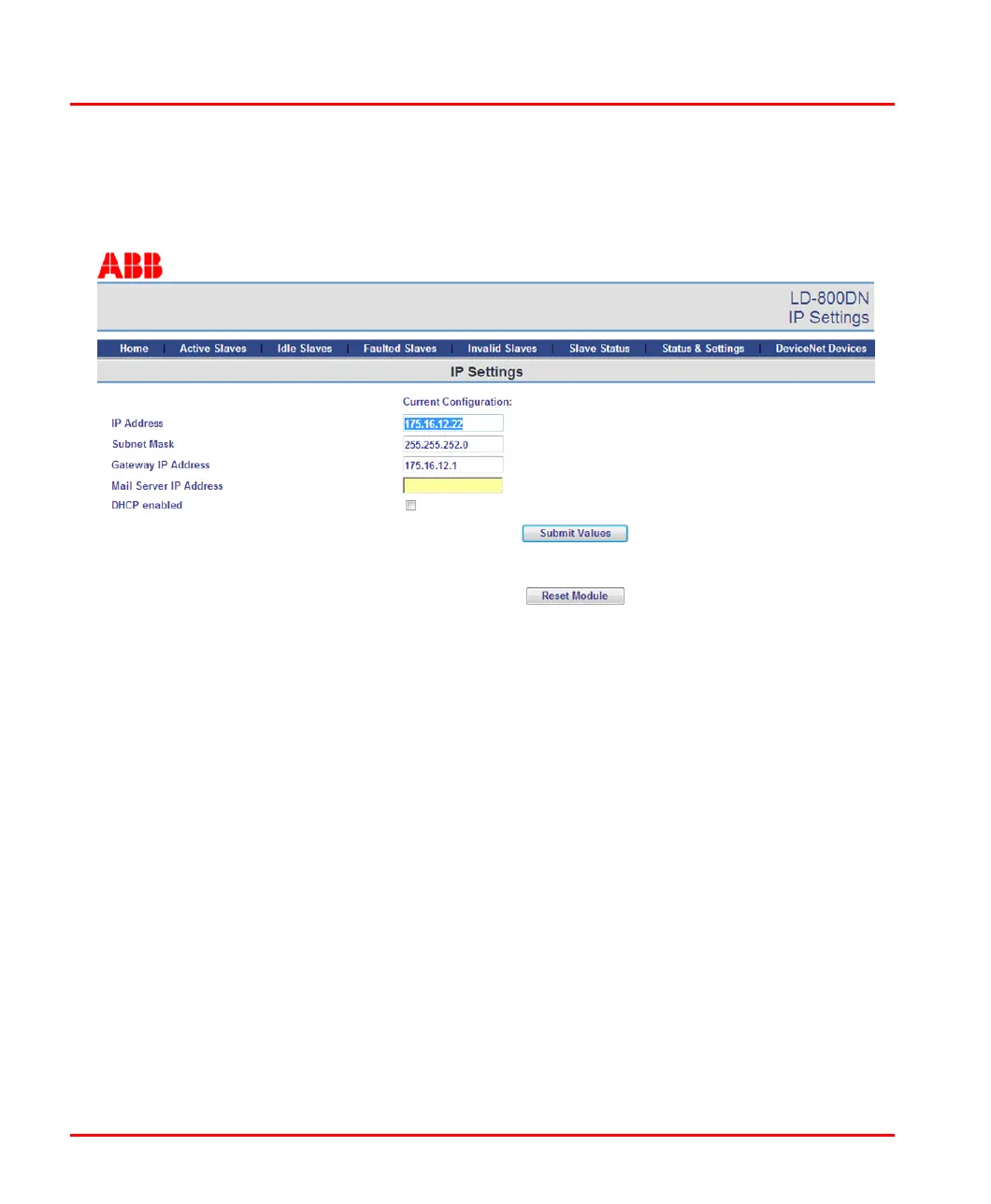

Figure 79. Changing IP Settings
2. Change the following configuration settings in the IP Settings screen:
– Change the address values of IP
Address, Subnet Mask, Gateway IP
Address, Mail Server IP Address
– Select/Clear the DHC
P Enabled check box to enable/disable DHCP
3. Click Submit V
alues to save the configuration changes. On successful storage
of configuration changes, the following message is displayed:
Configuration stored successfully. The IP address switch
must be set to 0000_0000 and the LD 800DN must be reset or
power cycled in order to apply the stored configuration.
