ABB AC 800M

Section 3 Device Import Wizard I/O Settings
9ARD000014-600 A 83
The following is an example for Class 3 connections.
Execute the following steps to create Class 3 connection:
a. Select the Class 3 Connections in the tree view. In the right pane of the
window, Class 3 connections check box is displayed.
b. Select the Class 3 connections check box. The corresponding details are
displayed.

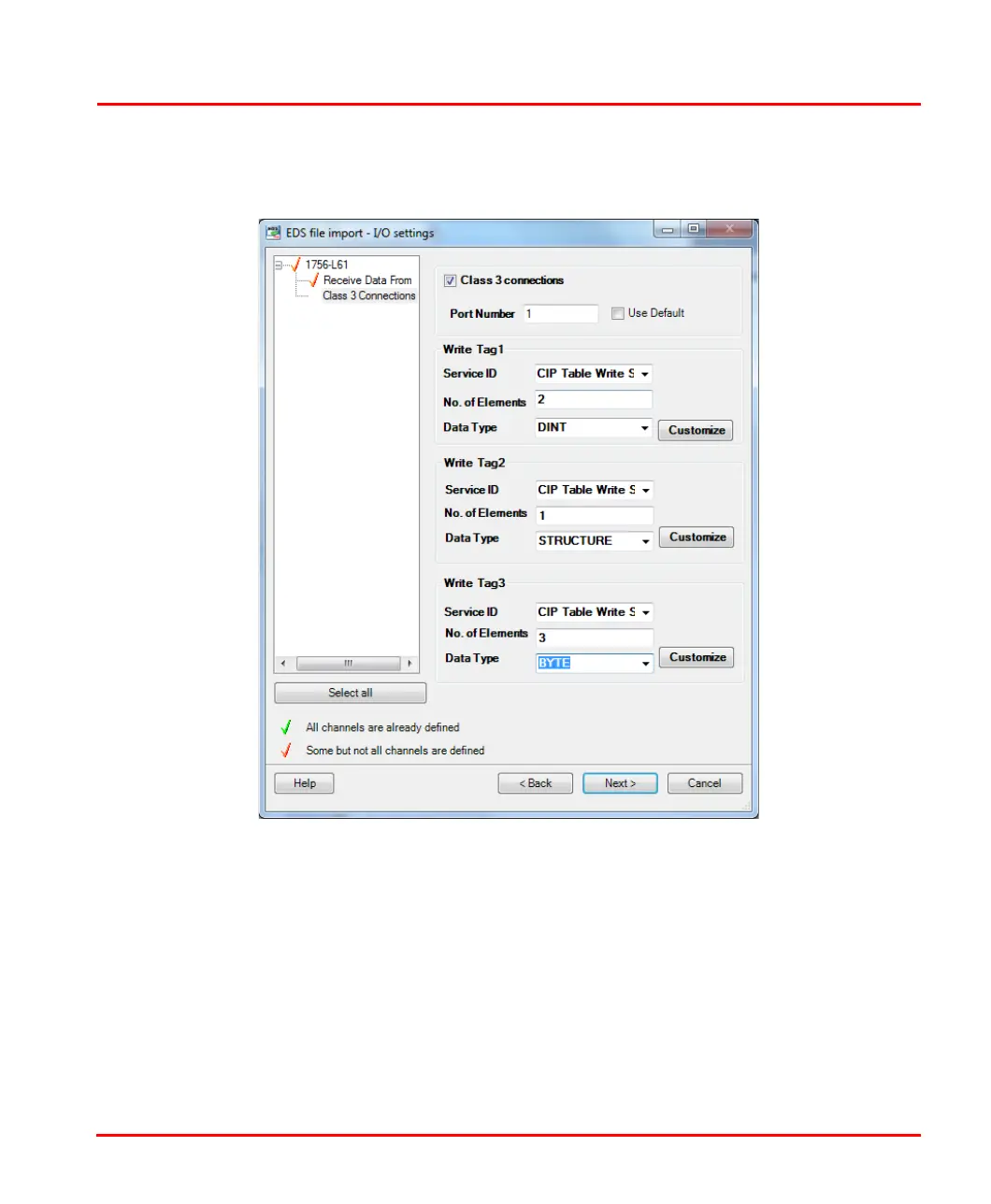

Figure 32. I/O Settings window for Control Logix PLC (Class 3)
