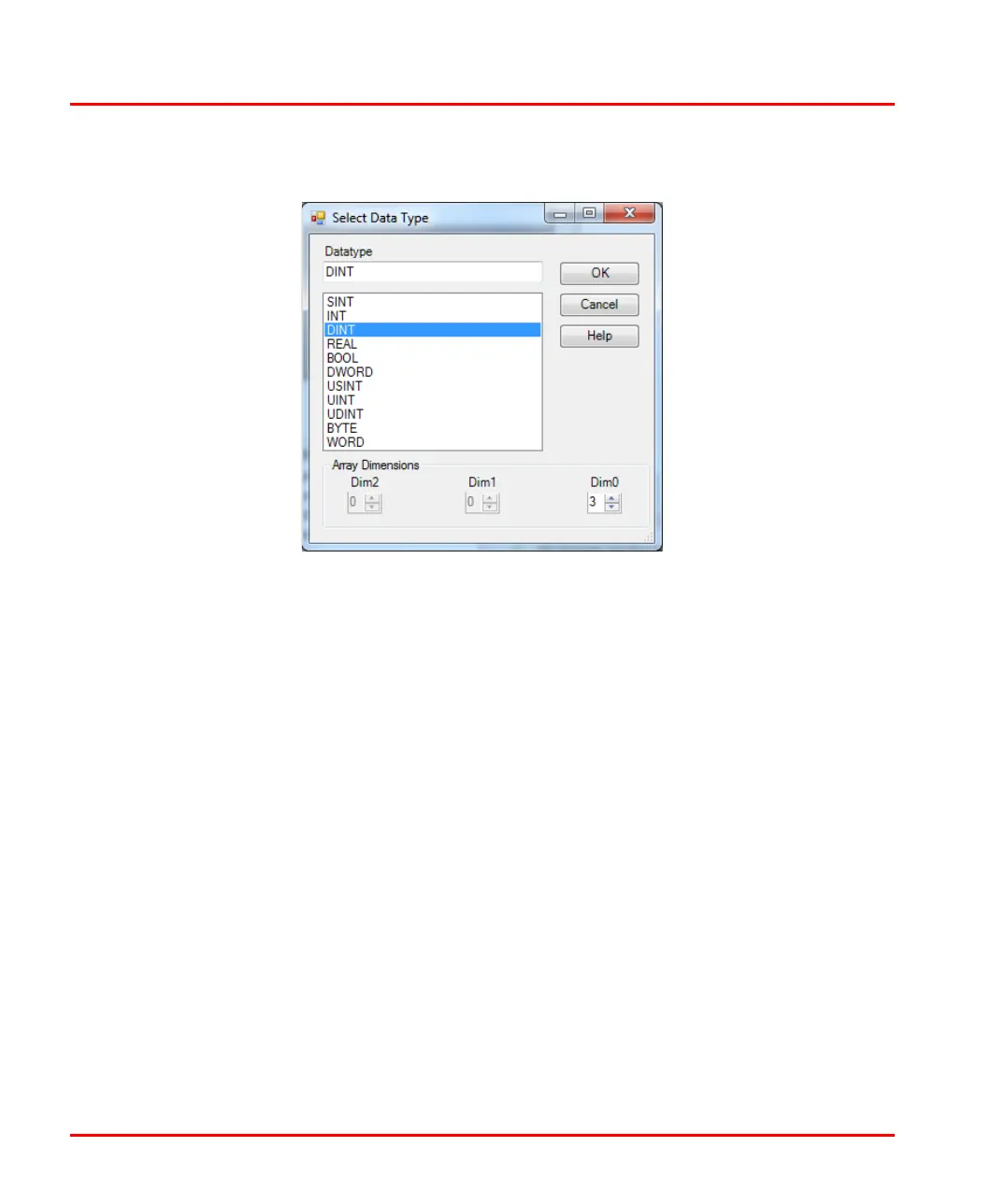

Figure 34. Select Data Type dialog box.
I/O Settings Section 3 Device Import Wizard
86 9ARD000014-600 A
Select the data type listed under Datatype, for example DINT, SINT, REAL, etc.
In Array Dimensions group, click the up and down arrow to select the array of
dimensions for the data type selected as shown in Figure 34.
Click OK to save the changes.
Click Apply and Ok to save the changes in the DataSize dialog box as shown in
Figure 33. The Configured channels window is opened as shown in Figure 35.
