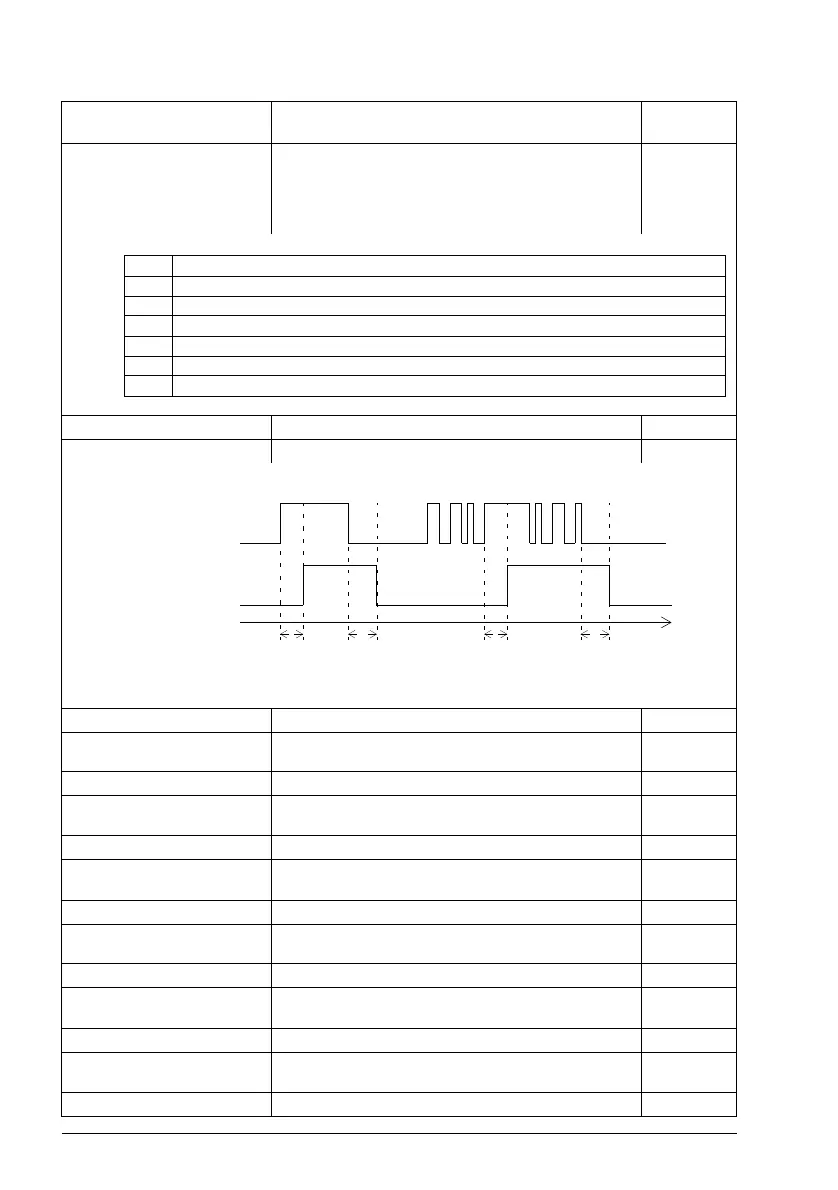

124 Parameters
10.04 DI forced data Defines the forced values for the digital inputs selected by
parameter 10.03 DI force selection. It is only possible to
force an input that has been selected in parameter 10.03
DI force selection.
Bit 0 is the forced value for DI1.
0000h
0000h…FFFFh Forced values of digital inputs. 1 = 1
10.05 DI1 ON delay Defines the activation delay for digital output DI1. 0.0 -
t
On
= 10.05 DI1 ON delay
t
Off
= 10.06 DI1 OFF delay
0.0 … 3000.0 s Activation delay for DI1. 10 = 1 -
10.06 DI1 OFF delay Defines the deactivation delay for digital output DI1. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Deactivation delay for DI1. 10 = 1 -
10.07 DI2 ON delay Defines the activation delay for digital output DI2. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Activation delay for DI2. 10 = 1 -
10.08 DI2 OFF delay Defines the deactivation delay for digital output DI2. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Deactivation delay for DI2. 10 = 1 -
10.09 DI3 ON delay Defines the activation delay for digital output DI3. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Activation delay for DI3. 10 = 1 -
10.10 DI3 OFF delay Defines the deactivation delay for digital output DI3. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Deactivation delay for DI3. 10 = 1 -
10.11 DI4 ON delay Defines the activation delay for digital output DI4. See
parameter 10.05 DI1 ON delay.
0.0 -
0.0 … 3000.0 s Activation delay for DI4. 10 = 1 -
No. Name/Value Description Default
FbEq 16
Bit Value
0 Force the value of this bit to DI1, if so defined in parameter 10.03 DI force selection.
1 Force the value of this bit to DI2, if so defined in parameter 10.03 DI force selection.
2 Force the value of this bit to DI3, if so defined in parameter 10.03 DI force selection.
3 Force the value of this bit to DI4, if so defined in parameter 10.03 DI force selection.
4 Force the value of this bit to DI5, if so defined in parameter 10.03 DI force selection.
5...15 Reserved.
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
DI delayed status
Time
