130 Parameters
11.39 Freq in 1 scaled value Displays the value of frequency input 1 after scaling. See
parameter 11.42 Freq in 1 min.
This parameter is read-only.
-
-32768.000…
32767.000
Scaled value of frequency input 1. 1 = 1
11.42 Freq in 1 min Defines the minimum for the frequency actually arriving at
frequency input 1.

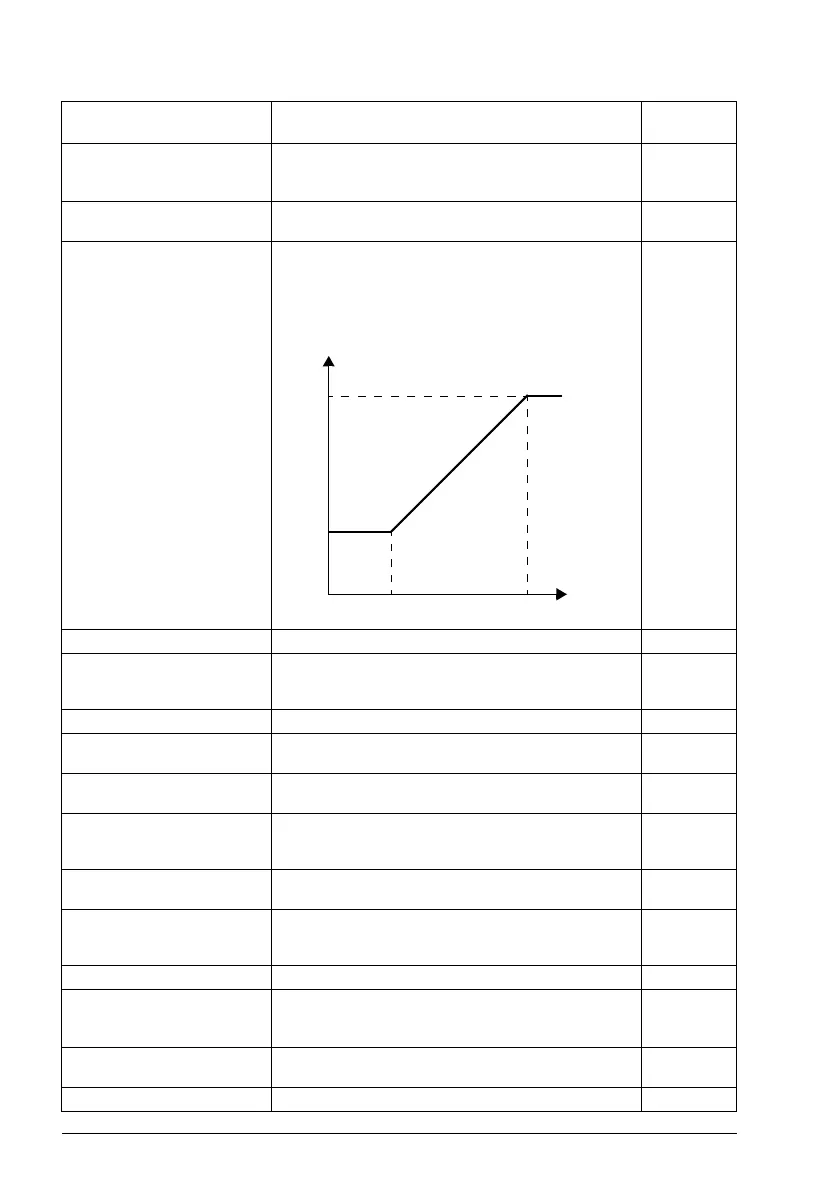

The incoming frequency signal (11.38 Freq in 1 actual
value) is scaled into an internal signal (11.39 Freq in 1
scaled value) by parameters 11.42…11.45 as follows:
0 Hz
0 … 16000 Hz Minimum frequency of frequency input 1. 1 = 1 Hz
11.43 Freq in 1 max Defines the maximum value of the frequency signal
actually arriving at frequency input 1. See parameter
11.42 Freq in 1 min.
16000 Hz
0 … 16000 Hz Maximum frequency of frequency input 1. 1 = 1 Hz
11.44 Freq in 1 at scaled min Defines the value that corresponds to the actual minimum
input frequency defined by parameter 11.42 Freq in 1 min.
0.000
-32768.000…
32767.000
Value corresponding to minimum of frequency input 1. 1 = 1
11.45 Freq in 1 at scaled
max
Defines the value that corresponds to the actual maximum
input frequency defined by parameter 11.43 Freq in 1
max. See parameter 11.42 Freq in 1 min.
1500.000
-32768.000…
32767.000
Value corresponding to maximum of frequency input 1. 1 = 1
11.46 Freq in 2 actual value Displays the value of frequency input 2 before scaling.
See parameter 11.50 Freq in 2 min This parameter is
read-only.
-
0 … 16000 Hz Unscaled value of frequency input 2. 1 = 1 Hz
11.47 Freq in 2 scaled Displays the value of frequency input 2 after scaling. See
parameter 11.50 Freq in 2 min.
This parameter is read-only.
-
-32768.000…
32767.000
Scaled value of frequency input 2. 1 = 1
11.50 Freq in 2 min Defines the minimum value for frequency input 2. 0 Hz
No. Name/Value Description Default
FbEq 16
11.43
11.45
11.42
11.39
f
in
(11.38)
11.44
