182 Parameters

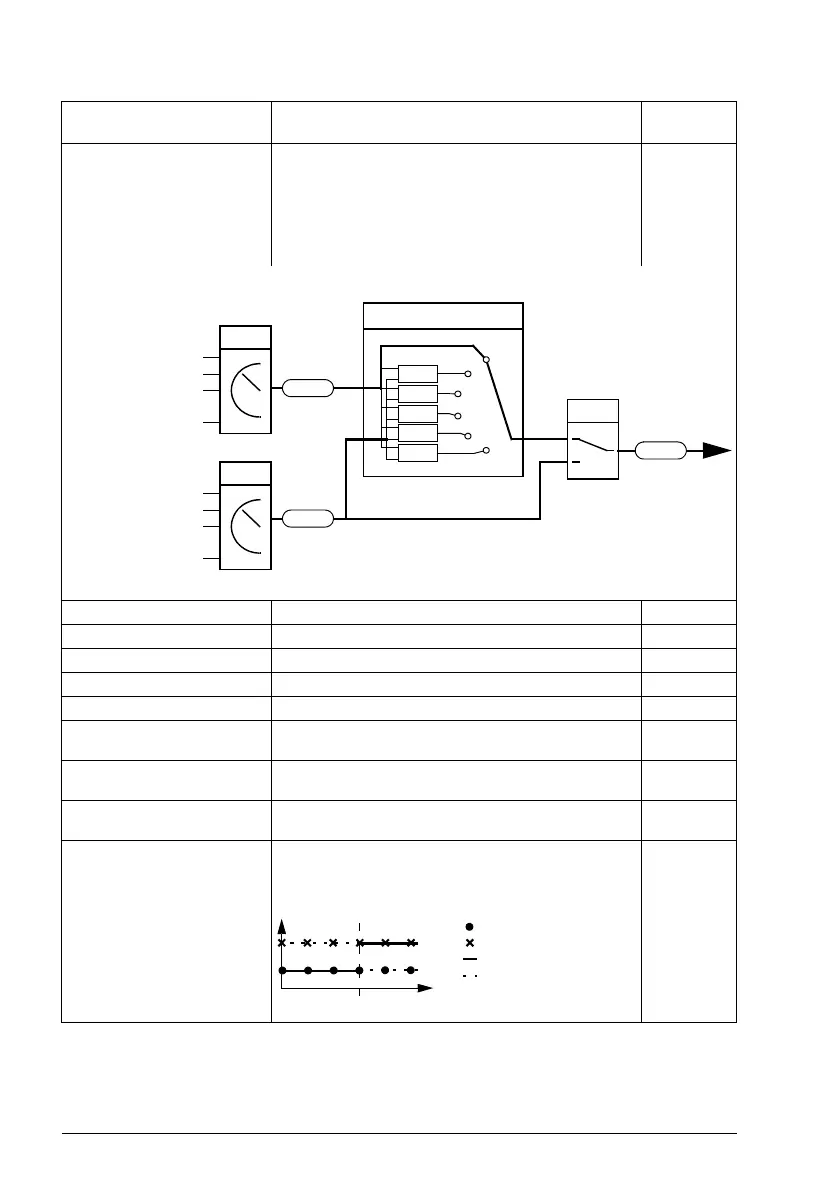

26.11 Torque ref1 source Selects torque reference source 1.
Two signal sources can be defined by this parameter and
26.12 Torque ref2 source. A digital source selected by
26.14 Torque ref1/2 selection can be used to switch
between the two sources, or a mathematical function
(26.13 Torque ref1 function) applied to the two signals to
create the reference.
Zero
Zero None. 0
AI1 scaled 12.12 AI1 scaled value (see page 132). 1
AI2 scaled 12.22 AI2 scaled value (see page 134). 2
EFB ref1 03.09 EFB reference 1 (see page 111). 8
EFB ref2 03.10 EFB reference 2 (see page 111). 9
Motor potentiometer 22.80 Motor potentiometer ref act (output of the motor
potentiometer).
15
PID 40.01 Process PID output actual (output of the process
PID controller).
16
Frequency input 11.38 Freq in 1 actual value (when DI3 or DI4 is used as a
frequency input).
17
Control panel (ref
saved)
Panel reference (03.01 Panel reference, see page 111)
saved by the control system for the location where the
control returns is used as the reference.
18
No. Name/Value Description Default
FbEq 16
26.14
1
0
26.11
0
AI
FB
26.12
26.72
26.71
…
Other
…
0
AI
FB
…
Other
…
26.13
MUL
SUB
ADD
MIN
MAX
Ref1
26.70
Ext1 -> Ext2
t
Reference
Ext1 reference
Ext2 reference
Active reference
Inactive reference
