Parameters 201
30.17 Maximum current Defines the maximum allowed motor current.
The system sets the default value to 90% of the rated
current. If required, you can increase the parameter value
by 10%.
Note: The maximum current range and default value
depends on the drive type.
2.88 A
0.00…3.20 A Maximum motor current. 1 = 1 A
30.18 Torq lim sel Selects a source that switches between two different
predefined minimum torque limit sets.
0 = minimum torque limit defined by 30.19 and maximum
torque limit defined by 30.20 are active
1 = minimum torque limit selected by 30.21 and maximum
torque limit defined by 30.22 are active

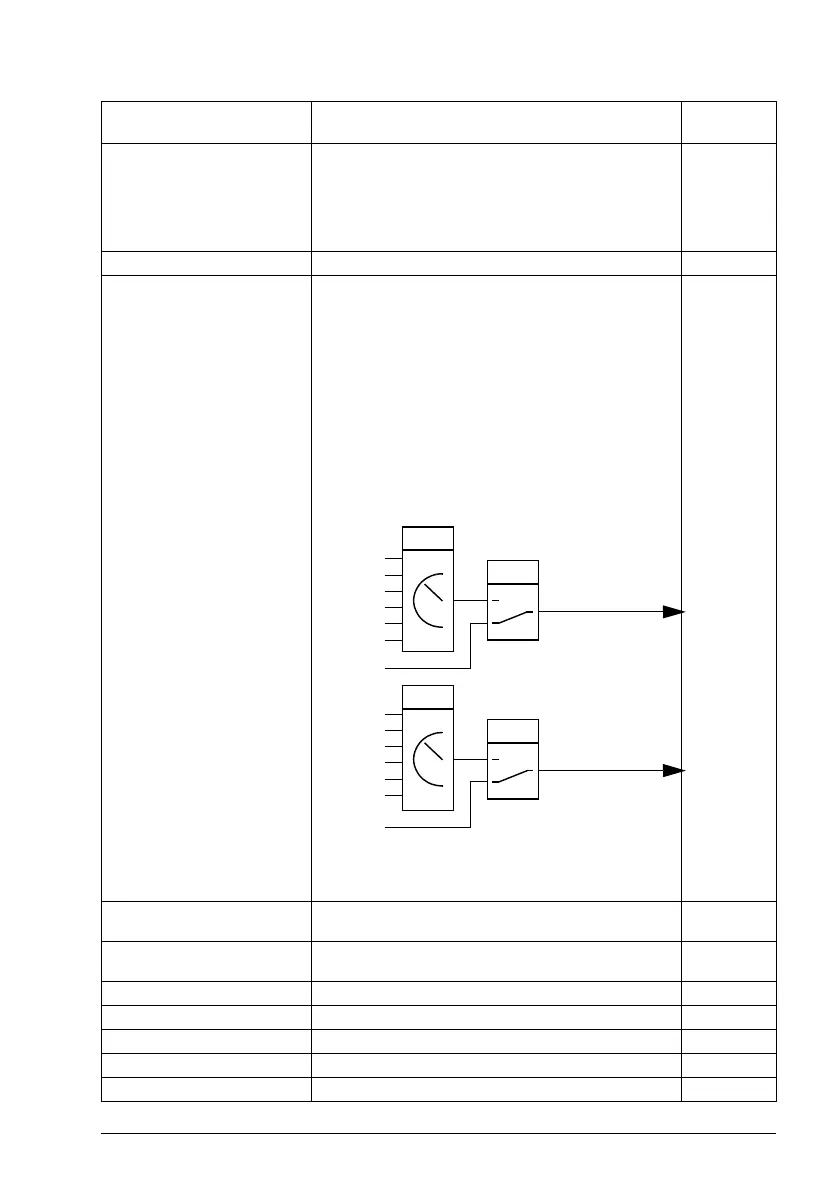

The user can define two sets of torque limits, and switch
between the sets using a binary source such as a digital
input.
The first set of limits is defined by parameters 30.19 and
30.20. The second set has selector parameters for both
the minimum (30.21) and maximum (30.22) limits that
allows the use of a selectable analog source (such as an
analog input).
Note: In addition to the user-defined limits, torque may be
limited for other reasons (such as power limitation). Refer
to the block diagram on page 373.
Torque limit
set 1
Torque limit set 1 0 (minimum torque limit defined by 30.19 and maximum
torque limit defined by 30.20 are active).
0
Torque limit set 2 1 (minimum torque limit selected by 30.21 and maximum
torque limit defined by 30.22 are active).
1
DI1 Digital input DI1 (10.02 DI delayed status, bit 0). 2
DI2 Digital input DI2 (10.02 DI delayed status, bit 1). 3
DI3 Digital input DI3 (10.02 DI delayed status, bit 2). 4
DI4 Digital input DI4 (10.02 DI delayed status, bit 3). 5
DI5 Digital input DI5 (10.02 DI delayed status, bit 4). 6
No. Name/Value Description Default
FbEq 16
30.21
User-defined
minimum torque
limit
0
AI1
AI2
PID
30.23
Other
0
AI1
AI2
PID
30.24
Other
30.19
30.22
30.18
0
1
30.20
30.18
0
1
User-defined
maximum torque
limit
