134 Parameters
13.17 AO1 source min Defines the real minimum value of the signal (selected by
parameter 13.12 AO1 source) that corresponds to the
minimum required AO1 output value (defined by
parameter 13.19 AO1 out at AO1 src min).

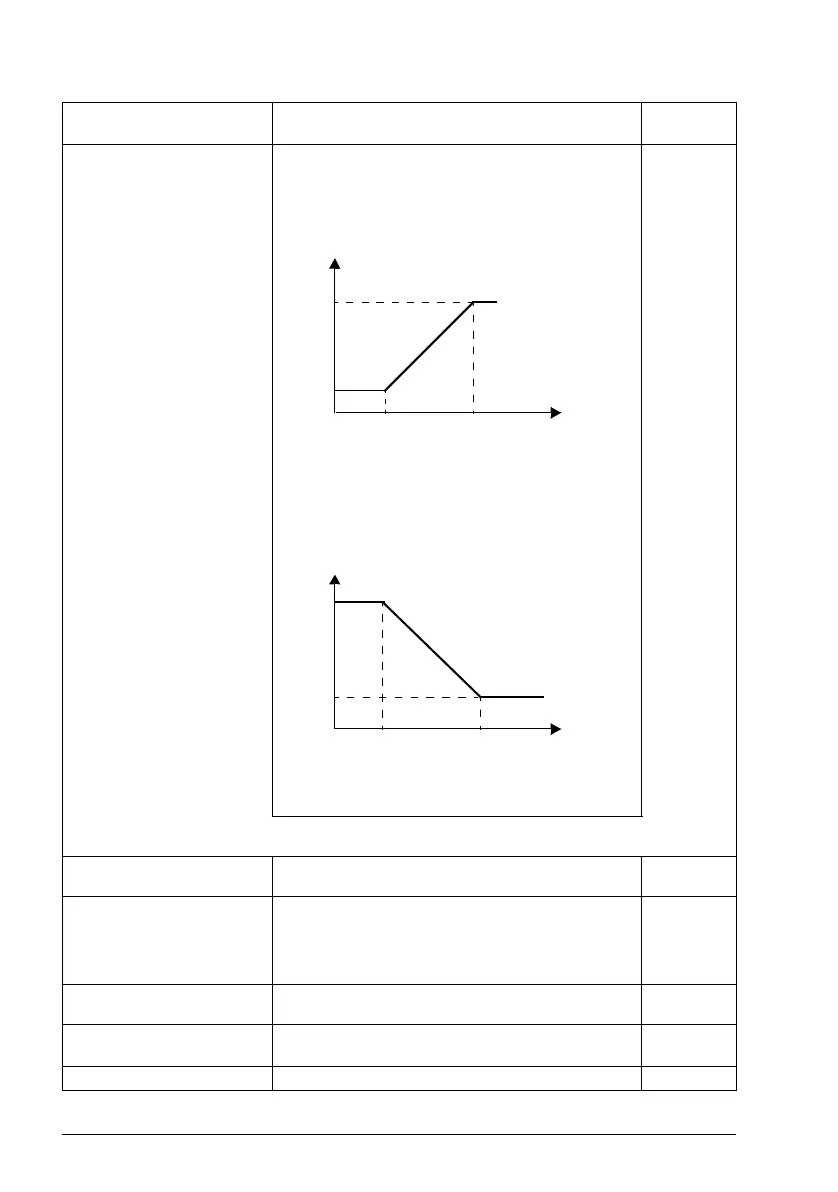

Setting 13.17 to the maximum value and 13.18 to the
minimum value inverts the output.
0.0
AO has automatic scaling. Every time the source for the AO is changed, the scaling range is
changed accordingly. User given minimum and maximum values override the automatic values.
-32768.0…32767.0 Real signal value corresponding to minimum AO1 output
value.
1 = 1
13.18 AO1 source max Defines the real maximum value of the signal (selected by
parameter 13.12 AO1 source) that corresponds to the
maximum required AO1 output value (defined by
parameter 13.20 AO1 out at AO1 src max). See
parameter 13.17 AO1 source min.
50.0
-32768.0…32767.0 Real signal value corresponding to maximum AO1 output
value.
1 = 1
13.19 AO1 out at AO1 src
min
Defines the minimum output value for analog output AO1.
See also drawing at parameter 13.17 AO1 source min.
0.000 mA
0.000…22.00 mA Minimum AO1 output value. 1000 = 1 mA
No. Name/Value Description Default
FbEq 16
13.1813.17
13.20
13.19
I
AO1
(mA)
Signal
selected by
13.12
I
AO1
(mA)
13.20
13.19
13.18 13.17
Signal (real)
selected by
13.12
