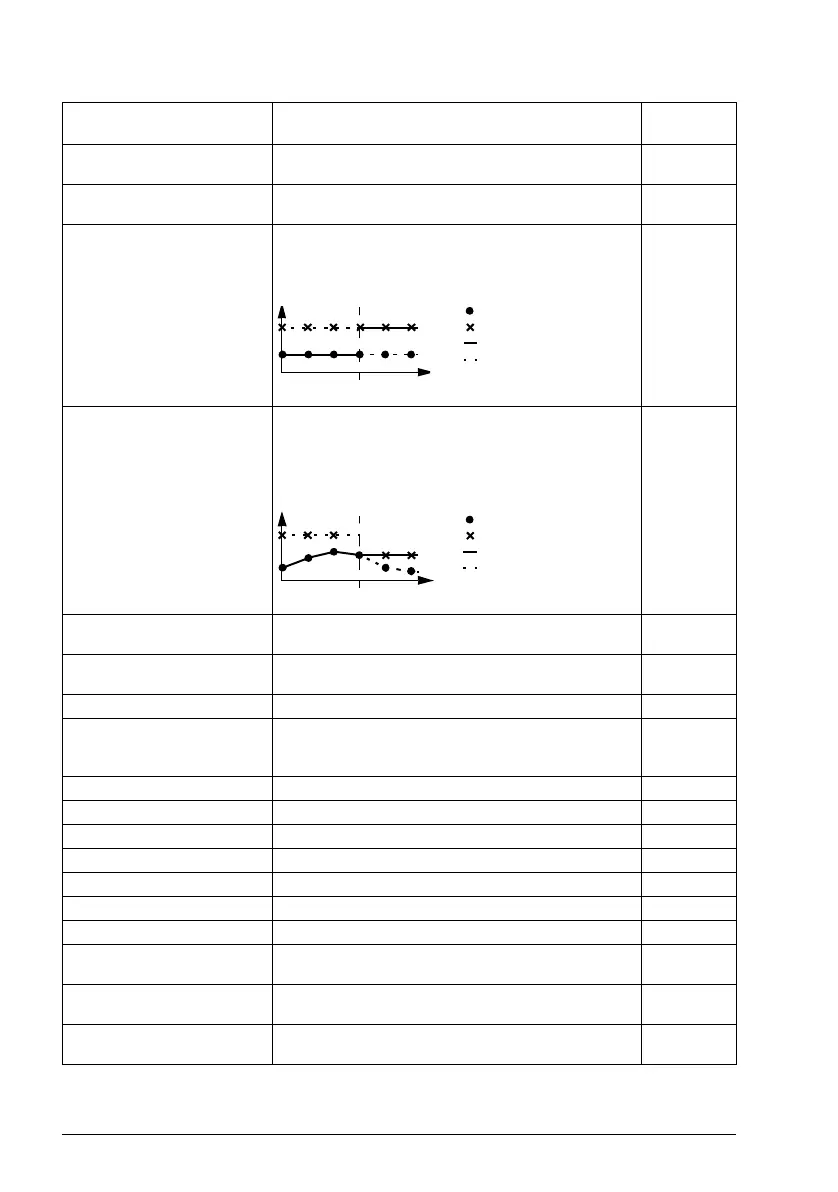

162 Parameters
PID 40.01 Process PID output actual (output of the process
PID controller).
16
Frequency input 11.38 Freq in 1 actual value (when DI6 is used as a
frequency input).
17
Control panel (ref
saved)
Panel reference (03.01 Panel reference, see page 108)
saved by the control system for the location where the
control returns is used as the reference.
18
Control panel (ref
copied)
Panel reference (03.01 Panel reference for the previous
control location is used as the reference when the control
location changes if the references for the two locations are
of the same type (eg frequency/speed/torque/PID);
otherwise, the actual signal is used as the new reference.
19
Integrated panel (ref
saved)
See above Control panel (ref saved). 20
Integrated panel (ref
copied)
See above Control panel (ref copied). 21
Other Source selection (see Terms and abbreviations). -
22.12 Ext1 speed ref2 Selects Ext1 speed reference source 2.
For the selections, and a diagram of reference source
selection, see parameter 22.11 Ext1 speed ref1.
Zero
Zero None. 0
AI1 scaled 12.12 AI1 scaled value.1
AI2 scaled 12.22 AI2 scaled value.2
FB A ref1 03.05 FB A reference 1 4
FB A ref2 03.06 FB A reference 2.5
EFB ref1 03.09 EFB reference 1.8
EFB ref2 03.10 EFB reference 2.9
Motor potentiometer 22.80 Motor potentiometer ref act (output of the motor
potentiometer).
15
PID 40.01 Process PID output actual(output of the process
PID controller).
16
Frequency input 11.38 Freq in 1 actual value (when DI6 is used as a
frequency input).
17
No. Name/Value Description Default
FbEq 16
Ext1 -> Ext2
t
Reference
Ext1 reference
Ext2 reference
Active reference
Inactive reference
Ext1 -> Ext2
Ext1 reference
Ext2 reference
Active reference
t
Inactive reference
Reference
