Parameters 129
12.19 AI1 scaled at AI1 min Defines the real internal value that corresponds to the
minimum analog input AI1 value defined by parameter
12.17 AI1 min. (Changing the polarity settings of 12.19
and 12.20 can effectively invert the analog input.)
0
-32768.000…
32767.000
1 = 1
12.20 AI1 scaled at AI1 max Defines the real internal value that corresponds to the
maximum analog input AI1 value defined by parameter

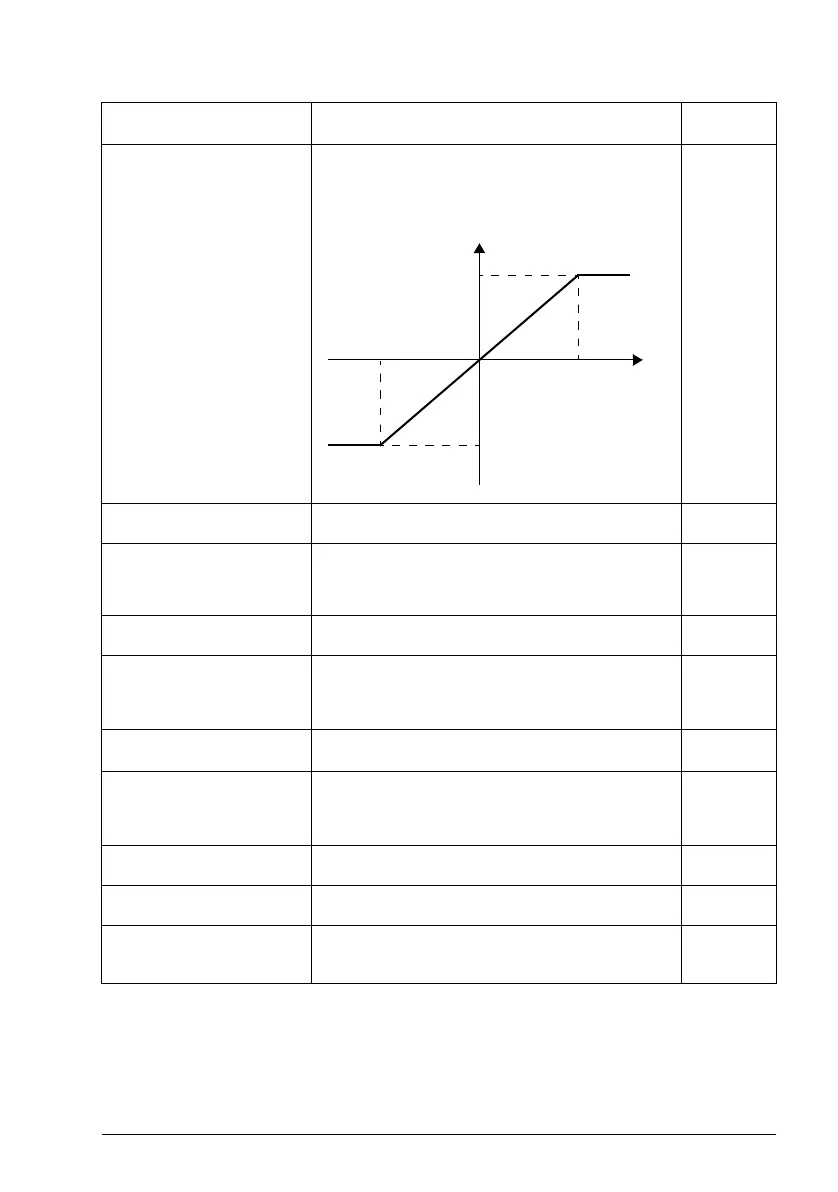

12.18 AI1 max. See the drawing at parameter 12.19 AI1
scaled at AI1 min.
50.000
-32768.000…
32767.000
Real value corresponding to maximum AI1 value. 1 = 1
12.21 AI2 actual value Displays the value of analog input AI2 in mA or V
(depending on whether the input is set to current or
voltage by a hardware setting).
This parameter is read-only.
-
0.000…20.000 mA
or 0.000…10.000 V
Value of analog input AI2. 1000 = 1 mA
or V
12.22 AI2 scaled value Displays the value of analog input AI2 after scaling. See
parameters 12.29 AI2 scaled at AI2 min and 12.101 AI1
percent value.
This parameter is read-only.
-
-32768.000…
32767.000
Scaled value of analog input AI2. 1 = 1
12.23 AI2 forced value Forced value that can be used instead of the true reading
of the input. See parameter 12.02 AI force selectionn.
-
0.000…20.000 mA
or 0.000…10.000 V
Forced value of analog input AI2. 1000 = 1 mA
or V
No. Name/Value Description Default
FbEq 16
12.20
12.18
12.17
12.19
AI
in
(12.11)
AI
scaled
(12.12)
