Note/IllustrationAction
Screws: Cross recessed cheese head screw
M4x8 (1 pcs)
Fit the power supply to the bracket and
fasten it with screw.
3

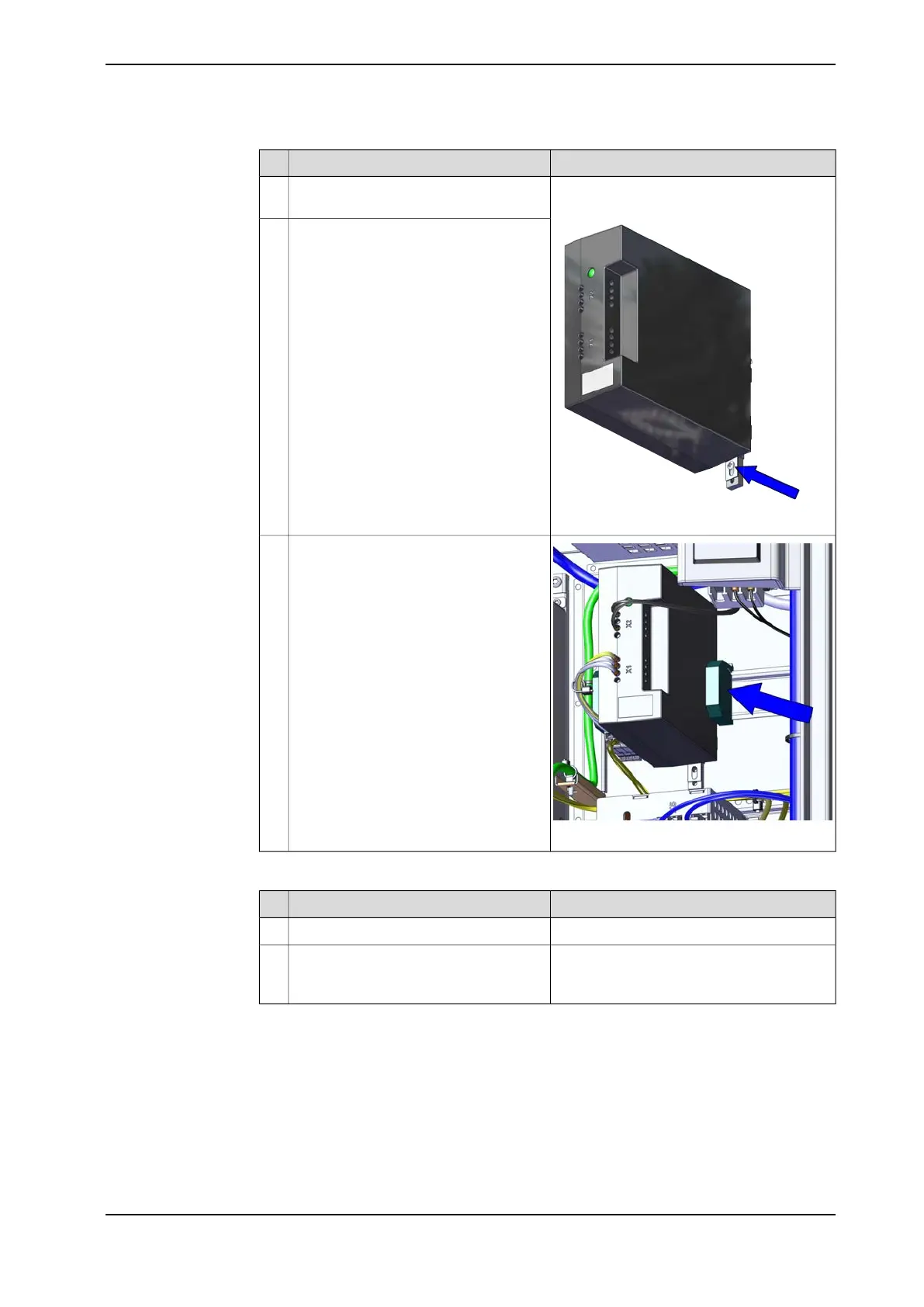

xx1900001908
Reconnect:
• T5.X1-AC Terminal block
• T5.X2-24V Terminal block
4
xx1900001907
Refit the end clamp besides the power
supply.
5
Concluding procedure
Note/IllustrationAction
Closing the door on page 174.Close the door.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 165.
2
Continues on next page
Product manual - OmniCore C90XT 253
3HAC073706-001 Revision: D
© Copyright 2020-2021 ABB. All rights reserved.
5 Repair
5.2.10 Replacing the power supply
Continued
