Section 5 Drying Station Temperature Check
Abbott VP 2000™ Processor Service Manual 5-29
30-608308/R1—September 2008

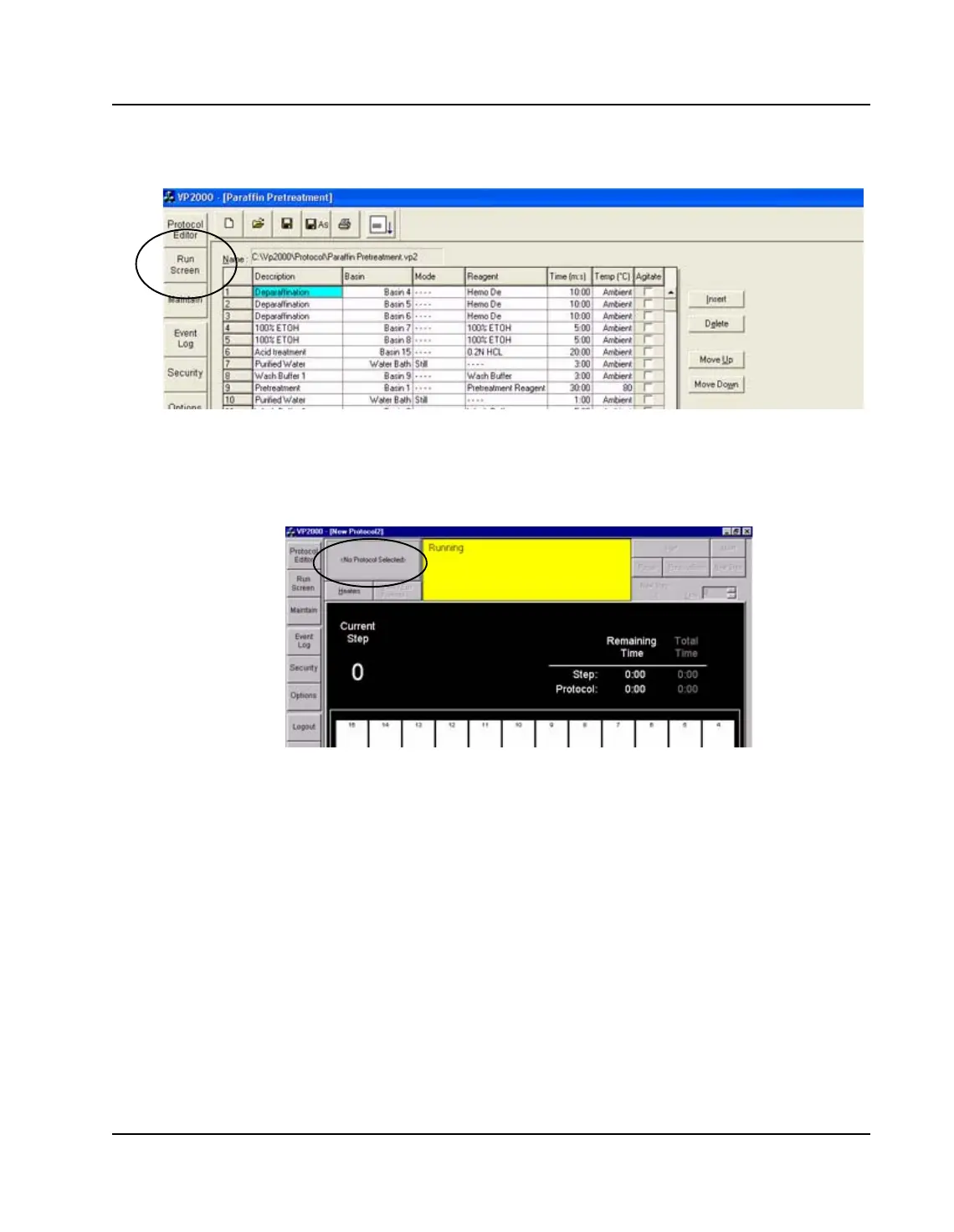

Figure 5.15: Select the <Run Screen> Button
17. The “Run Screen” window displays. Select the <No
Protocol Selected> button.
Figure 5.16: Select the <No Protocol Selected> Button
18. The “Open” protocol screen displays. Select <Dryer Test>,
then <Open>.
To Next Page
