Section 7 Power Supply Assembly
Abbott VP 2000™ Processor Service Manual 7-25
30-608308/R1—September 2008
Power Supply Assembly
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

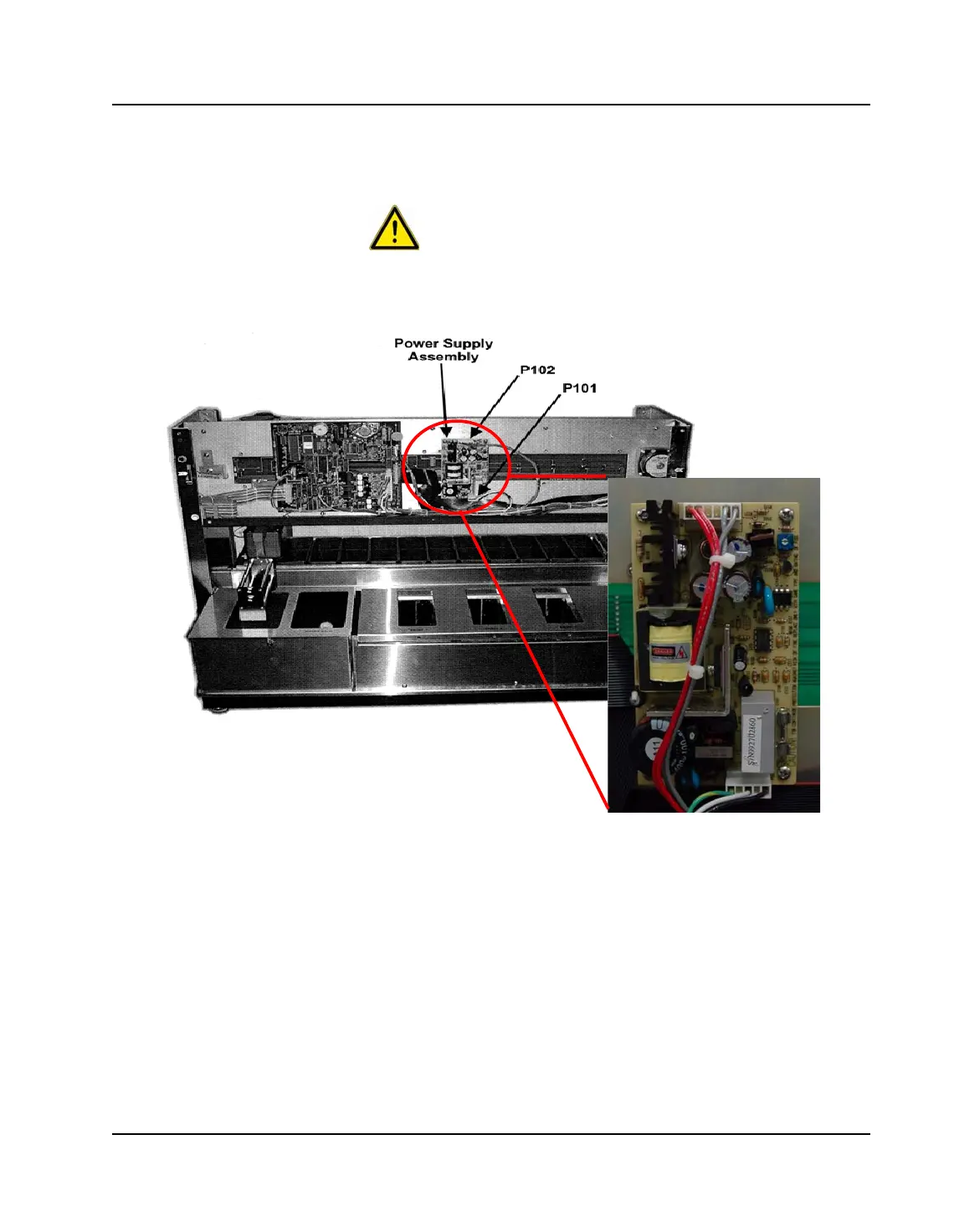

Figure 7.11: Power Supply Assembly
