Section 7 Interlock Switch
Abbott VP 2000™ Processor Service Manual 7-69
30-608308/R1—September 2008
Interlock Switch
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

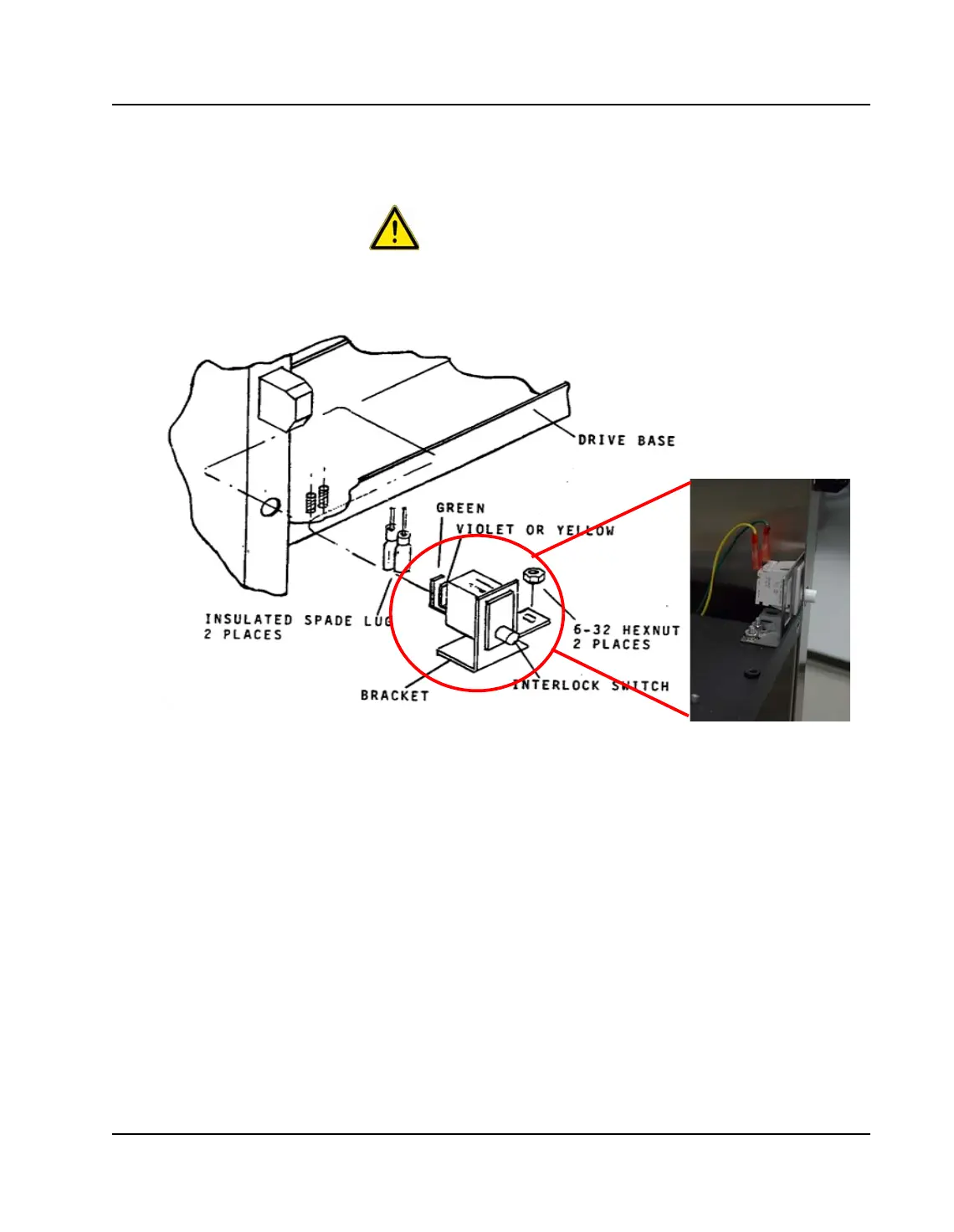

Figure 7.37: Interlock Switch
Removal
1. Remove the Hoods by gently squeezing inward on the two
(2) metal arms that connect the Hoods to the unit.
2. Remove the Top cover by unscrewing six (6) 6-32 x 1/4
Phillips-Head screws, three (3) on each side of the unit.
3. Unplug the insulated spade lugs from the Interlock
Switch.
4. Remove the two (2) 6-32 hex nuts securing the Interlock
Switch bracket to the Drive base, and remove the
assembly.
5. Depress the locking tangs on the switch and remove the
switch from its bracket.
