Section 7 Transformer Assembly (230 VAC Units)
Abbott VP 2000™ Processor Service Manual 7-27
30-608308/R1—September 2008
Transformer Assembly (230 VAC Units)
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

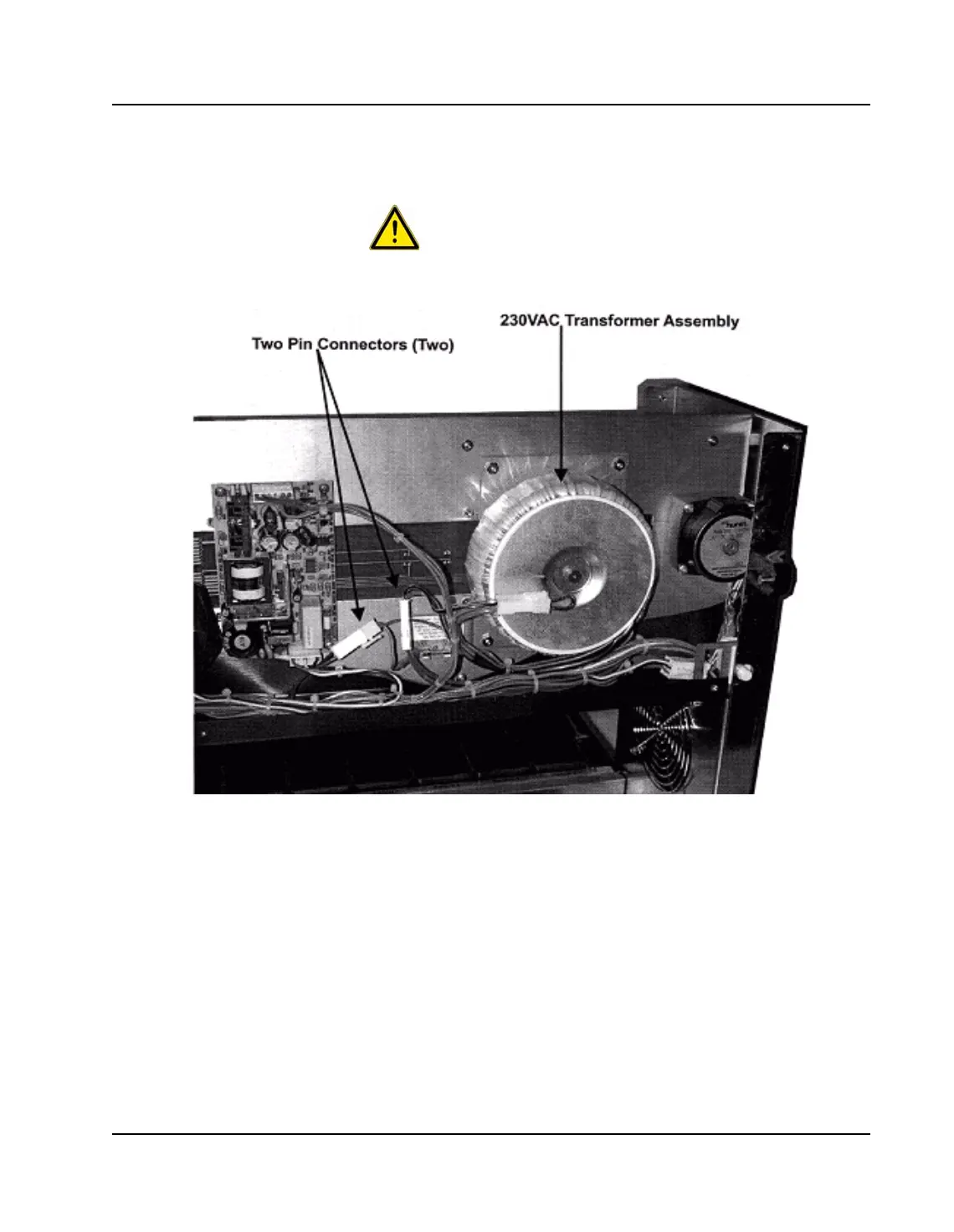

Figure 7.12: Transformer Assembly
Removal
1. Remove the hoods by gently squeezing inward on the two
(2) metal arms that connect the hoods to the unit.
2. Remove the Top Cover by unscrewing six (6) 6-32 x 1/4
Phillips-Head screws, three (3) on each side.
3. Unplug the two (2), 2-pin connectors between the harness
and the transformer. Remove the four (4) 6-32 hex nuts
fastening the transformer plate to the unit and lift the
module away.
