Section 7 Fan
Abbott VP 2000™ Processor Service Manual 7-73
30-608308/R1—September 2008
Fan
Prior to disassembly, move the Robotic Arm so that it is over
the Drying Station and leave it in the up position.
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

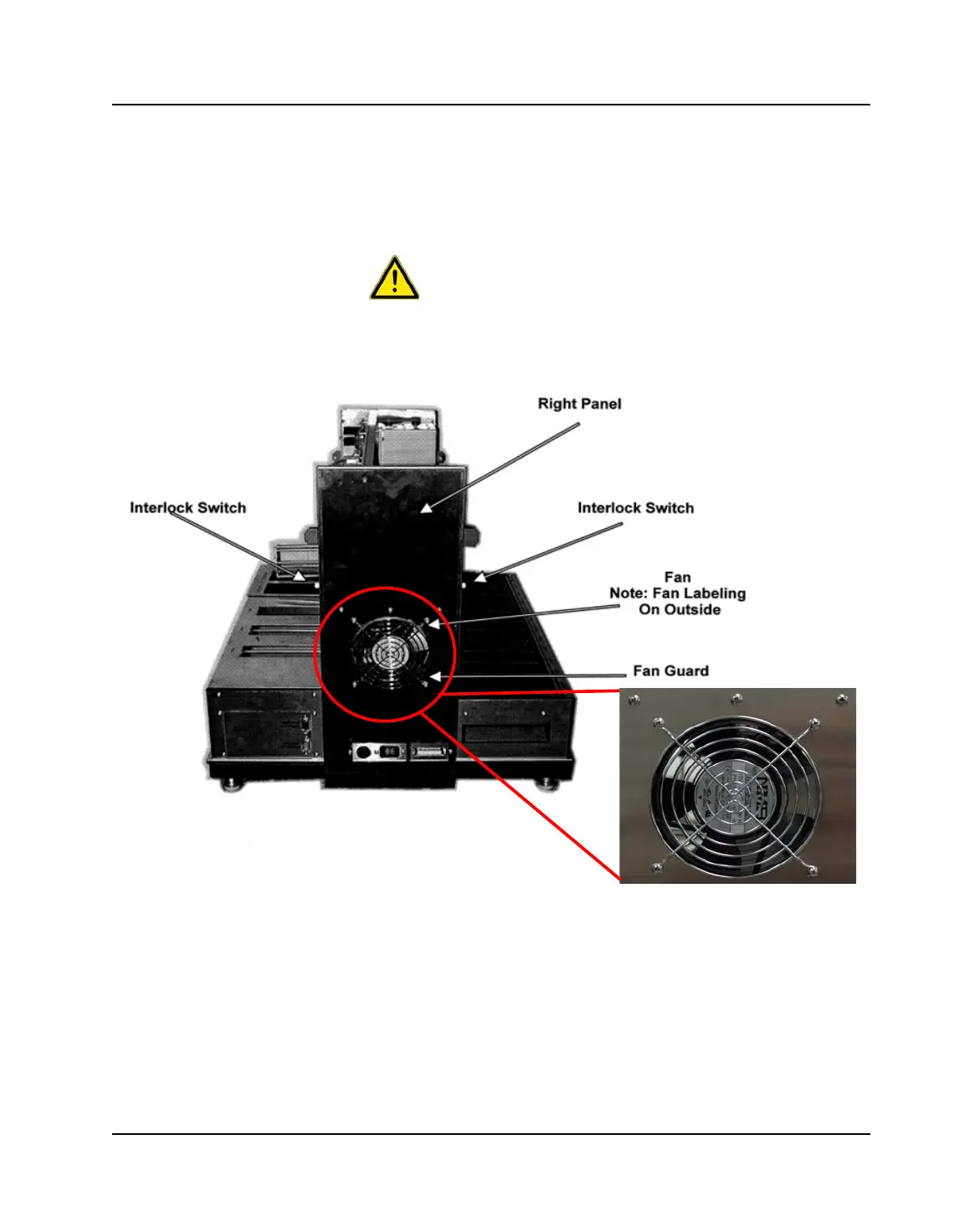

Figure 7.39: Fan
