Repair, Replacement of Spare Parts Section 7
7-44 Abbott VP 2000™ Processor Service Manual
30-608308/R1—September 2008
Rinse-Tank Assembly
Prior to disassembly, move the Robotic Arm so that it is over
the Water Bath and leave it in the up position.
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

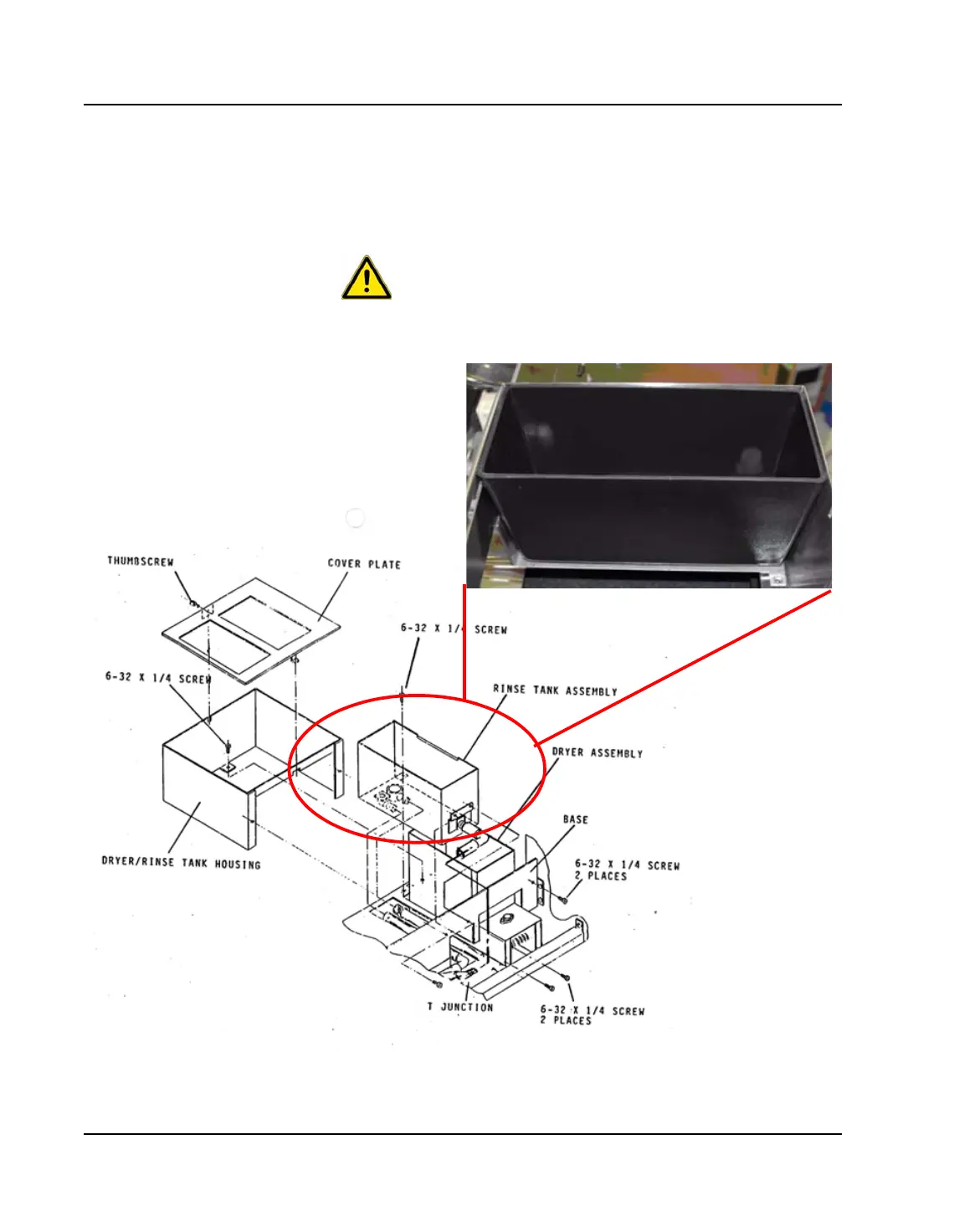

Figure 7.19: Rinse Tank Assembly
To Next Page
