Abbott VP 2000 - Removal

Section 7 Heater Box Assembly
Abbott VP 2000™ Processor Service Manual 7-57
30-608308/R1—September 2008

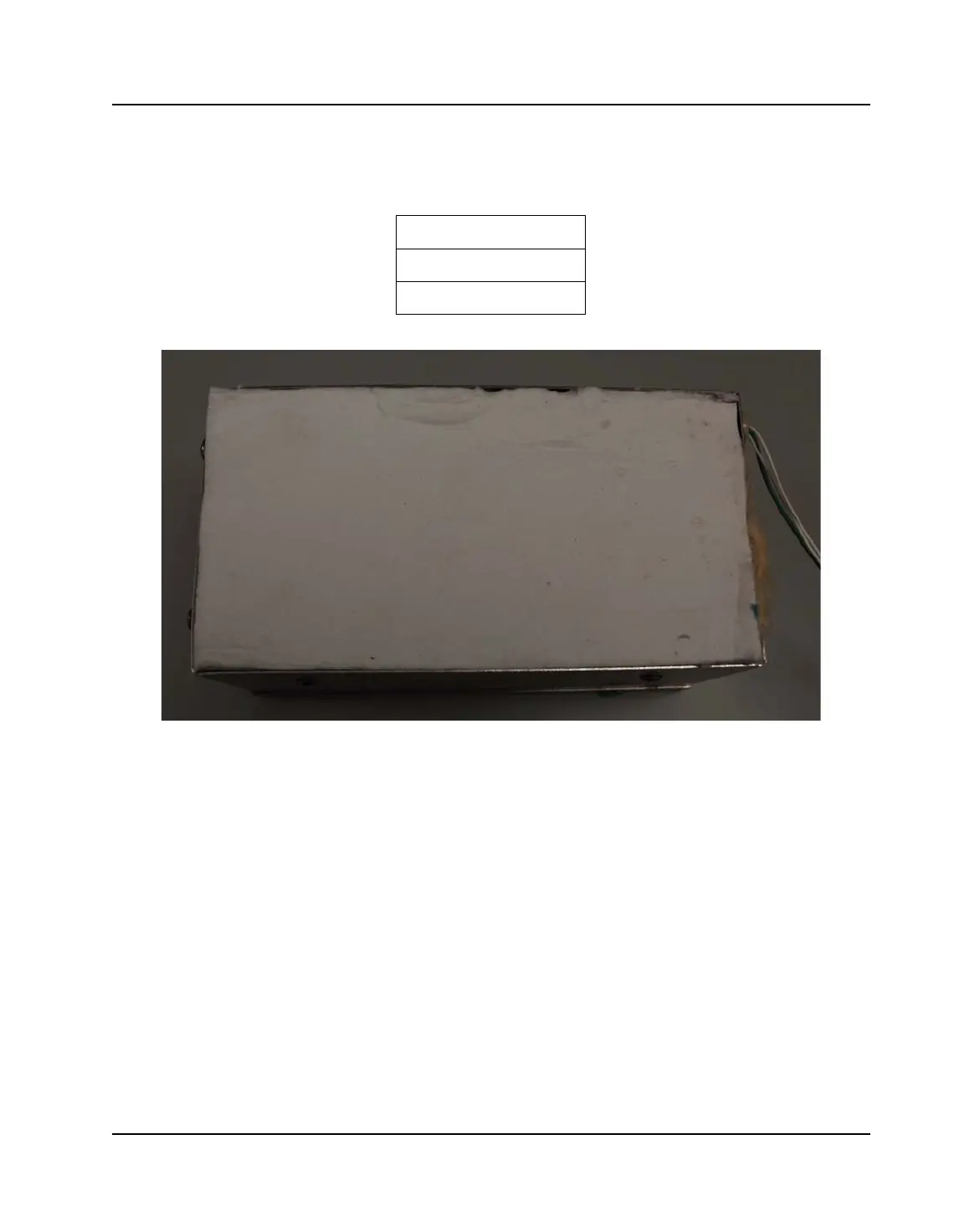

Figure 7.31: Heater Basin Insulation
Removal
1. Remove the Heater Module Assembly as outlined in the
Heater Module Assembly Removal instructions.
2. Remove the 11 6-32 x 3/16 Phillips-Head screws used to
fasten the Cover Assembly and skirt to the base. Unplug
connector from the sensor bar and lift the cover/skirt away
from the base.
3. Disconnect the green Heater Box ground wires by
removing the 6-32 hex nut securing the wires to the base.
Table 7.2:
Heated Basins
Basin 1 (80
o
C)
Basin 2 (80
o
C)
Basin 3 (40
o
C)
