Section 7 Y-Motor Assembly
Abbott VP 2000™ Processor Service Manual 7-33
30-608308/R1—September 2008
Y-Motor Assembly
Prior to disassembly, move the Robotic Arm so that it is over
the Water Bath and leave it in the up position.
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.
NOTE: Service PN 107-18226-1 is supplied with two (2)
shipping screws holding the capacitor/resistor
mounting plate to the motor. Remove the two (2)
screws and discard. The motor pilot ring from the faulty
Y-Motor Assembly is reused on the service part.

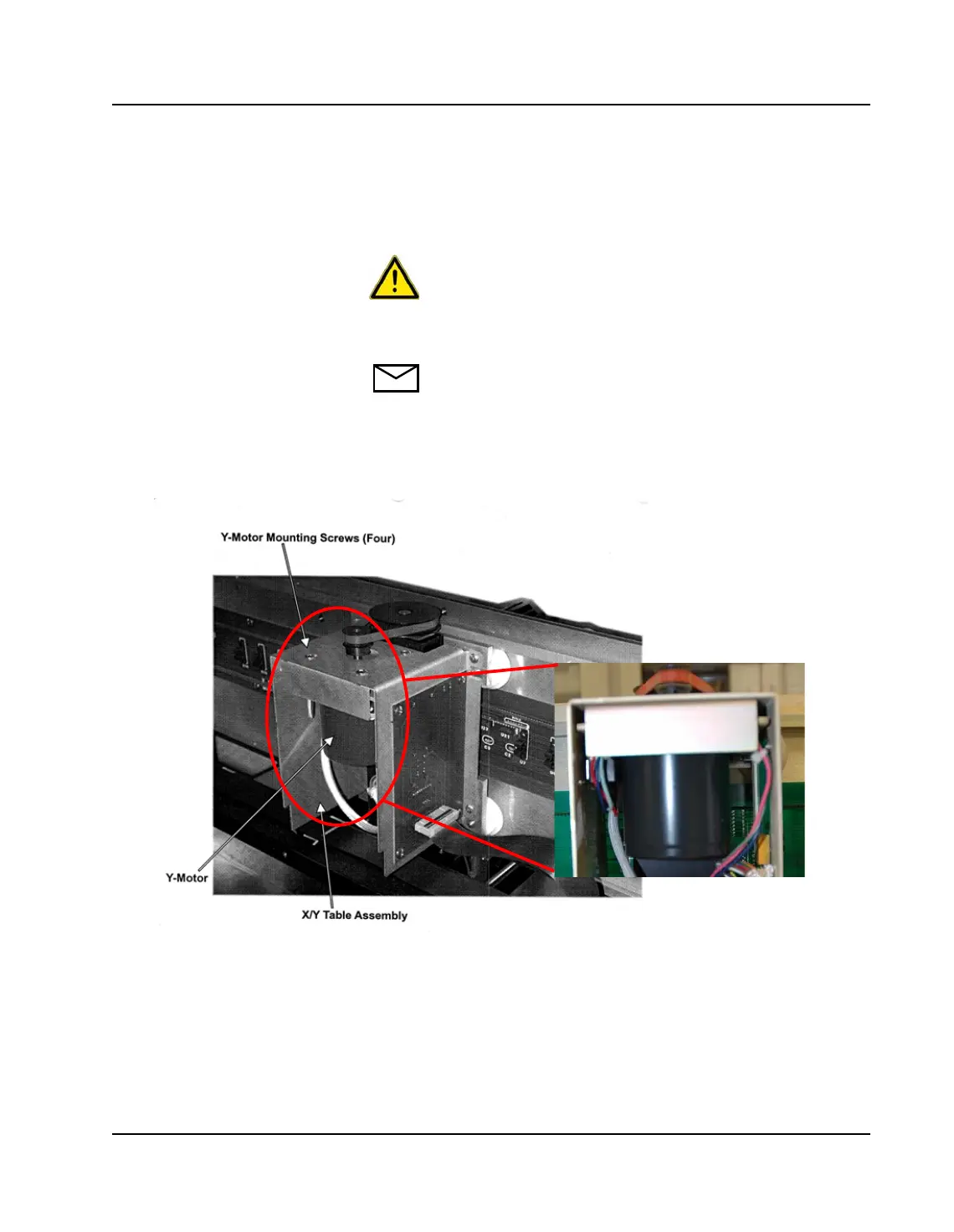

Figure 7.15: Y-Motor Assembly
