Repair, Replacement of Spare Parts Section 7
7-18 Abbott VP 2000™ Processor Service Manual
30-608308/R1—September 2008

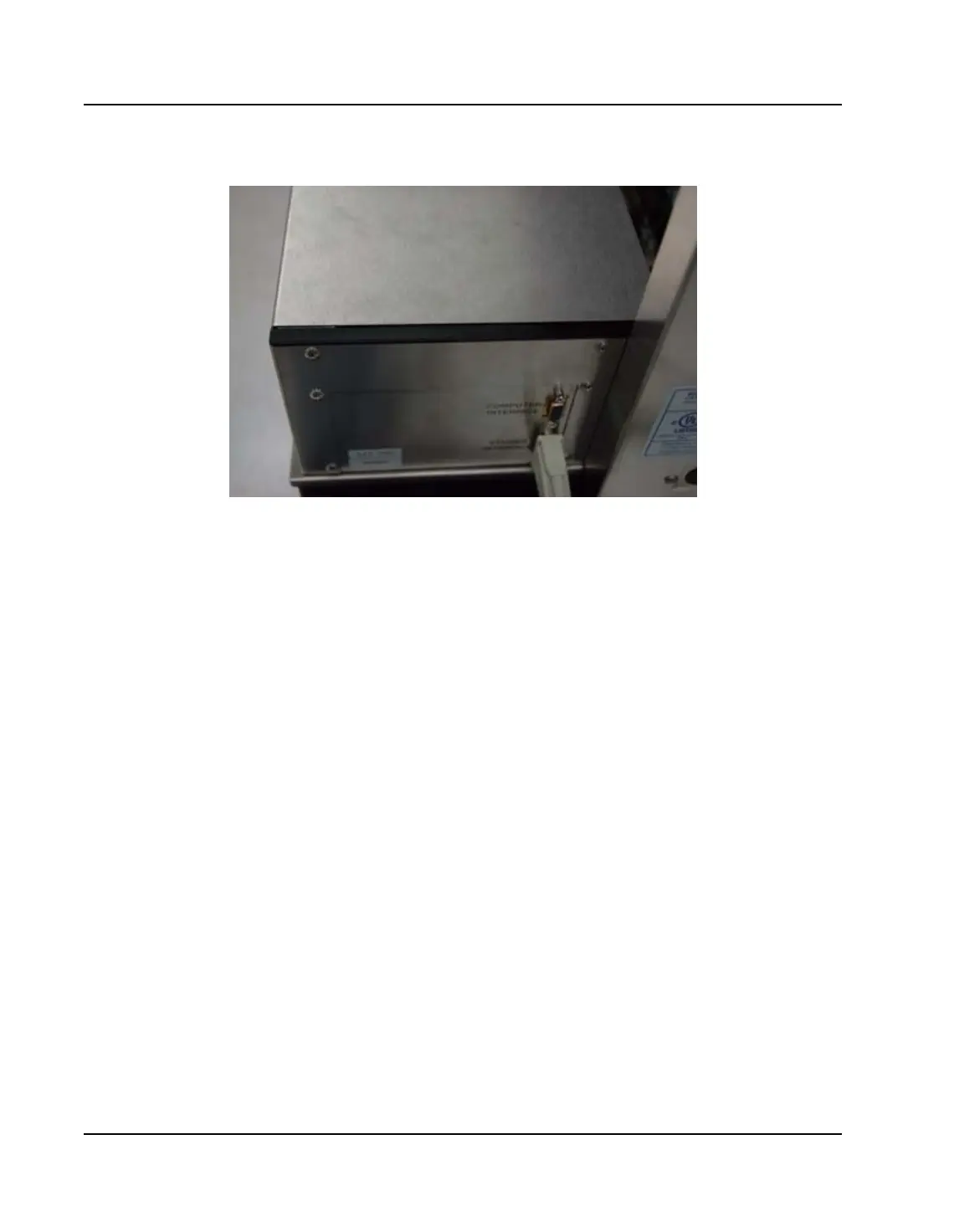

Figure 7.6: Heater Module Cover and Hinge
4. Remove the Cover and Hinge Bar (black) from the Heater
Module.
5. Loosen the two 6-32 x 1/4 Phillips-Head screws mounting
the Sensor Bar to the Cover.
6. Remove the Sensor Bar from the Cover.
Installation
Reassemble by following the removal procedure in reverse.
