Repair, Replacement of Spare Parts Section 7
7-10 Abbott VP 2000™ Processor Service Manual
30-608308/R1—September 2008
Fluid-In Control Assembly
Prior to Disassembly move the Robotic Arm so that it is over
the Drying Station and leave it in the up position.
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

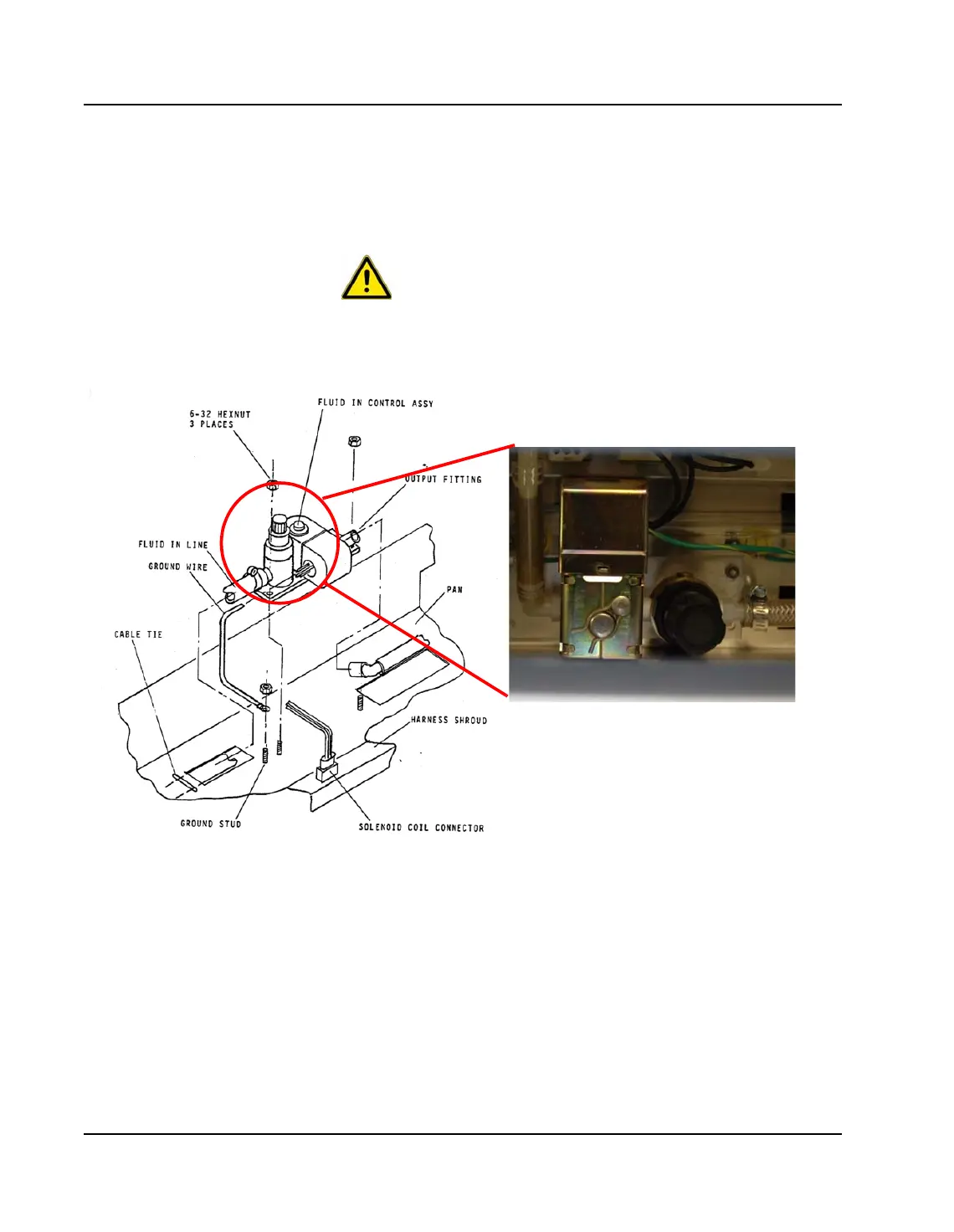

Figure 7.2: Fluid Control Assembly
Removal
1. Remove the Hoods by gently squeezing the two (2) metal
arms connecting the Hood to the unit. Remove the Carrier
Tray Assembly.
2. Disconnect the Fluid-In supply line at the laboratory
source.
