Section 7 AC Power Input Assembly
Abbott VP 2000™ Processor Service Manual 7-41
30-608308/R1—September 2008
AC Power Input Assembly
Prior to disassembly, move the Robotic Arm so that it is over
the Water Bath and leave it in the up position.
WARNI NG: Always disconnect the system power at the
plug to the wall socket before beginning disassembly of
the unit.

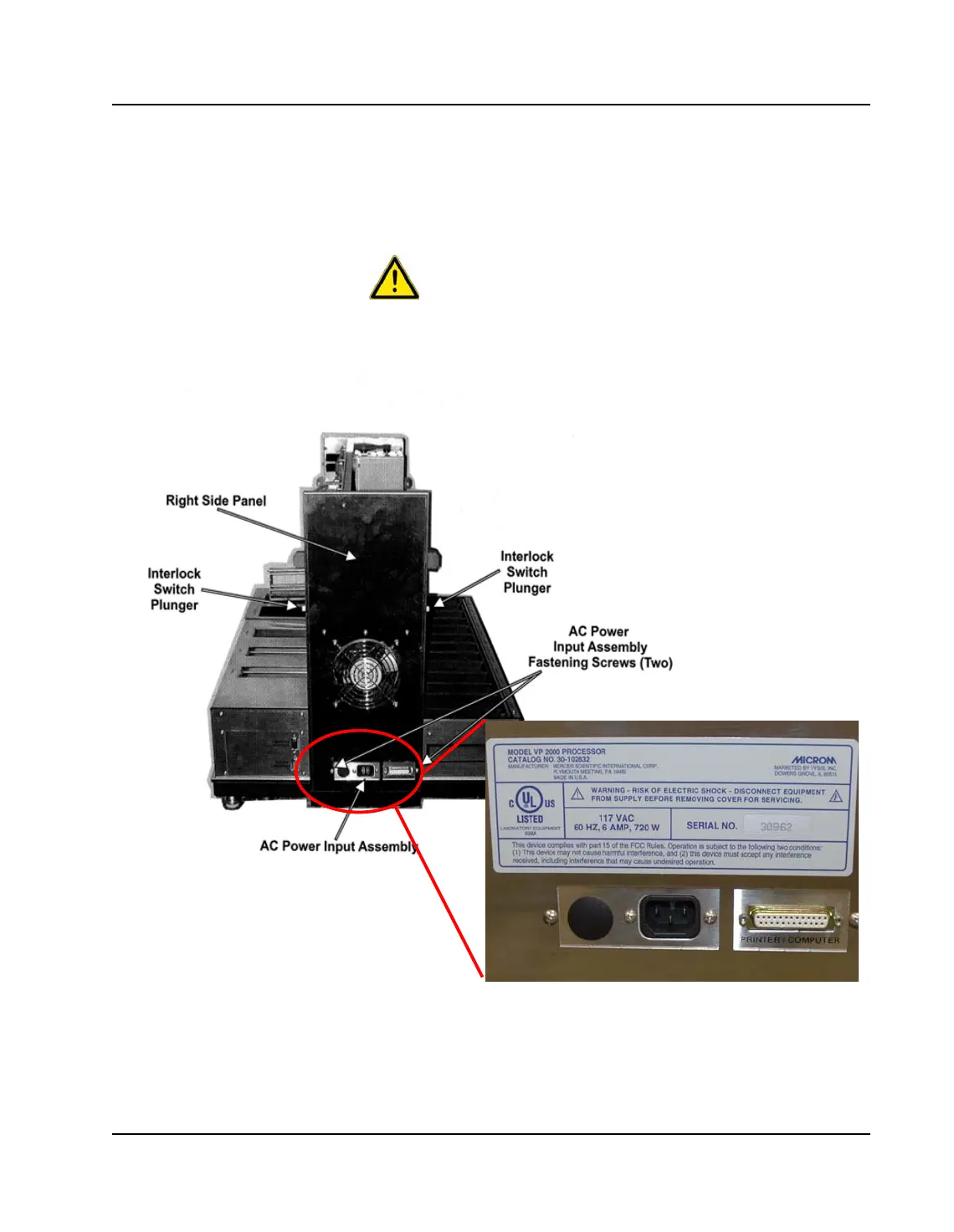

Figure 7.18: AC Power Input Assembly
