Repair, Replacement of Spare Parts Section 7
7-20 Abbott VP 2000™ Processor Service Manual
30-608308/R1—September 2008

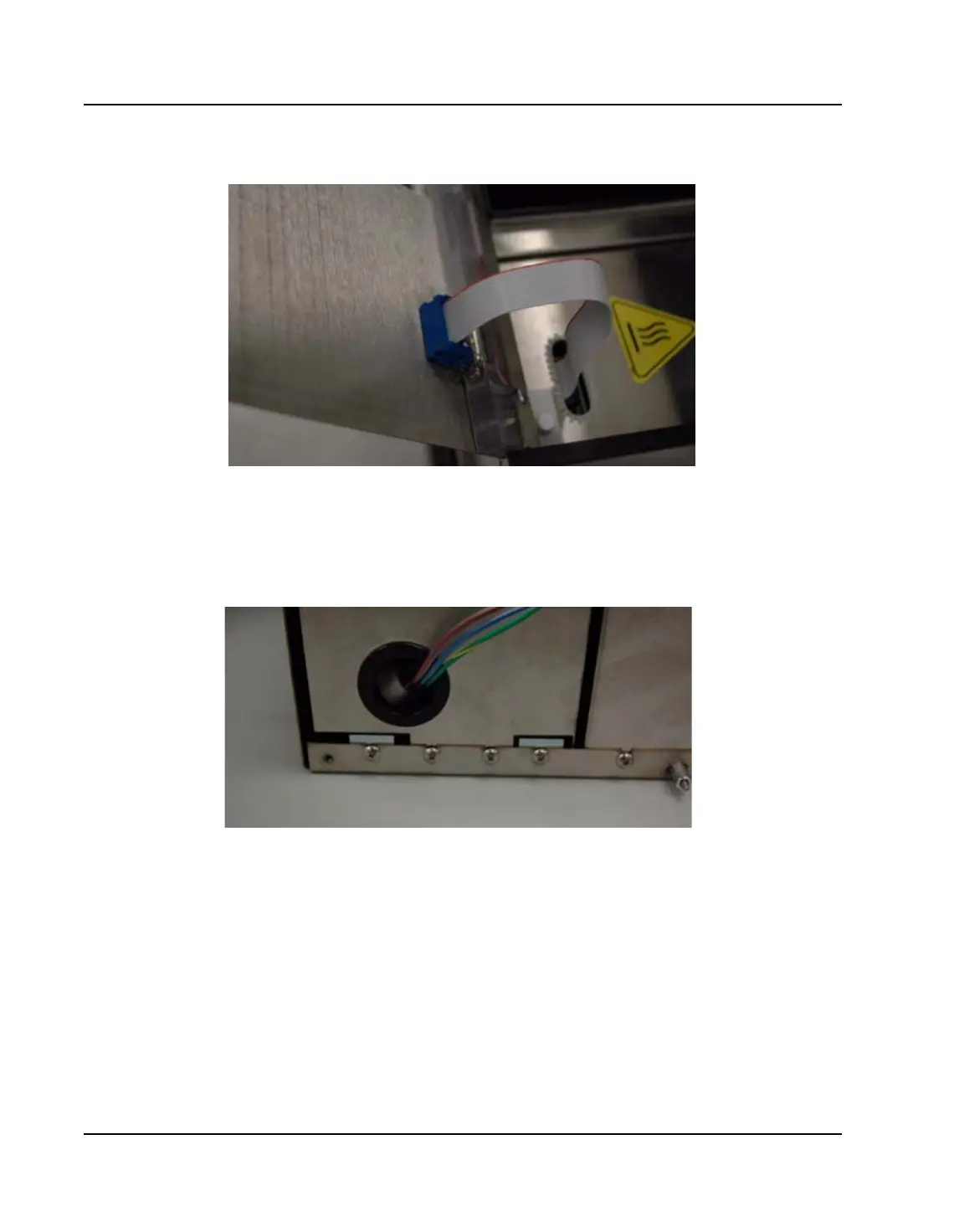

Figure 7.7: Sensor Bar Interface Cable
8. Remove the 11 6-32 x 3/16 Phillips-Head screws used to
fasten the cover assembly and skirt to the base. Lift the
cover/skirt away from the base.
Figure 7.8: Control Board Rear
9. Loosen two (2) 6-32 x 1/4 Phillips-Head screws on the
Heater Module left-side when looking at the rear of the
Heater Module.
