Section 3 Theory of Operation
Abbott VP 2000™ Processor Service Manual 3-17
30-608308/R1—September 2008
In the Recirculate mode, the Solenoid Valve is closed and the
pump is operating. Water is pumped out of the bath through
the pump and back into the bath.
In the Still mode, the Solenoid Valve is closed and the Pump is
OFF. There is no flow of fluid.

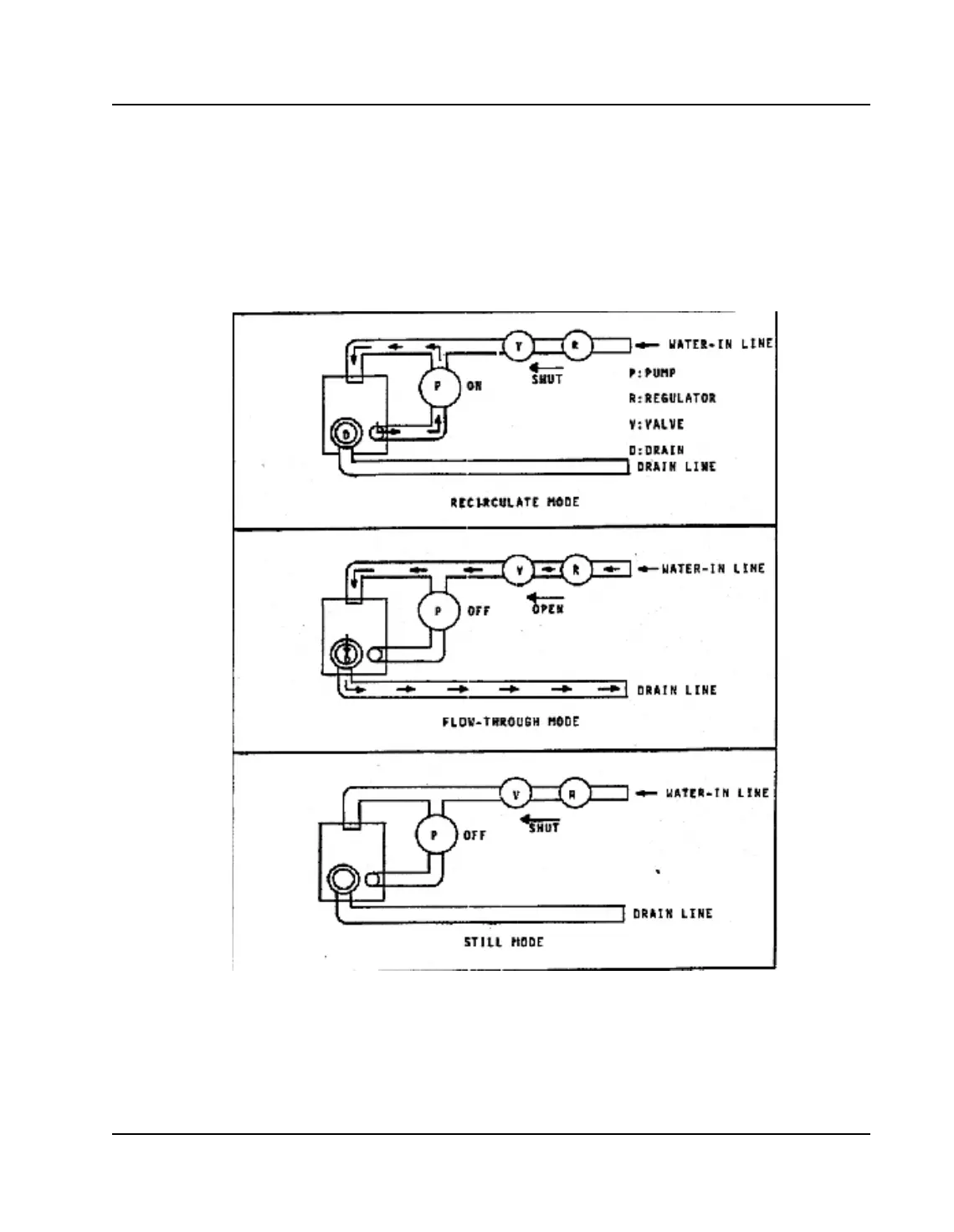

Figure 3.4: Fluid System Schematic
