2- Inputs and outputs
2�3�6 Digital outputs

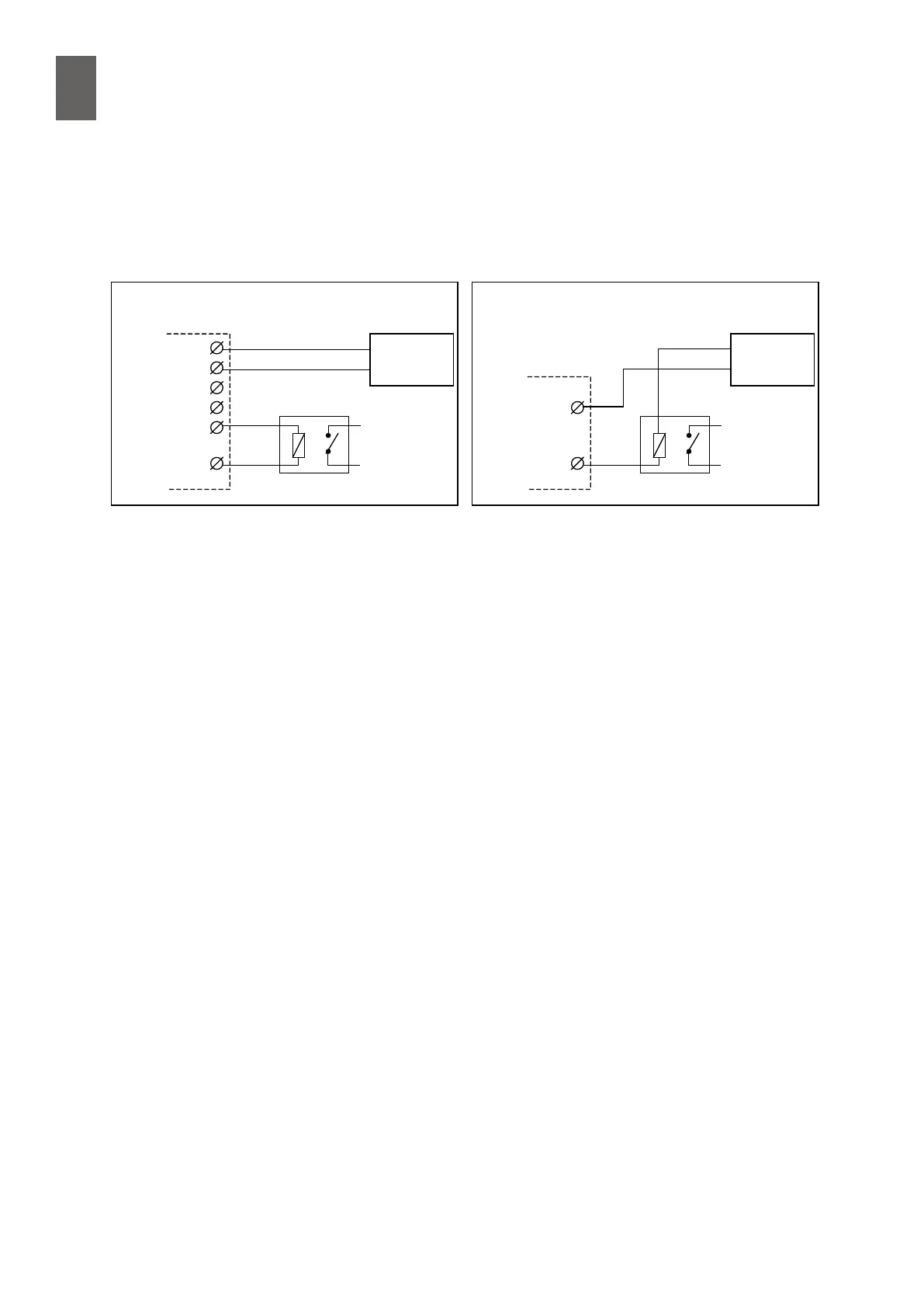

Digital outputs sink current to earth (GND). The output transistors can handle 36 V DC and 0.5 A. If
the WMPro has a 24 V AC/DC power supply, you can connect a supply voltage to the output relay,
either 12 or 24 V. Important: The maximum load is 100 mA.
GND
+24V
+12V in/out
GND
+24V out
DO1
Matning med 24V AC / DC
Manöver av utgångsrelä
Matad från WMPro
Manöver av utgångsrelä
Matad från egen strömkälla
24 VDC
Voltage supply 24V AC/DC
Output relay manoeuvre
Supplied from WMPro
Output relay manoevre
Supplied from external 24V DC source
