13
89
13 - Overviews

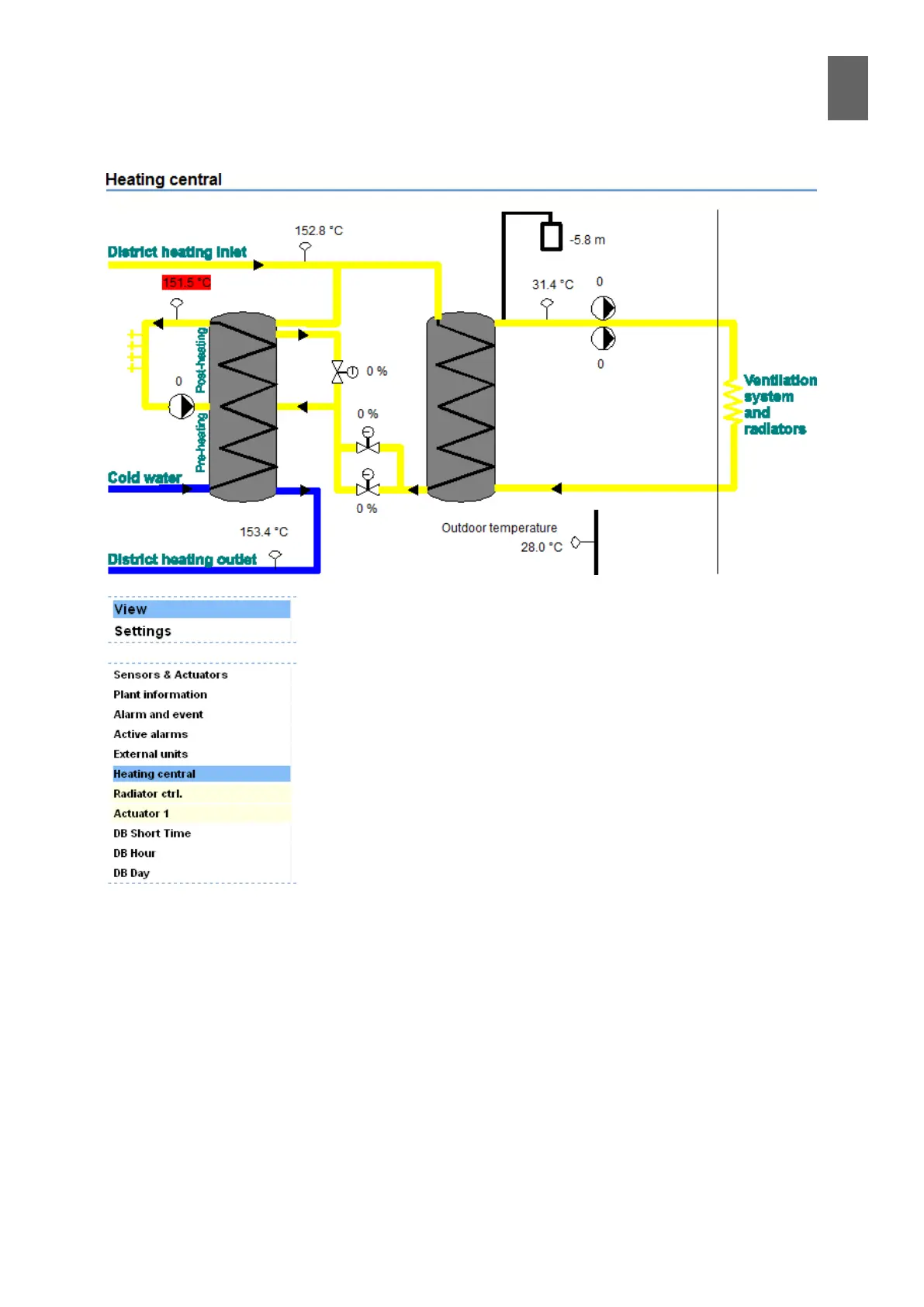

When you have nished, you need to update the browser. There is
now a new section under "View" named after the overview. Open the
overview and see how it looks.
If the overview includes a parameter or an alarm, you can click on it
to change or reset it.
If you want to make changes to the image, open Settings/Overview
and click on the image you want to edit. To edit an existing label,
click on it, make your changes, then save. You can add more labels at
any time.
13�3 Feedback
If you want the image to show a digital output in green when its value is 1, but the output does not
have its own feedback channel, you should select the same output as the feedback channel.
To display a digital output with a feedback connection to a digital input (e.g. a pump with feedback
in a controller), select the input as the object and the output as the feedback channel. In this case,
the label will be green when the input and output are both 1 and white when they are both 0. If the
digital input (the object) has an alarm (an alarm is added automatically during controller congura-
tion), the label will turn red if the alarm is triggered.
