14�1 Summary
When you congure a controller, the controller tool automatically
creates a summary for the controller. The summary contains all vari-
able parameters and curves. The page is named after the controller,
and appears under "View". If you are logged in as "view" you will only
be able to view the page. You cannot change any settings. To change
the settings you need to be logged in as "operator" or "cong".
14�1�1 Controller page

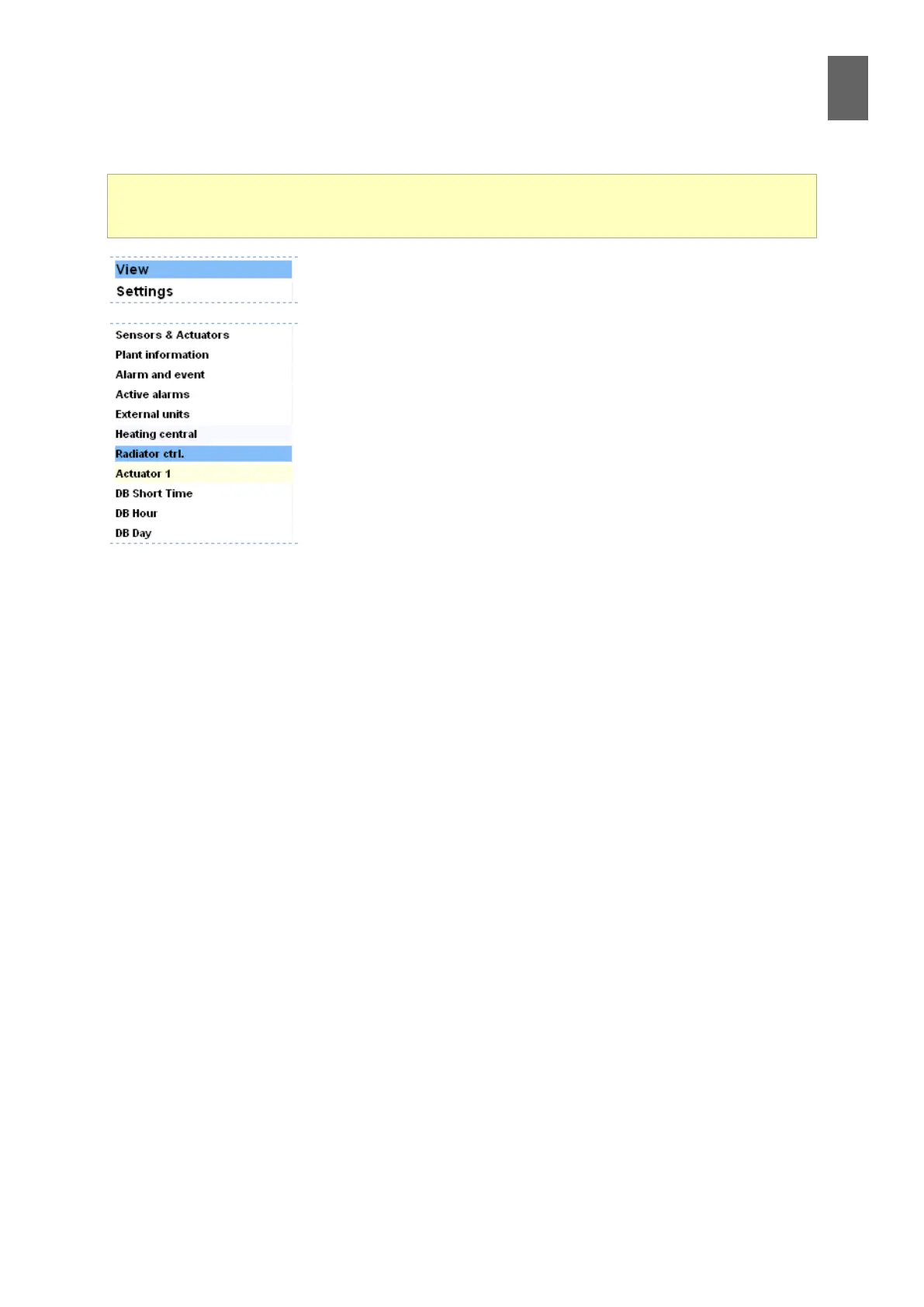

Turn to page 48 of this user guide to see the summary for the con-
troller we dened earlier. A controller page has two or three parts.
The controller data appears at the top of the page. You are not able
to modify this data. If there is a curve, it appears in the middle of the
page. You can use drag-and-drop to alter the breakpoints. For more
advanced curve settings, see section 8. Other adjustable parameters appear at the bottom of the
page. Every parameter has a eld where you can enter a new value, and an Update button. Impor-
tant: Each row must be updated separately�
If you create another function requiring parameters to be changed, you can generate a new sum-
mary for it. Alternatively, you can add it to an existing page.
A summary is a page containing the channels, parameters, databases and curves belonging, say,
to a controller. This section explains how to use and create a summary.
