6 - Controllers
6�1�1 Controller for heating centrals

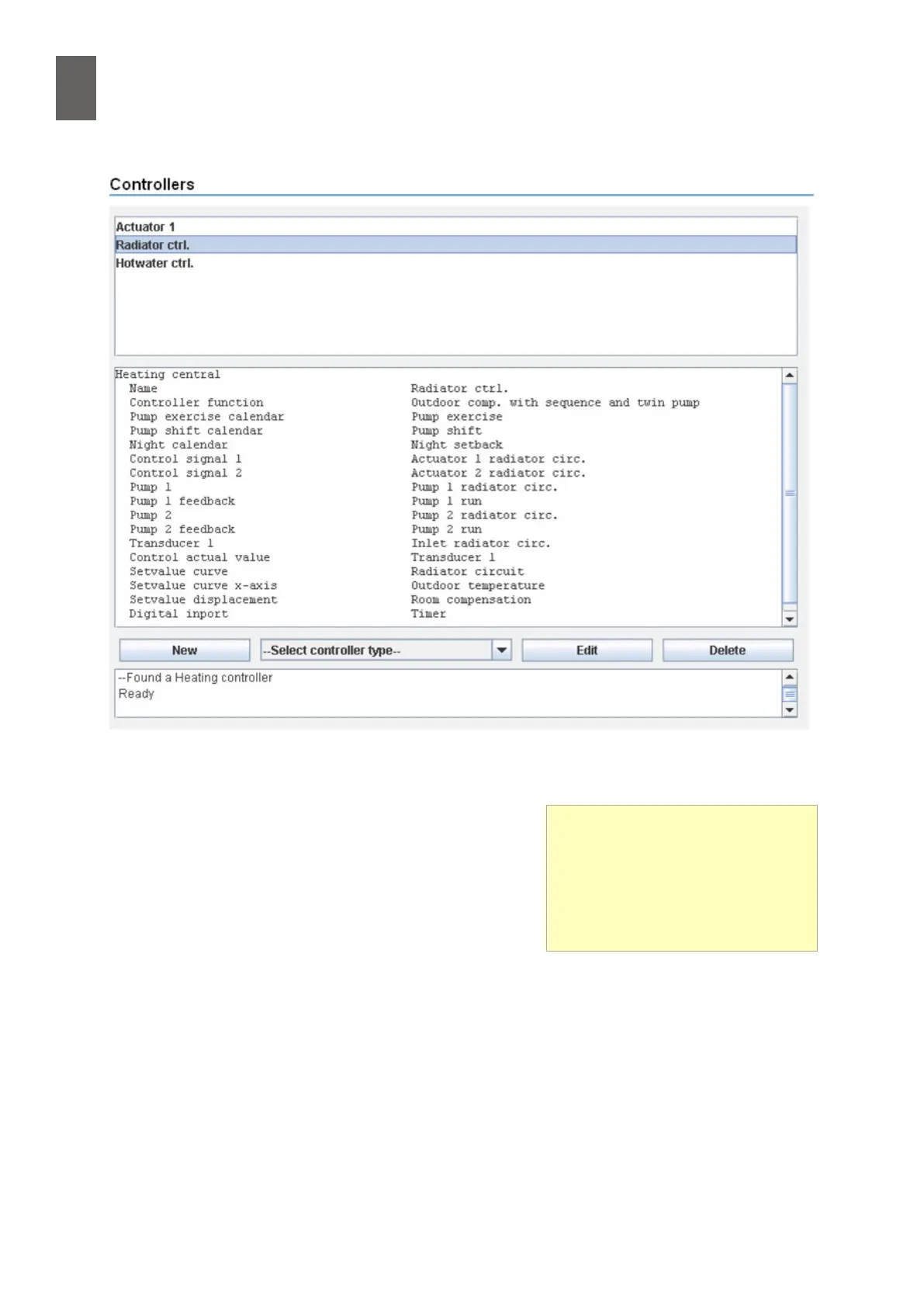

To illustrate, we are going to dene a new controller for a
heating central. Highlight Heating central and click New.
This section describes in detail how to congure a control-
ler in a heating central – for a radiator circuit with twin
pumps and two actuators in sequence, with a weekly day/
night programme, a pump exercise calendar and a pump
shift calendar. This conguration gives us the opportunity
to work our way through virtually all the settings. Name the controller and select the controller func-
tion – "Outdoor comp. with sequence and twin pump" in our example.
Select a pump exercise calendar, pump shift calendar and night calendar. You can either choose
from existing calendars or select New. Find out more about calendars in section 9.
Select the control outputs you want to use and how you want to display the control signal (V or %).
Important: The display setting must be the same as the output conguration�
Control functions
A heating controller has the fol-
lowing control functions: constant
or compensated, with or without
pump(s) and one or two actuators
in sequence.
Control functions: A heating central controller has the following control functions: constant or compensated,
with or without pump(s) and one or two actuators in sequence.
