Live view
General information on live image
Live view starts automatically when the device is
switched on. The live image function provides the option
of displaying live images and executing camera
commands for all cameras connected to the recorder.
This is the core function of the recorder, in addition to
playback.
Double-clicking an image displays the selected camera
image in full screen or switches back to the original view.
Live image function areas

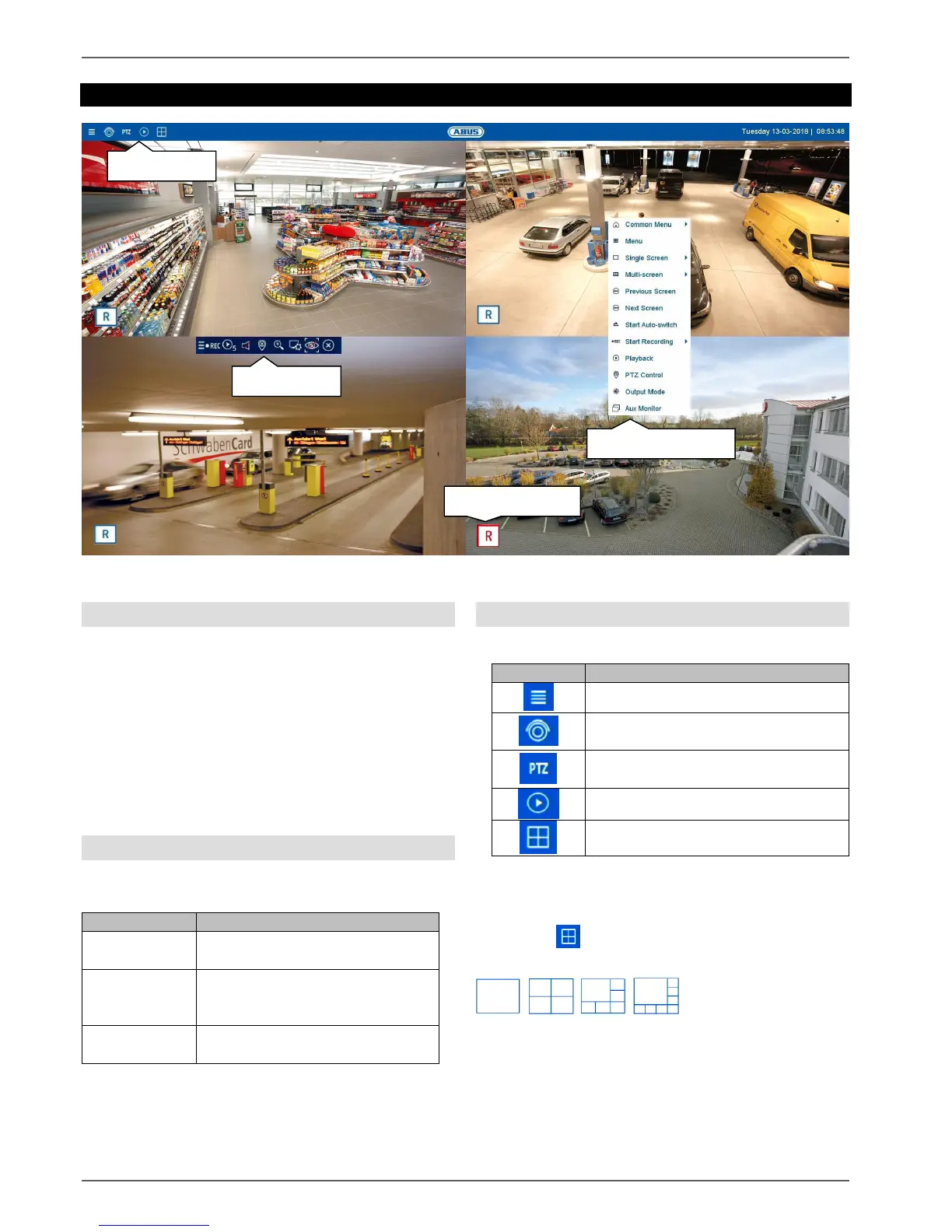

The live cast view is divided into the following function
areas:
Using the menu bar
The following options are available:
Multiview control
Click on the symbol to open multiview.
Various layouts are available:
Select a suitable layout the live view will be adjusted
accordingly. The settings which define the camera
positions can be individually programmed for each layout
in the configuration menu.
Parameter
Description
Menu bar
Global display of the configuration
and operating menus.
Action bar
Control camera commands and
carry out actions for the selected
camera (red frame)
Right-click
menu
Extended operating menu for
operating the live view.
Parameter
Description
Opens the configuration menu
Activates the live image view
(deactivated in the live image)
Switch to the PTZ control menu
(only with PTZ cameras)
Changes to playback view
Opens multiview
Action bar
Menu bar
Right-click menu
Recording status
