The following table describes the items in the previous figure.
The ensuing table for DSCP Mapping Information settings are informational only: DSCP
and Mapping to Queue.
The ensuing table for Queue Mapping Information settings are informational only: Queue
and Mapping to DSCP.
IP Precedence Mapping
The IP Precedence Mapping allows you to set IP Precedence mapping.
To access this page, click QoS > General > IP Precedence Mapping.

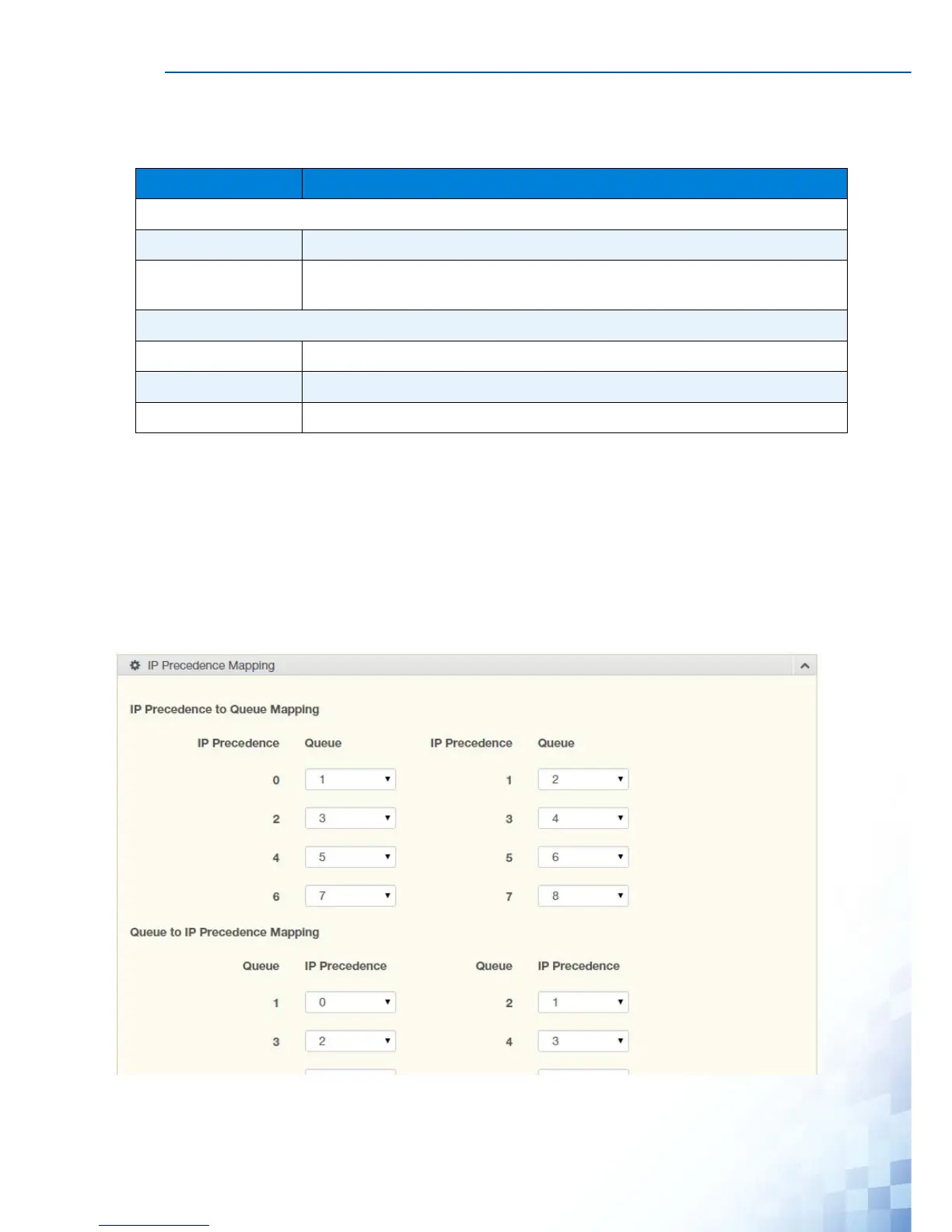

Figure 4-74. QoS > General > IP Precedence Mapping
Table 4-71. QoS > General > DSCP Mapping
Item Description
DSCP to Queue Mapping
DSCP Enter the DSCP entry to define the precedence values.
Queue Click the drop-down menu to select the queue designation for the DSCP
value.
Queue to DSCP Mapping
Queue Displays the queue value for the DSCP map.
DSCP Enter the DSCP entry to define the precedence values.
Apply Click Apply to save the values and update the screen.
