SWITCH INSTALLATION
15
3. Hold the handle on the transceiver and pull the transceiver out of the slot.

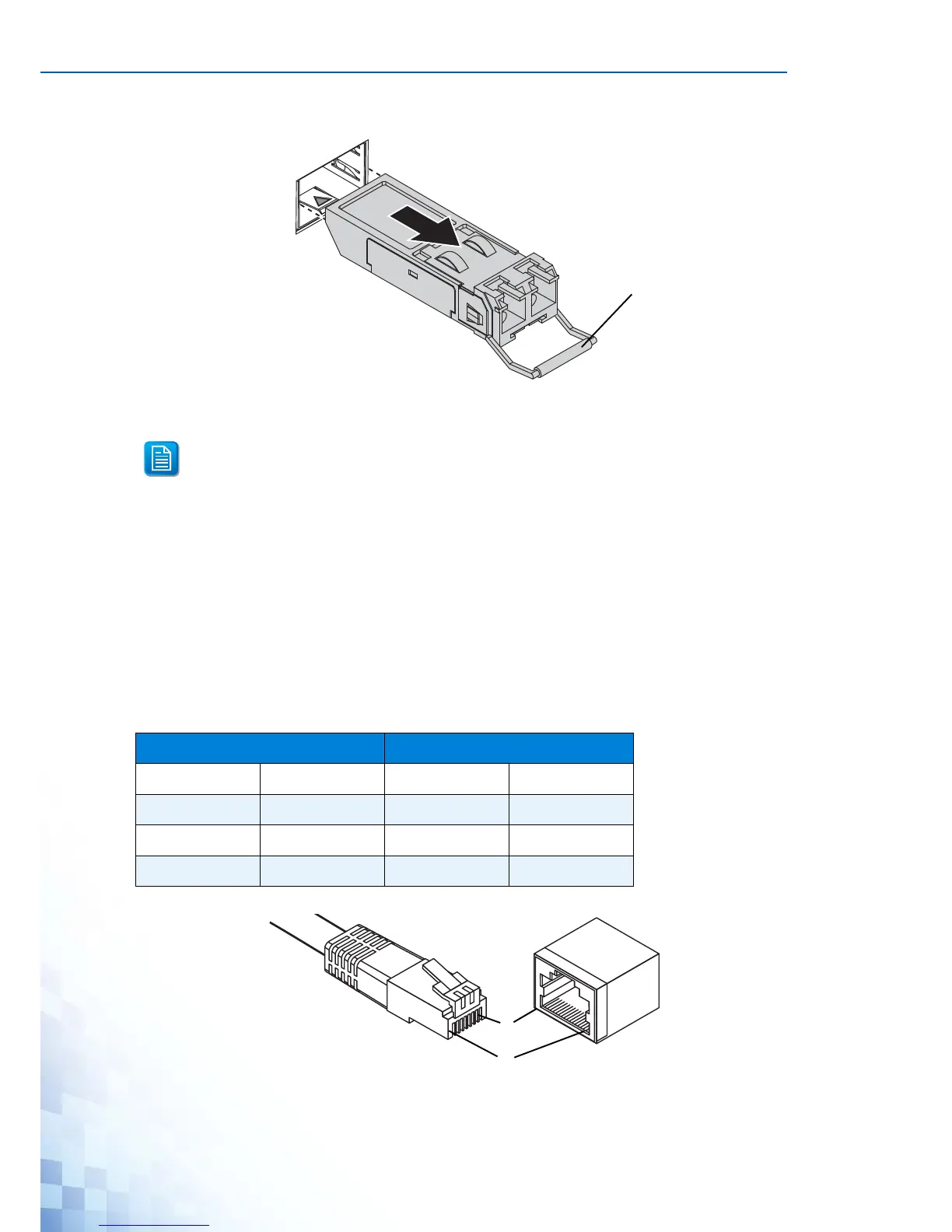

Figure 2-7. Removing an SFP Transceiver
2.7. Connecting the Switch to Ethernet Ports
2.7.1 RJ45 Ethernet Cable Wiring
For RJ45 connectors, data-quality, twisted pair cabling (rated CAT5 or better) is recom-
mended. The connector bodies on the RJ45 Ethernet ports are metallic and connected to
the GND terminal. For best performance, use shielded cabling. Shielded cabling may be
used to provide further protection.
Figure 2-8. Ethernet Plug & Connector Pin Position
Maximum cable length: 100 meters (328 ft.) for 10/100/1000BaseT.
Replace the dust plug on the slot if you are not installing a transceiver. The dust
plug protects hardware from dust contamination.
Table 2-1. RJ45 Ethernet Wiring for Reference
Straight-thru Cable Wiring Cross-over Cable Wiring
Pin 1 Pin 1 Pin 1 Pin 3
Pin 2 Pin 2 Pin 2 Pin 6
Pin 3 Pin 3 Pin 3 Pin 1
Pin 6 Pin 6 Pin 6 Pin 2
