MANAGING SWITCH
50
4.5.4 802.1Q VLAN
The 802.1Q VLAN feature allows for a single VLAN to support multiple VLANs. With the
802.1Q feature you can preserve VLAN IDs and segregate different VLAN traffic.
The 802.1Q VLAN tag feature encapsulates the 802.1Q VLAN tagging within another
802.1Q VLAN tag. The outer tag is assigned following the AP group, while the inner VLAN
ID is assigned dynamically by the AAA server.
VLAN Management
The management of VLANs is available through the VLAN Settings page. Through this page
you can add or delete VLAN listings and add a prefix name to an added entry.
To access this page, click L2 Switching > 802.1Q VLAN > VLAN Management.

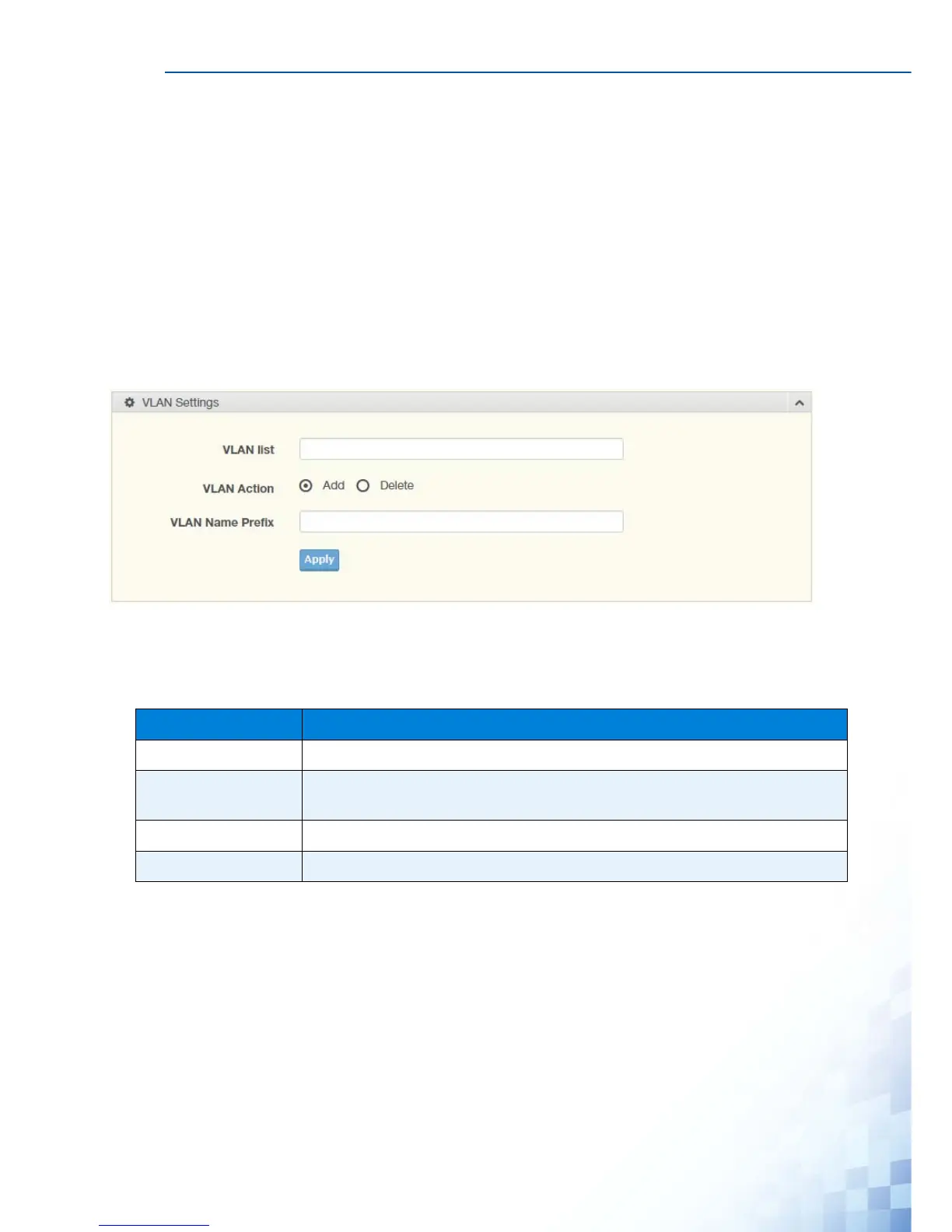

Figure 4-22. L2 Switching > 802.1Q VLAN > VLAN Management
The following table describes the items in the previous figure.
The ensuing table for VLAN Table settings are informational only: VLAN ID, VLAN Name,
VLAN Type and Edit (click to enter VLAN name).
Table 4-20. L2 Switching > 802.1Q VLAN > VLAN Management
Item Description
VLAN list Enter the name of the VLAN entry to setup.
VLAN Action Click the radio button to add or delete the VLAN entry shown in the
previous field.
VLAN Name Prefix Enter the prefix to be used by the VLAN list entry in the previous field.
Apply Click Apply to save the values and update the screen.
