The following table describes the items in the previous figure.
The ensuing table for IP Precedence Mapping Information settings are informational only:
IP Precedence and Mapping to Queue.
The ensuing table for Queue Mapping Information settings are informational only: Queue
and Mapping to IP Precedence.
4.8.2 QoS Basic Mode
Quality of Service (QoS) allows to give preferential treatment to certain types of traffic at the
expense of others. Without QoS, the switch offers best-effort service to each packet,
regardless of the packet contents or size sending the packets without any assurance of
reliability, delay bounds, or throughput.
QoS mode supports two modes: 802.1p and DSCP.
Global Settings
The Global Settings page allows you to configure the trust mode to a port selection.
To access this page, click QoS > QoS Basic Mode > Global Settings.
The function is only available when QoS Properties is set to Basic.

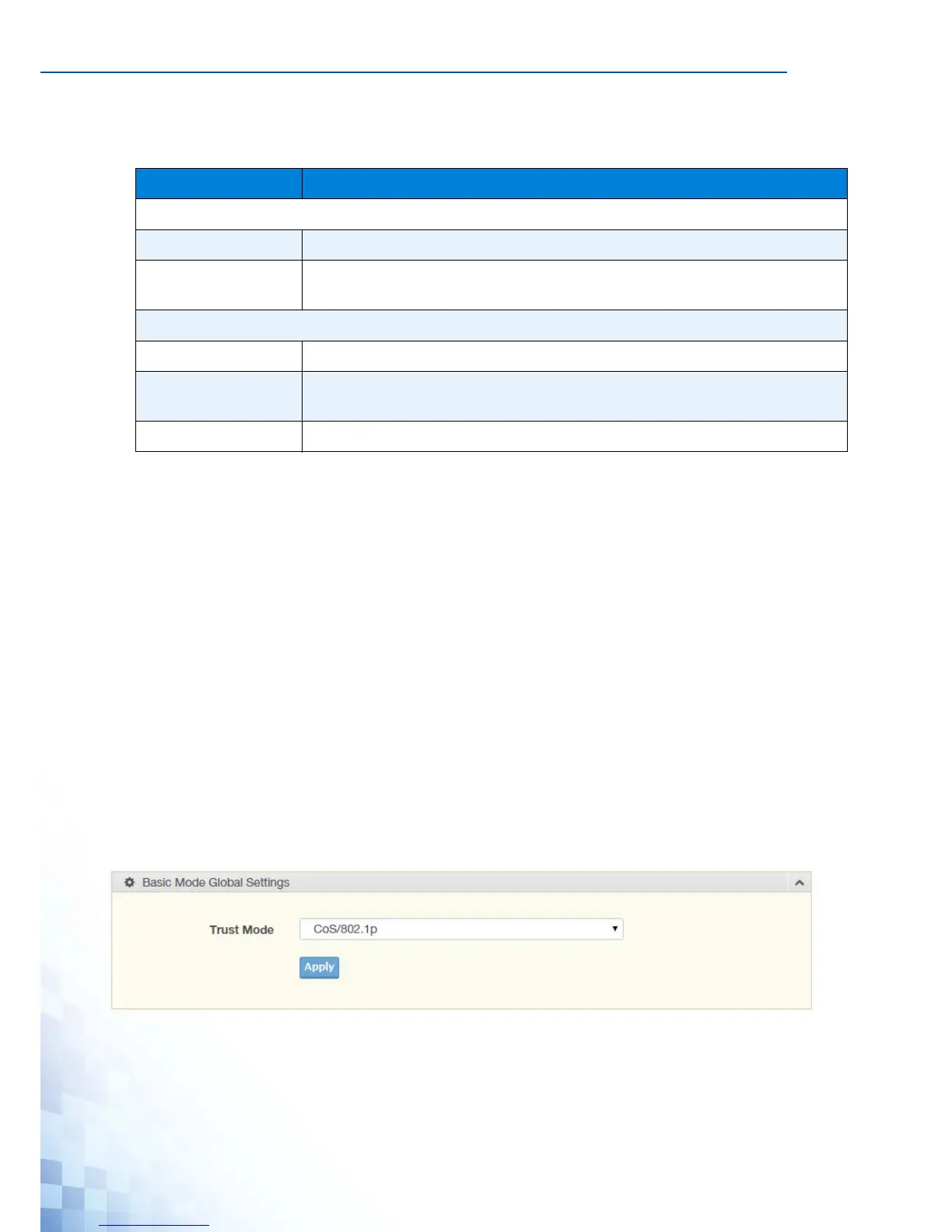

Figure 4-75. QoS > QoS Basic Mode > Global Settings
Table 4-72. QoS > General > IP Precedence Mapping
Item Description
IP Precedence to Queue Mapping
IP Precedence Displays the IP precedence value for the queue map.
Queue Click the drop-down menu to map a queue value to the selected IP
precedence.
Queue to IP Precedence Mapping
Queue Displays the queue entry for mapping IP precedence values.
IP Precedence Click the drop-down menu to map an IP precedence value to the selected
queue.
Apply Click Apply to save the values and update the screen.
