4.9. Management
4.9.1 LLDP
LLDP is a one-way protocol without request/response sequences. Information is advertised
by stations implementing the transmit function, and is received and processed by stations
implementing the receive function.
LLDP System Settings
The LLDP System Settings allows you to configure the status (enabled or disabled) for the
protocol, set the interval for frame transmission, set the hold time multiplier and the re-
initialization delay.
To access this page, click Management > LLDP > LLDP System Settings.

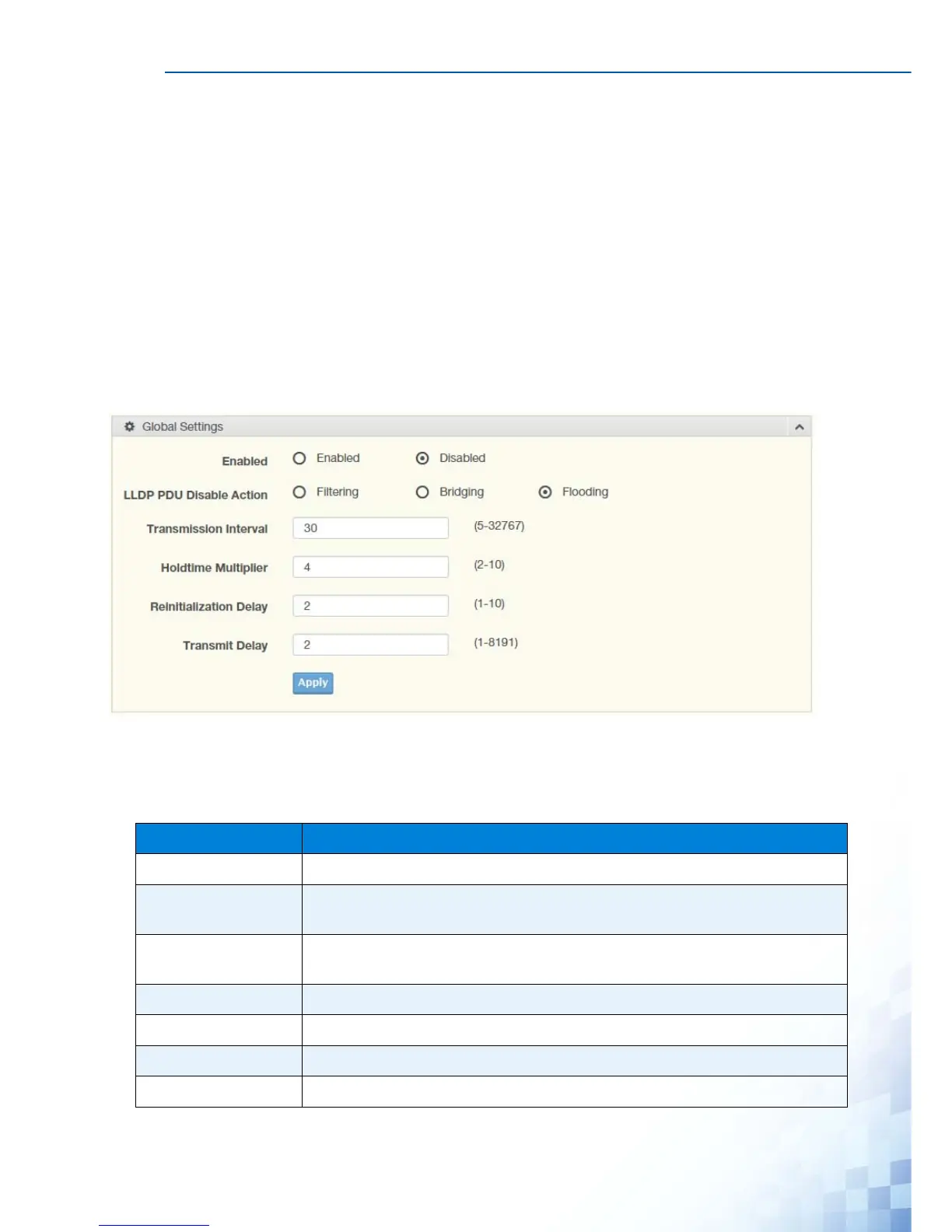

Figure 4-80. Management > LLDP > LLDP System Settings
The following table describes the items in the previous figure.
Table 4-78. Management > LLDP > LLDP System Settings
Item Description
Enabled Click Enabled or Disabled to set the Global Settings state.
LLDP PDU Disable
Action
Click to select the LLDP PDU handling action when LLDP is globally
disabled. Options include: Filtered, Bridged, or Flooded.
Transmission
Interval
Select the interval at which frames are transmitted. The default is 30
seconds, and the valid range is 5 to 32768 seconds.
Holdtime Multiplier Select the multiplier on the transmit interval to assign to TTL.
Reinitialization Delay Select the delay length before re-initialization.
Transmit Delay Select the delay after an LLDP frame is sent.
Apply Click Apply to save the values and update the screen.
