Advantech EKI-7428G Series User Manual

PRODUCT OVERVIEW
5

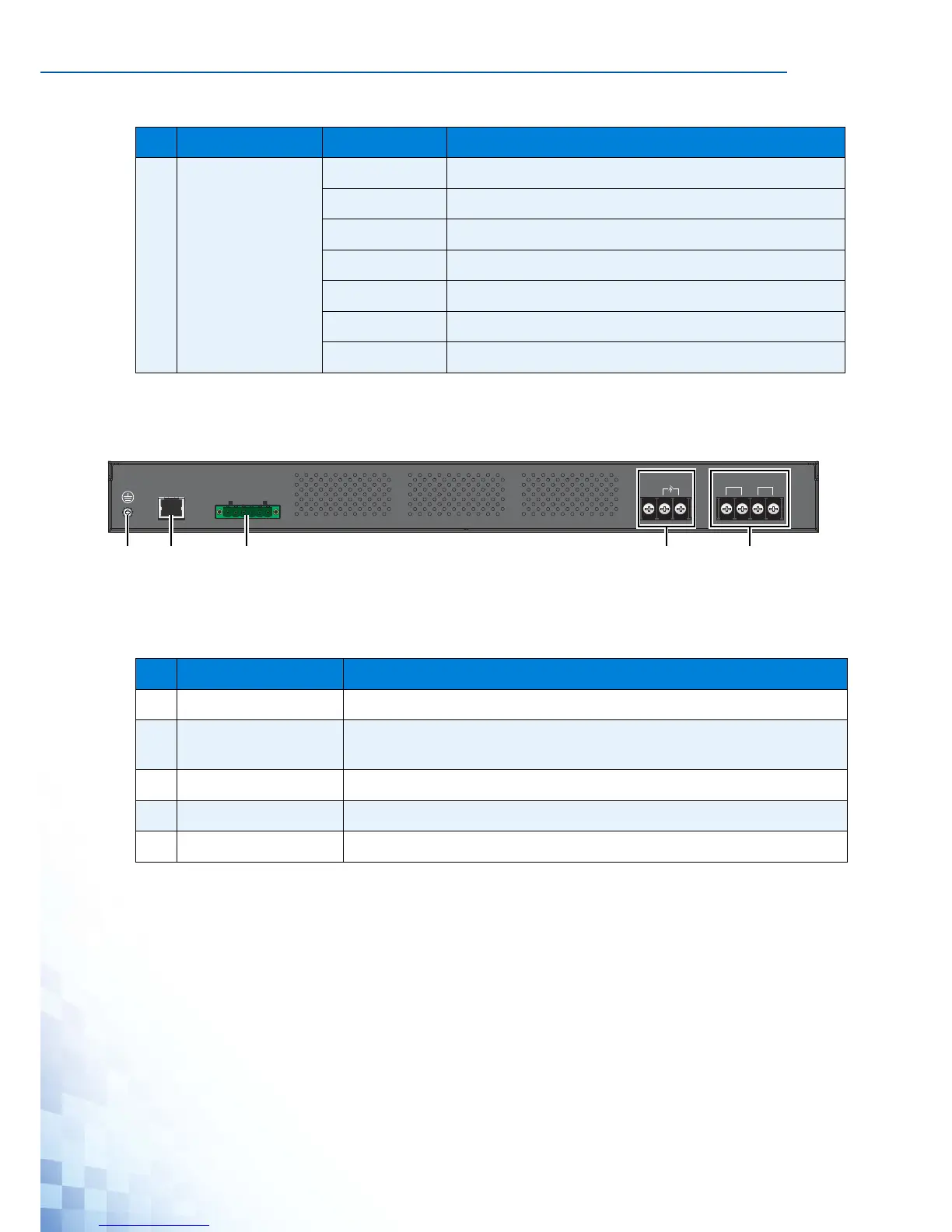

1.2.2 Rear View
Figure 1-3. Rear View
11 LNK/ACT Solid green Current link speed is 1000M.
Blink green Packet transmit and receive.
Off No link.
Solid amber Current link speed is 100/10M.
Blink amber Packet transmit and receive.
Off No link.
Solid green Connect to PD and supply power.
Table 1-4. Rear View
No. Item Description
1 Ground terminal Screw terminal used to ground chassis.
2 Console serial port Console cable port to COM port (DB9 male) on computer to RS232
managed switch (RJ45 female).
3 DI/DO Connect cabling for power and alarm wiring
4 P-Fail block Connect cabling for alarm wiring.
5 Power block Connect cabling for power wiring.
Table 1-3. System LED Panel (Continued)
No. LED Name LED Color Description
Console DI / DO
V2- V2+ V1- V1+
P-Fail
PWR2 PWR1
41 52 3
