4.5.12 X-Ring Pro
The X-Ring Pro function provides an improvement over Spanning Tree and Rapid Spanning
Tree and a rapid auto recovery in the event that the network suffers a corrupt or broken link
and prevents network loops.
X-Ring Pro Settings
The X-Ring Pro Settings page allows you to configure the status (enabled or disabled) of the
function.
To access this page, click L2 Switching > X-Ring Pro > X-Ring Pro Settings.

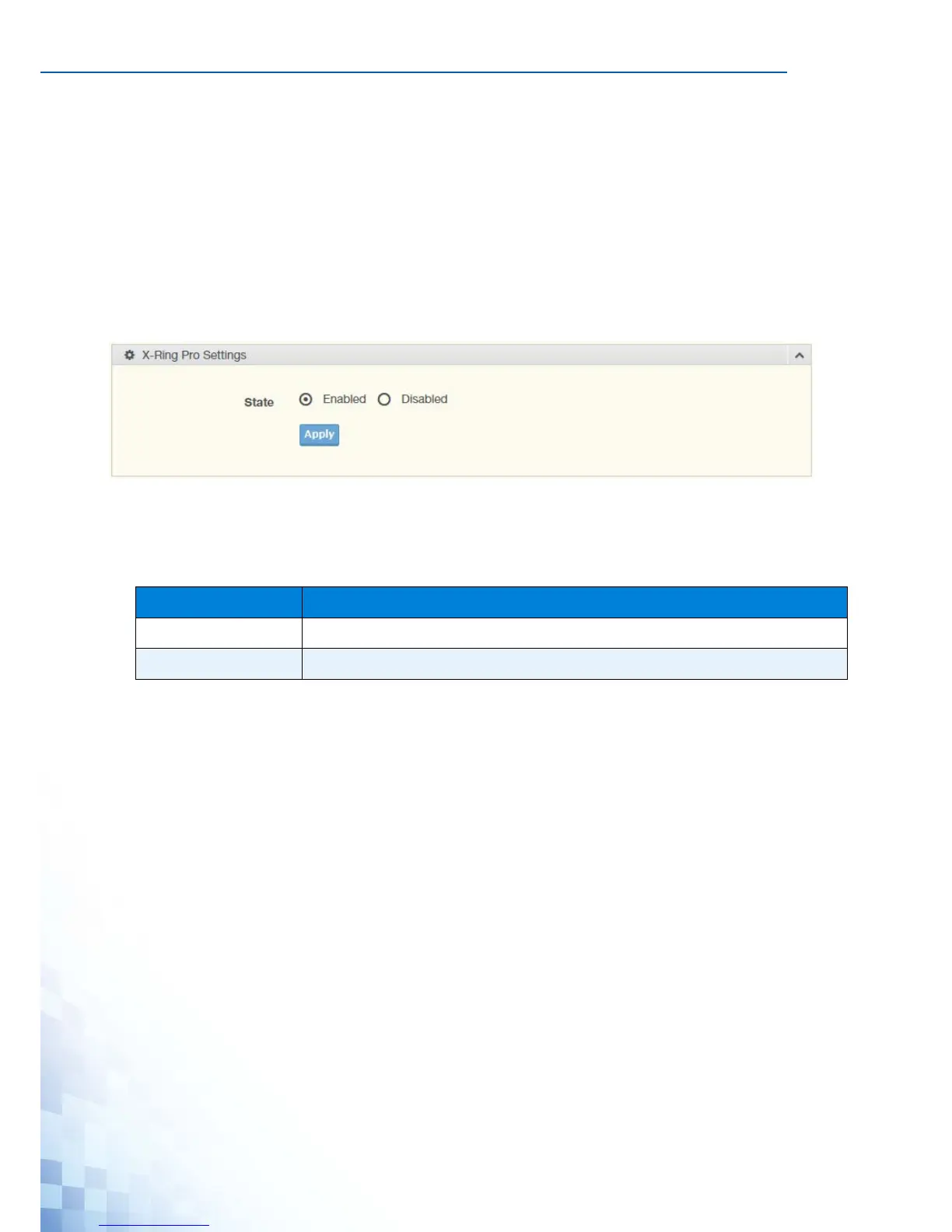

Figure 4-47. L2 Switching > X-Ring Pro > X-Ring Pro Settings
The following table describes the items in the previous figure.
The ensuing table for Information settings are informational only: X-Ring Pro State.
Table 4-45. L2 Switching > X-Ring Pro > X-Ring Pro Settings
Item Description
State Select Enabled or Disabled to setup the X-Ring Pro mode.
Apply Click Apply to save the values and update the screen.
