STP Port Settings
The STP Port Settings page allows you to configure the ports for the setting, port’s
contribution, configure edge port, and set the status of the BPDU filter.
To access this page, click L2 Switching > Spanning Tree > STP Port Settings.

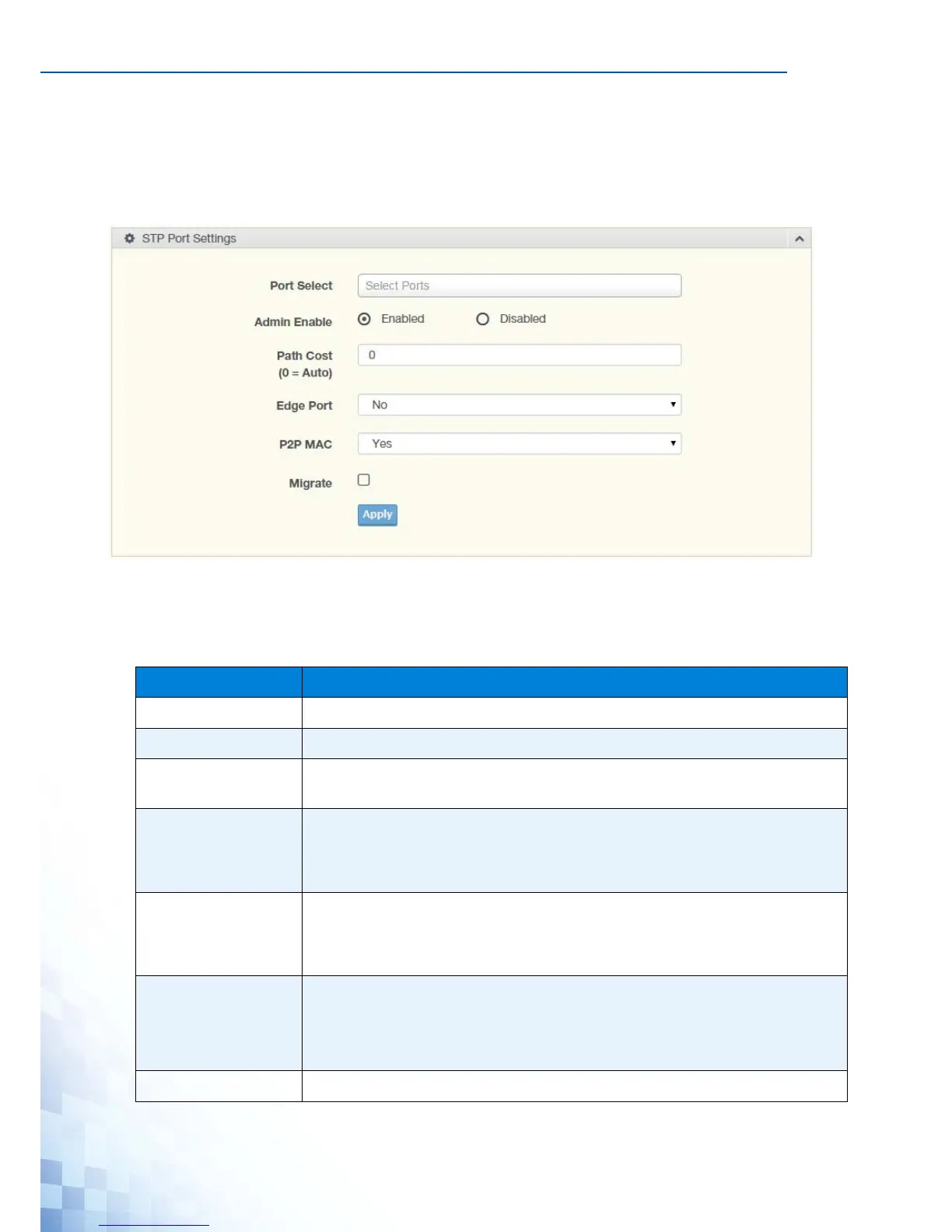

Figure 4-39. L2 Switching > Spanning Tree > STP Port Settings
The following table describes the items in the previous figure.
Table 4-37. L2 Switching > Spanning Tree > STP Port Settings
Item Description
Port Select Select the port list to specify the ports that apply to this setting.
Admin Enable Select Enabled or Disabled to setup the admin profile for the STP port.
Path Cost (0 = Auto) Set the port’s cost contribution. For a root port, the root path cost for the
bridge. (0 means Auto).
Edge Port Click the drop-down menu to set the edge port configuration.
No: Force to false state (as link to a bridge).
Yes: Force to true state (as link to a host).
P2P MAC Click the drop-down menu to set the Point-to-Point port configuration.
No: Force to false state.
Yes: Force to true state.
Migrate Click the check box to enable the migrate function.
Forces the port to use the new MST/RST BPDUs, requiring the switch to
test on the LAN segment. for the presence of legacy devices, which are not
able to understand the new BPDU formats.
Apply Click Apply to save the values and update the screen.
