4.5. L2 Switching
4.5.1 Port Configuration
Port Configuration describes how to use the user interface to configure LAN ports on the
switch.
To access this page, click L2 Switching > Port Configuration.

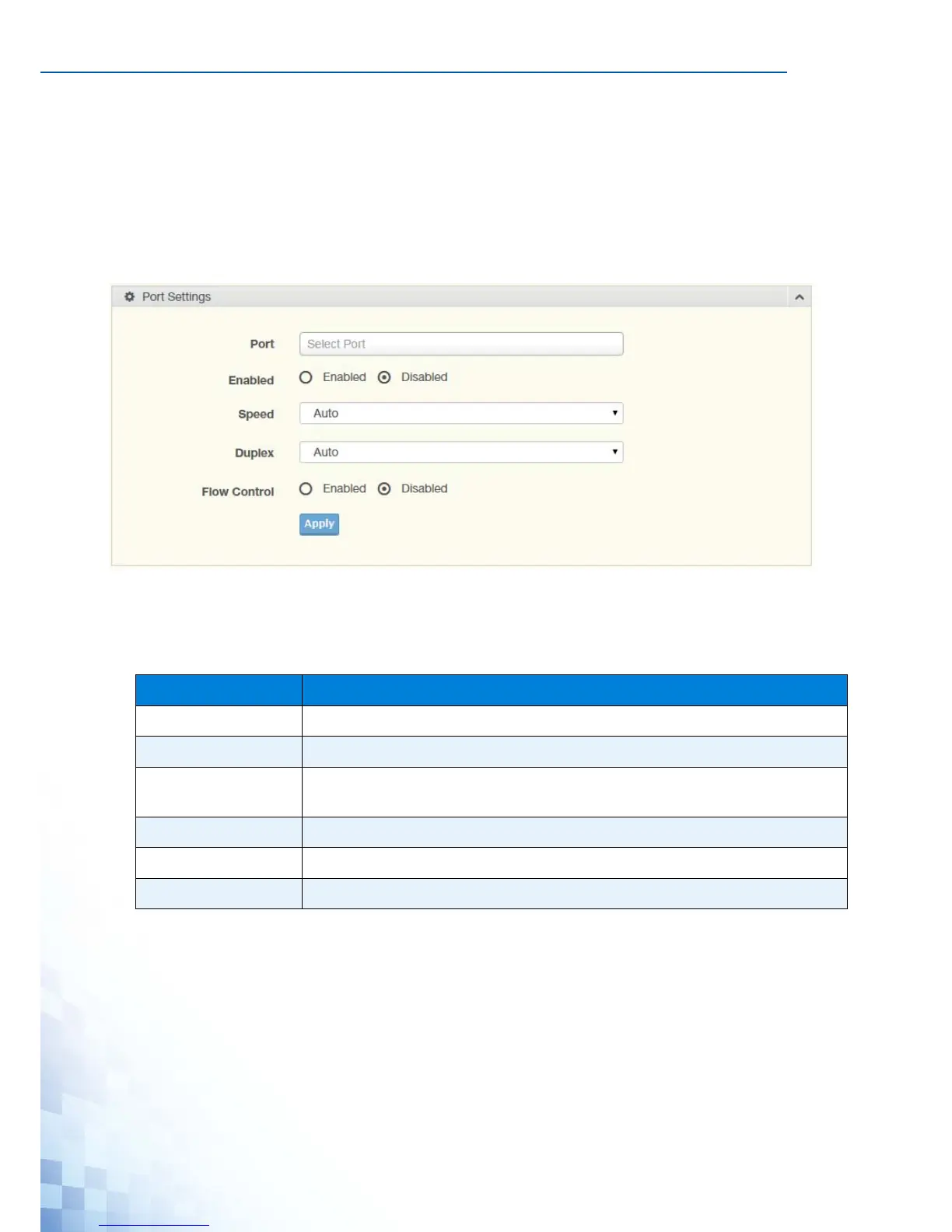

Figure 4-15. L2 Switching > Port Configuration
The following table describes the items in the previous figure.
The ensuing table for Port Status settings are informational only: Port, Edit (click to enter
description), Enable State, Link Status, Speed, Duplex, FlowCtrl Config and FlowCtrl Status.
Table 4-13. L2 Switching > Port Configuration
Item Description
Port Click the drop-down menu to select the port for the L2 Switch setting.
Enabled Click the radio-button to enable or disable the Port Setting function.
Speed Click the drop-down menu to select the port speed: Auto, Auto-10M, Auto-
100M, Auto-1000M, Auto-10/100M, 10M, 100M, or 1000M.
Duplex Click the drop-down menu to select the duplex setting: Half or Full.
Flow Control Click the radio button to enable or disable the flow control function.
Apply Click Apply to save the values and update the screen.
