LACP Port Settings
Link Aggregation Control Protocol (LACP) provides a method to control the bundling of
several physical ports together to form a single logical channel. By configuring the LACP
function, the switch can negotiate an automatic bundling of links by sending LACP packets
to the peer device (also implementing LACP).
To access this page, click L2 Switching > Link Aggregation > LACP Port Settings.

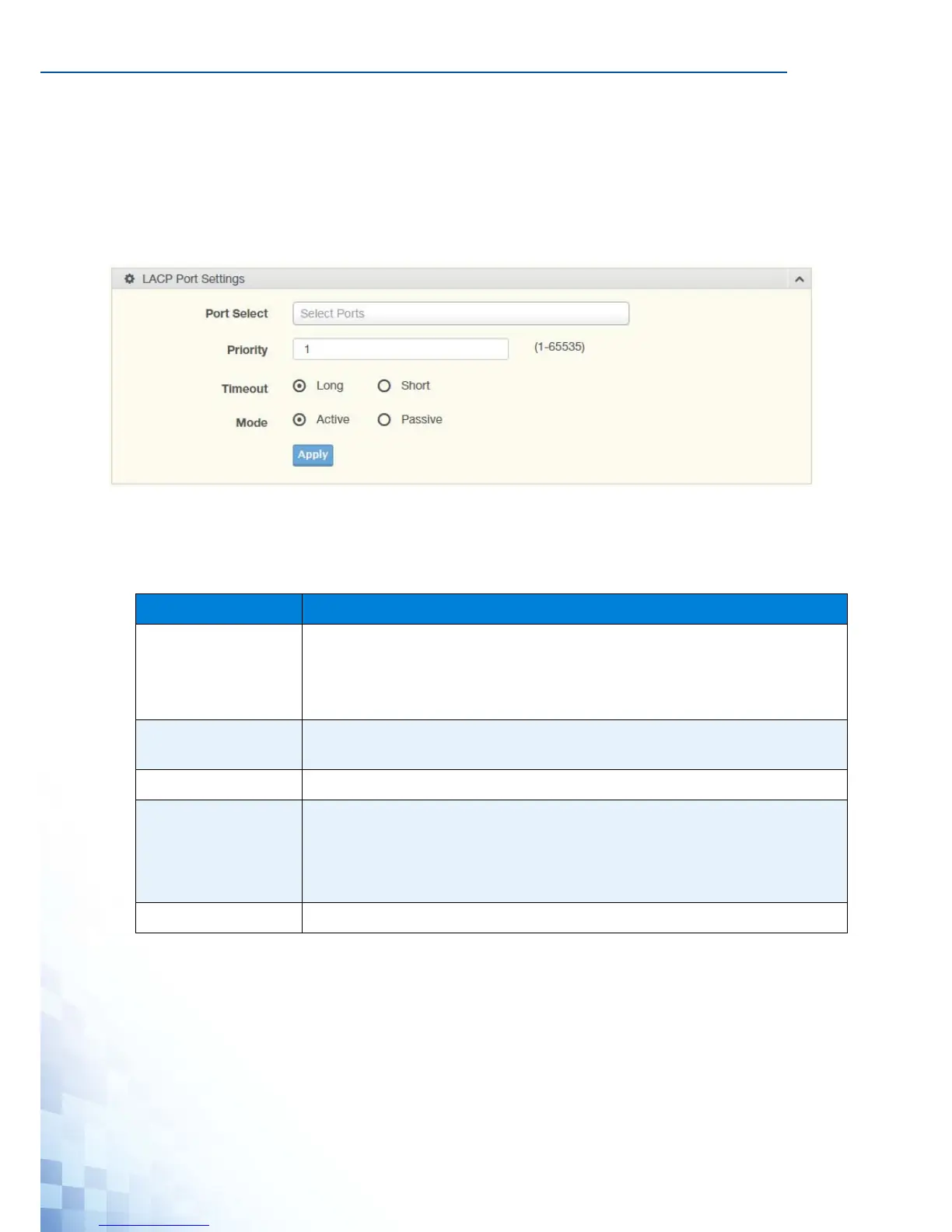

Figure 4-21. L2 Switching > Link Aggregation > LACP Port Settings
The following table describes the items in the previous figure.
The ensuing table for LACP Port Information settings are informational only: Port Name,
Priority, Timeout and Mode.
Table 4-19. L2 Switching > Link Aggregation > LACP Port Settings
Item Description
Port Select Select a port for the LACP Port Settings. The listed available settings are:
FE1-FE8, GE1-GE2.
However, the available settings are dependent on the connected LACP
device and may not be listed as displayed in the current figure.
Priority Enter a variable (1 to 65535) to assign a priority to the defined port selec-
tion.
Timeout Click the radio button to select a long or short timeout period.
Mode Click the radio button to select the setting mode: Active or Passive.
Active: Enables LACP unconditionally.
Passive: Enables LACP only when an LACP device is detected (default
state).
Apply Click Apply to save the values and update the screen.
