4.10. Diagnostics
Through the Diagnostics function configuration of settings for the switch diagnostics is
available.
4.10.1 Cable Diagnostics
The Cable Diagnostics page allows you to select the port for applying a copper test.
To access this page, click Diagnostics > Cable Diagnostics.

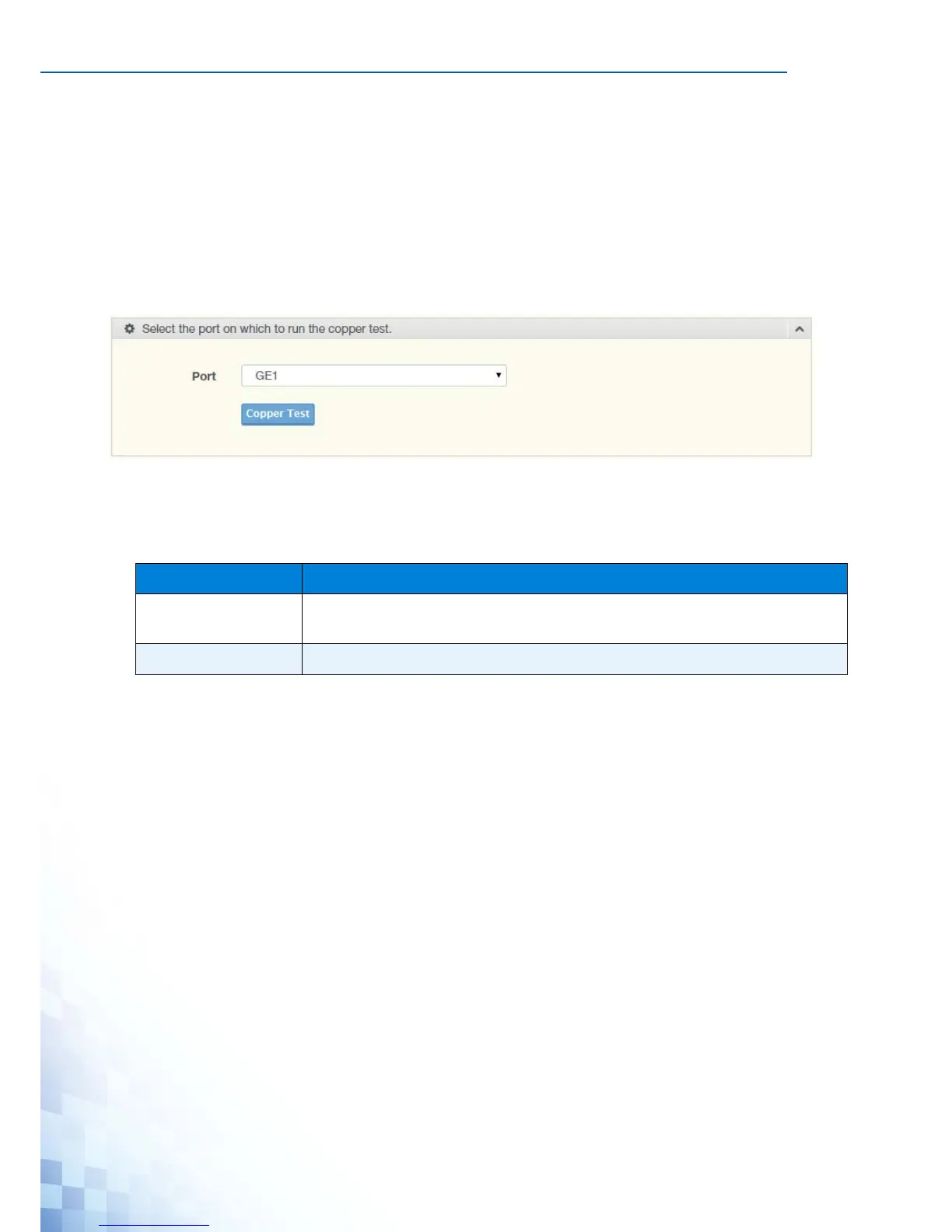

Figure 4-104. Diagnostics > Cable Diagnostics
The following table describes the items in the previous figure.
The ensuing table for Test Result settings are informational only: Port, Channel A, Cable
Length A, Channel B, Cable Length B, Channel C, Cable Length C, Channel D and Cable
Length D.
Table 4-102. Diagnostics > Cable Diagnostics
Item Description
Port Click the drop-down menu to select a pre-defined port for diagnostic
testing. Giga ports are displayed with a channel A to D designation.
Copper Test Click Copper Test to display the test result for the selected port.
