Egress Queue
The Egress Queue page allows you to set the egress bandwidth parameters.
To access this page, click QoS > Rate Limit > Egress Queue.

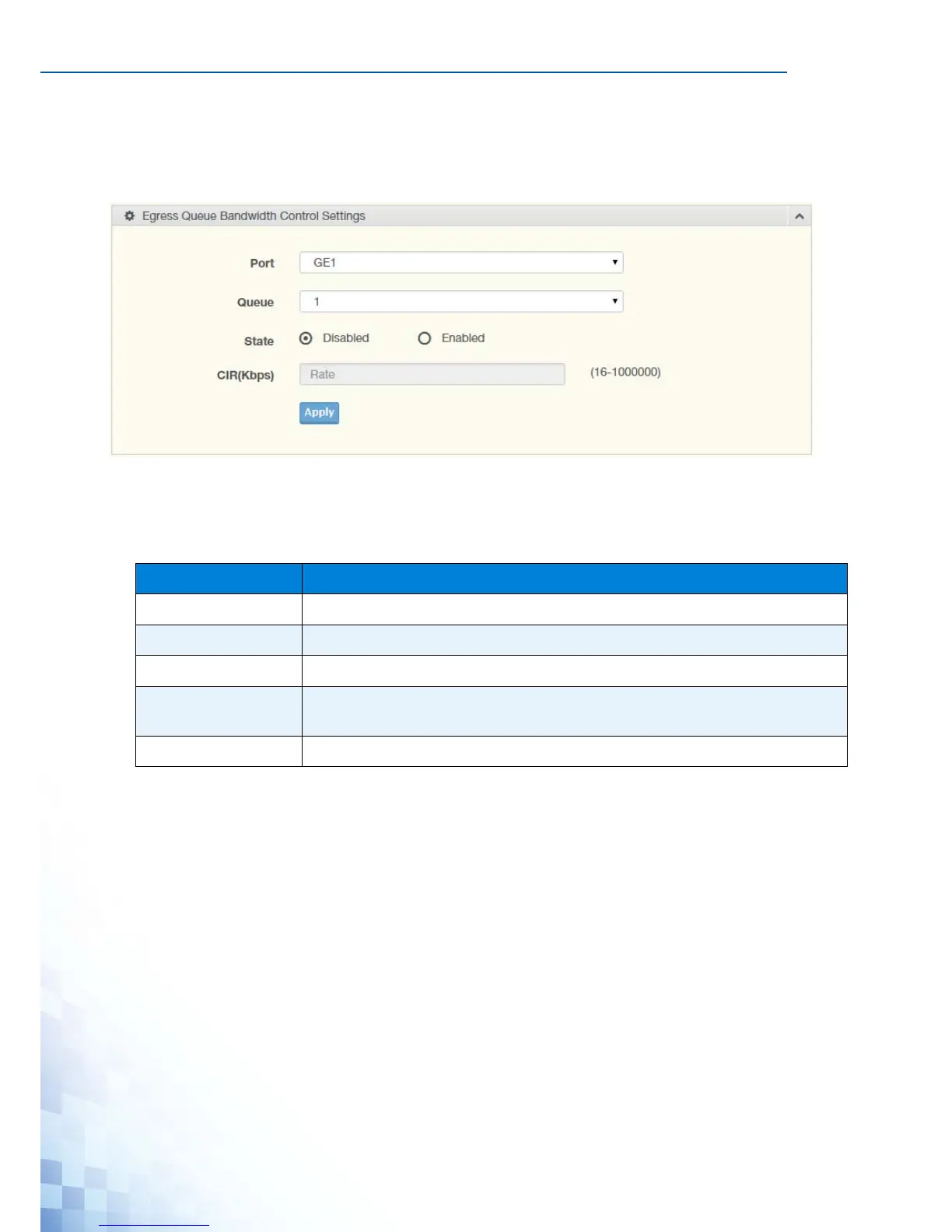

Figure 4-79. QoS > Rate Limit > Egress Queue
The following table describes the items in the previous figure.
The ensuing table for FE1 Egress Per Queue Status settings are informational only:
Queue Id and Egress Rate Limit (Kbps).
Table 4-77. QoS > Rate Limit > Egress Queue
Item Description
Port Click the drop-down menu to select the port to define the Egress queue.
Queue Click the drop-down menu to set the queue order for the Egress setting.
State Click Disabled or Enabled to set the Egress queue state.
CIR (Kbps) Enter the value in Kbps (16 to 1000000) to set the CIR rate for the Egress
queue.
Apply Click Apply to save the values and update the screen.
