PVID Settings
The PVID Settings page allows you to designate a PVID for a selected port, define the
accepted type and enable/disable the ingress filtering.
To access this page, click L2 Switching > 802.1Q VLAN > PVID Settings.

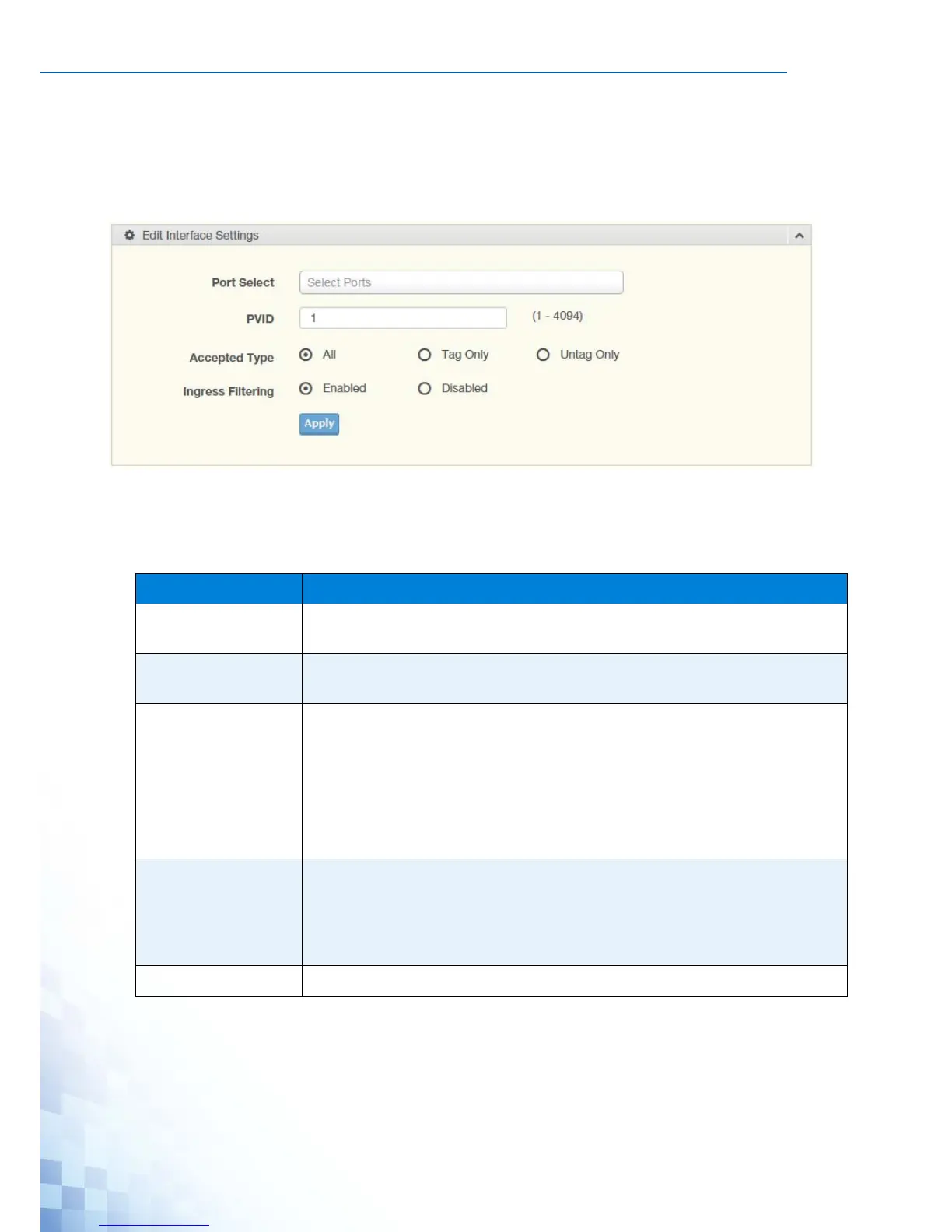

Figure 4-23. L2 Switching > 802.1Q VLAN > PVID Settings
The following table describes the items in the previous figure.
The ensuing table for Port VLAN Status settings are informational only: Port, Interface
VLAN Mode, PVID, Accept Frame Type and Ingress Filtering.
Table 4-21. L2 Switching > 802.1Q VLAN > PVID Settings
Item Description
Port Select Click the drop-down menu to select a port and edit its settings: FE1-FE8,
GE1-GE2, or Trunk1 - Trunk8.
PVID Enter the VLAN ID you want assigned to untagged or priority tagged
frames received on this port. The value ranges 1 to 4094. The default is 1.
Accepted Type Click the radio button to specify which frames to forward.
Tag Only discards any untagged or priority tagged frames.
Untag Only discards any tagged frames.
All accepts all untagged and tagged frames.
Whichever you select, VLAN tagged frames are forwarded in accordance
with the IEEE 802.1Q VLAN standard. The default is All.
Ingress Filtering Click the radio button to specify how you want the port to handle tagged
frames. If you enable Ingress Filtering, a tagged frame will be discarded if
this port is not a member of the VLAN identified by the VLAN ID in the tag.
If you select Disabled, all tagged frames will be accepted. The default is
Disabled.
Apply Click Apply to save the values and update the screen.
