MST Instance Priority Settings
The MST Instance Priority Settings allows you to specify the MST instance and the bridge
priority in that instance.
To access this page, click L2 Switching > Spanning Tree > MST Instance Priority Set-
tings.

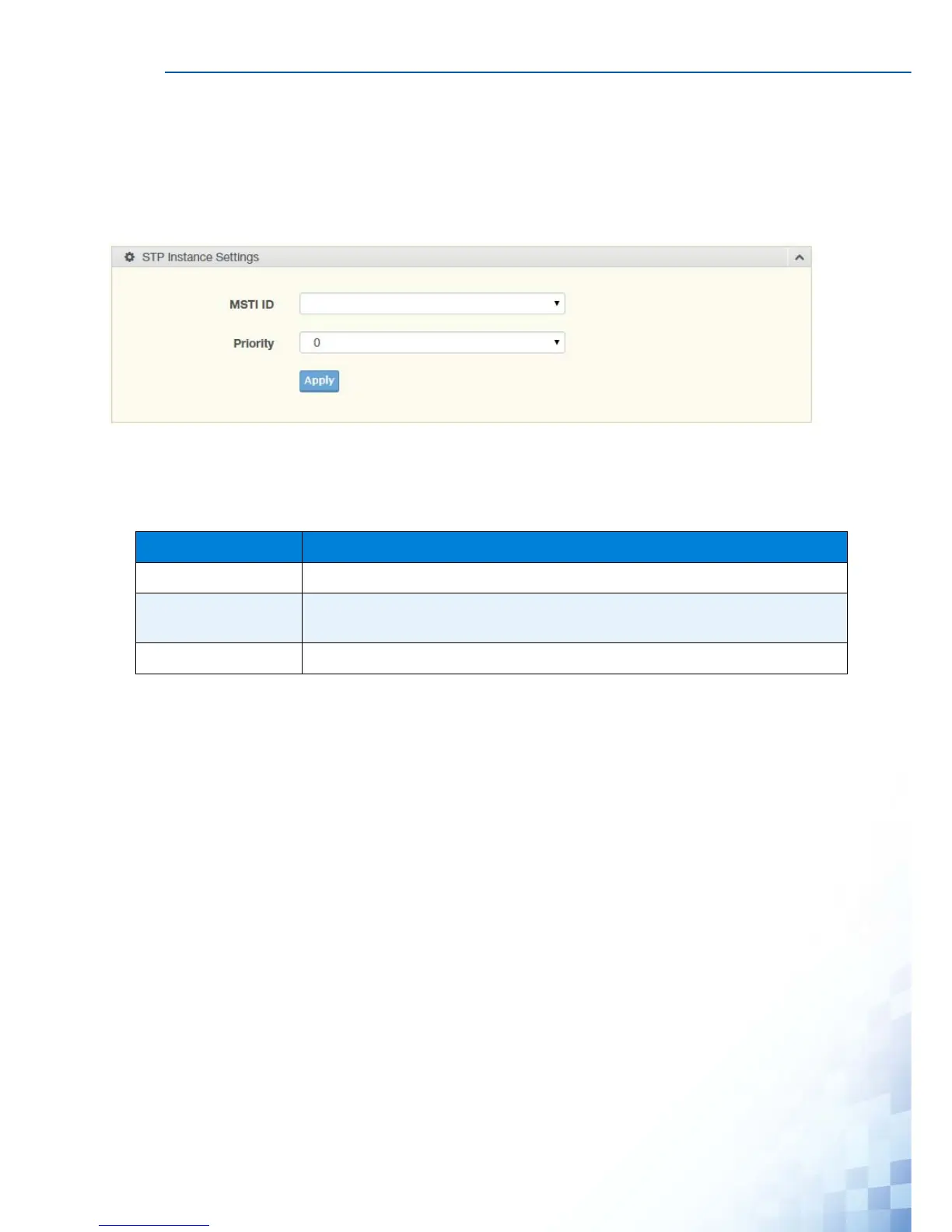

Figure 4-44. L2 Switching > Spanning Tree > MST Instance Priority Settings
The following table describes the items in the previous figure.
The ensuing table for MST Instance Priority Information settings are informational only:
MSTI ID, Priority and Action.
MST Instance Info
To access this page, click L2 Switching > Spanning Tree > MST Instance Info.
The ensuing table for STP Bridge Status settings are informational only: Bridge Identifier,
Designated Root Bridge, Root Path Cost, Designated Bridge, Root Port and TCNLast
Topology Change.
The ensuing table for STP Port Status settings are informational only: Port, Identifier
(Priority / Port Id), Path Cost Conf/Oper, Designated Root Bridge, Root Path Cost,
Designated Bridge, Edge Port Conf/Oper, P2P MAC Conf/Oper, Port Role and Port State.
STP Statistics
To access this page, click L2 Switching > Spanning Tree > STP Statistics.
The ensuing table for STP Statistics settings are informational only: Port, Configuration
BPDUs Received, TCN BPDUs Received, Configuration BPDUs Transmitted and TCN
BPDUs Transmitted.
Table 4-42. L2 Switching > Spanning Tree > MST Instance Priority Settings
Item Description
MSTI ID Click the drop-down menu to specify the MST instance.
Priority Click the drop-down menu set the bridge priority in the specified MST
instance
Apply Click Apply to save the values and update the screen.
