R3131 Spectrum Analyzer Operation Manual
2.2 Basic Operation
2-29Apr 10/98
Cal Sig Level ON/OFF is turned on, and the calibration signal is output.

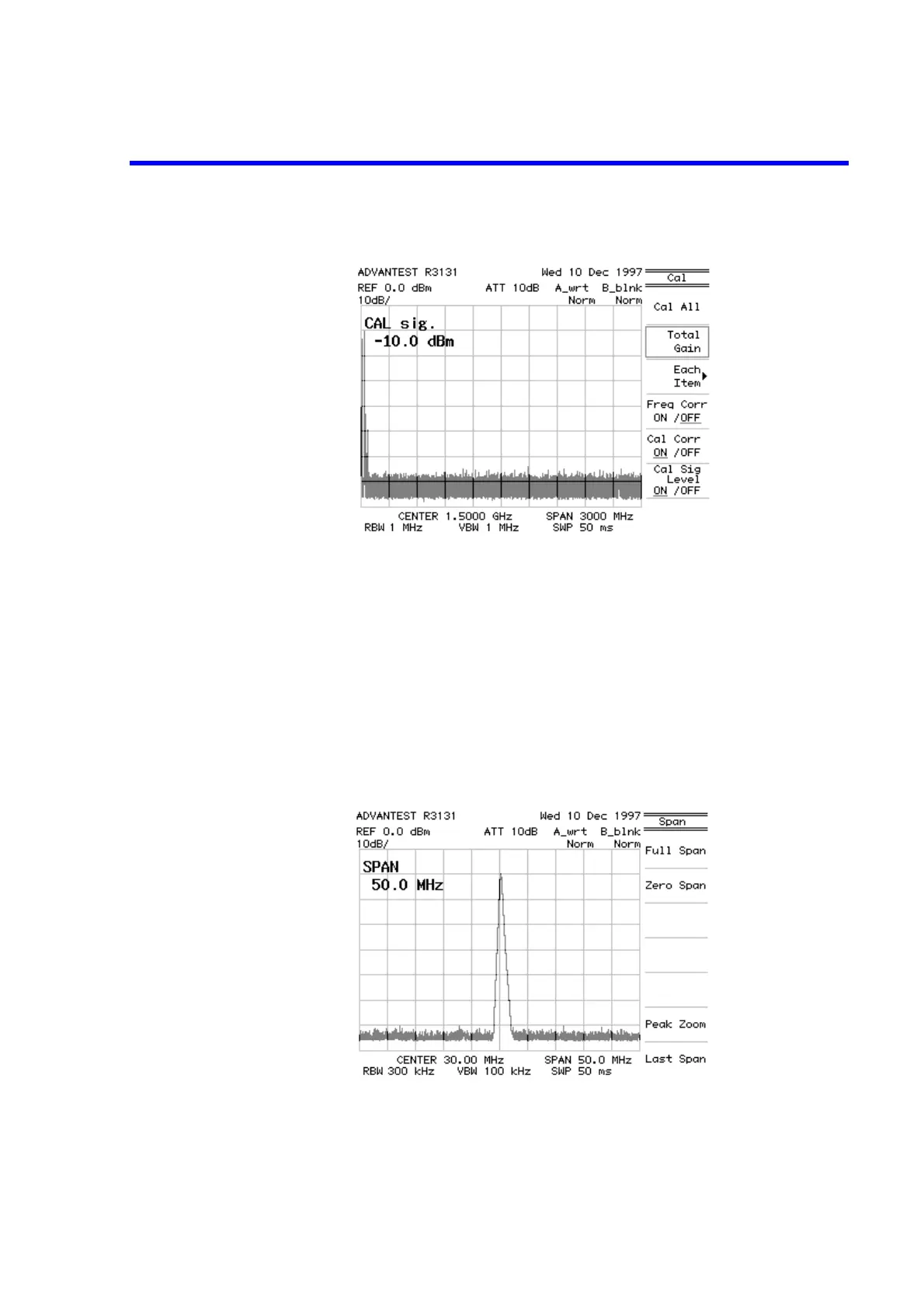

Figure 2-20 Calibration Signal Output Screen
Setting the measurement conditions
This changes the analyzer settings so that the input signal is displayed more clearly.
4. Press FREQ, 3, 0 and MHz.
A center frequency of 30 MHz is set.
5. Press SPAN, 5, 0 and MHz.
A frequency span of 50 MHz is set.
Figure 2-21 Measuring Settings Screen
