ADVANTEST R3131

R3131 Spectrum Analyzer Operation Manual
2.3 Measurement Examples
2-67Jul 10/98

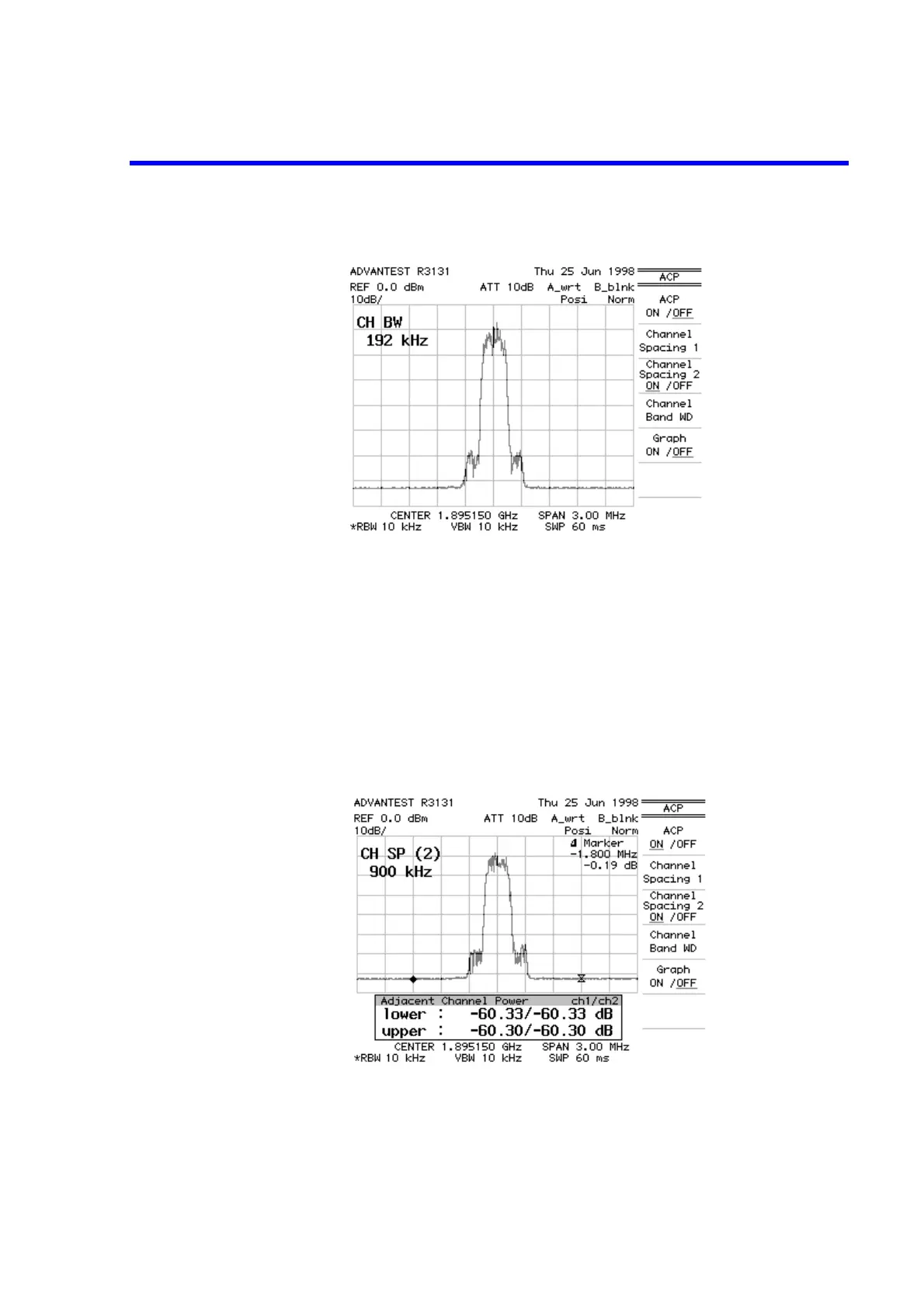

Figure 2-61 Setting the Specified Bandwidth
Performing ACP
This measures the adjacent channel leakage power.
13. Press ACP ON/OFF.
Two markers are placed on the frequencies (Channel frequency Channel
spacing) displayed on the screen, and the ratio between the upper adjacent
channel and the lower adjacent channel is displayed on the ACP window.
Figure 2-62 Measurement of the Adjacent Channel Power (ACP POINT)
±
