R3131 Spectrum Analyzer Operation Manual

4.1 GPIB Remote Programming

4-10 Dec 1/97

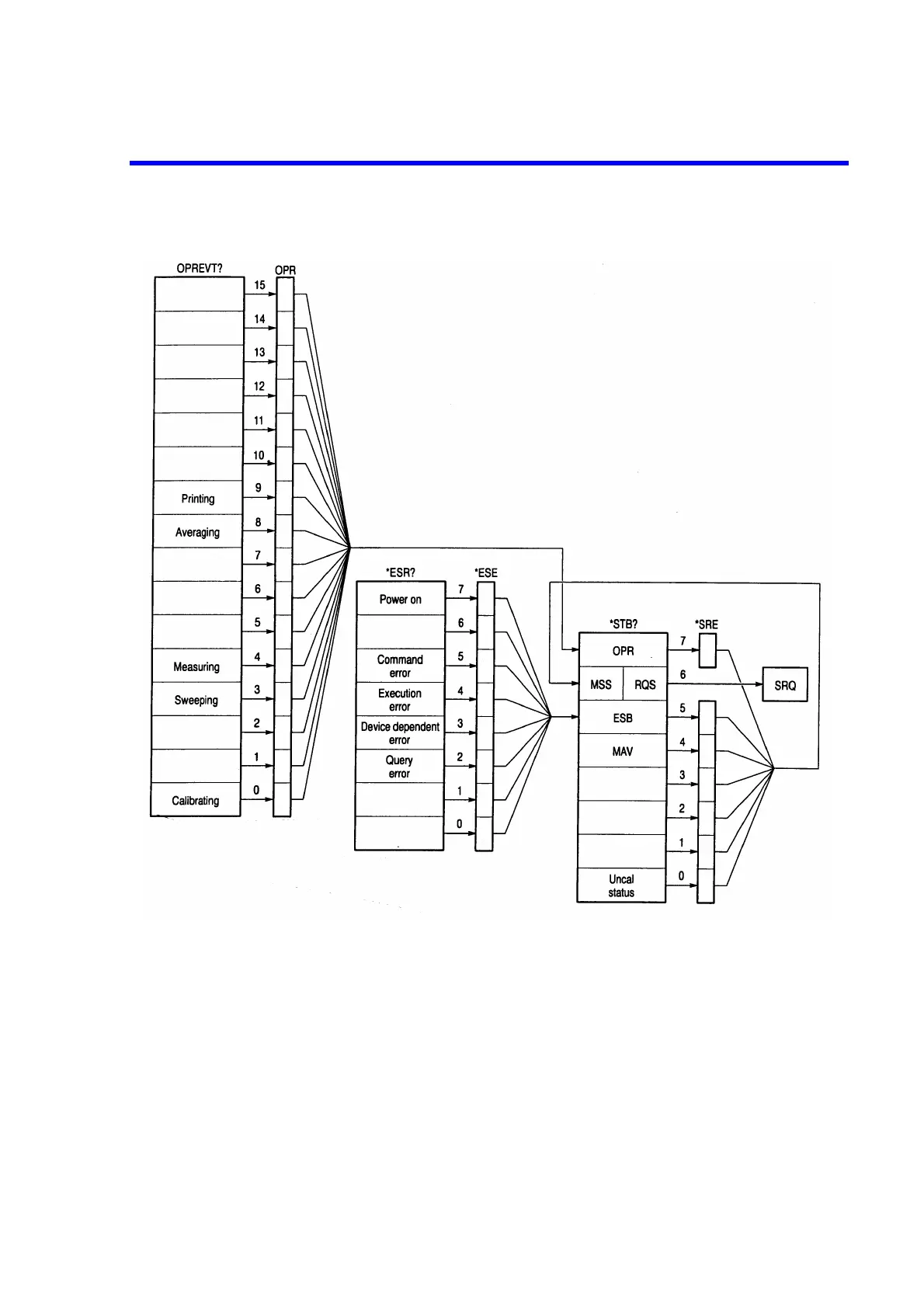

Figure 4-2 Details of the Three Status Registers

Standard event register

Status byte register

Standard operation

status register

Standard event
