R3131 Spectrum Analyzer Operation Manual
2.2 Basic Operation
2-24 Apr 10/98
Figure 2-13 Calibration Signal Output
Setting the measurement conditions
This changes the analyzer settings so that the input signal is displayed more clearly.
4. Press FREQ, 5, 0 and MHz.
A center frequency of 50 MHz is set.
5. Press SPAN, 8, 0 and MHz.
A frequency span of 80 MHz is set.
6. Press LEVEL, 1, 0 and MHz (-dBm).
A reference level of -10 dBm is set.

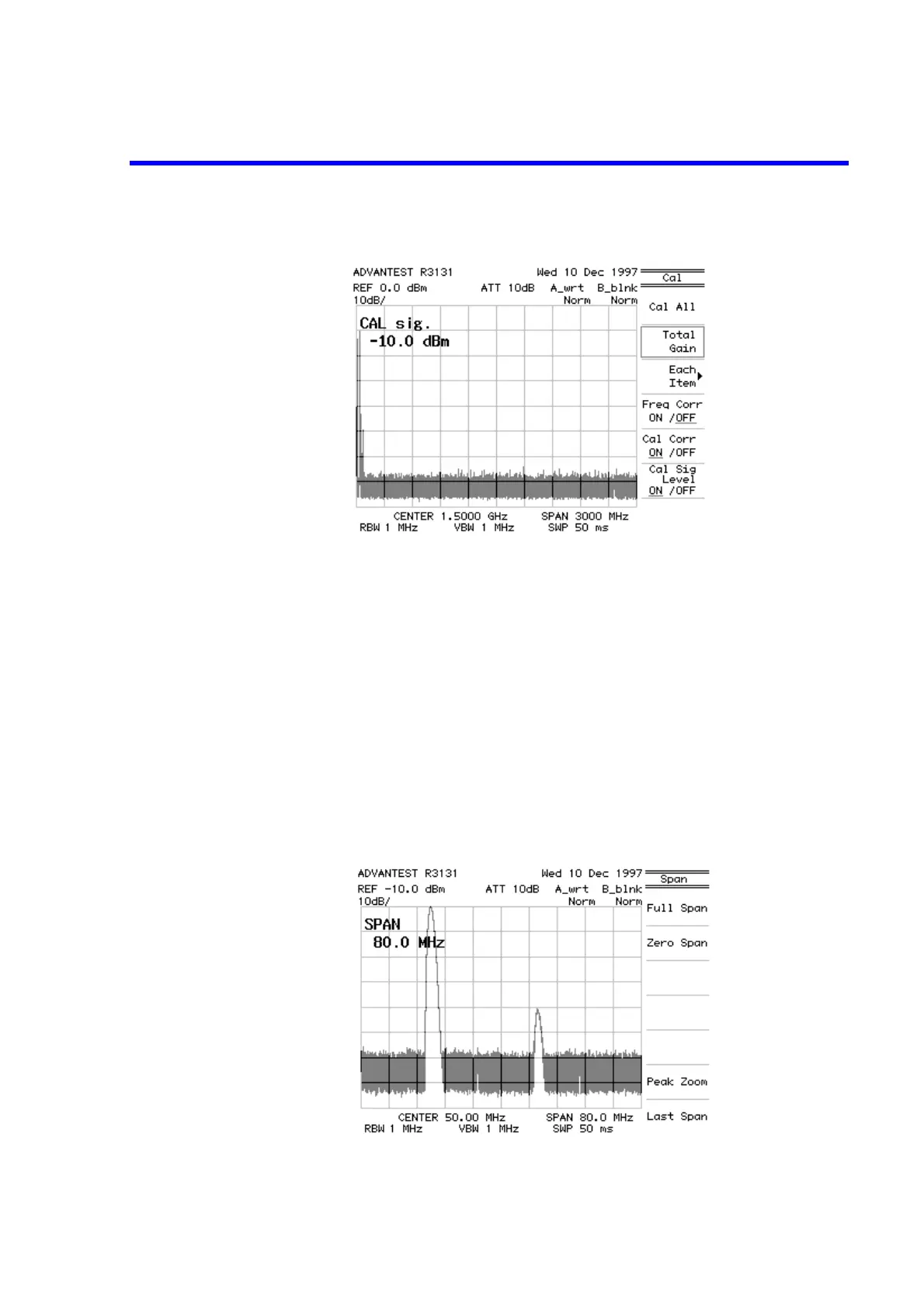

Figure 2-14 Measuring Settings Screen
